(Special hint: Except the 6S voltage monitoring function which is always enabled, there are only two spare sensor ports, one is specifically for temperature sensor, another can be any other sensor. In other words, you can only plug a temperature sensor and one any other sensor simultaneously, for example, temp. + GPS, or temp. + current, or temp. + RPM etc.
1. 2.4G real-time data collection and transmission, transmission distance is > 300 meters. 2. Model of the battery voltage real-time acquisition, storage, analysis, voice broadcast. 3. Two temperature sensors, It will be voice alarm if the temperature exceeds the set safety , and temperature alarm can be set accordingly. 4. Model discharge current sensor, the sensor internal resistance is approximately 0.002 ohms (the test current is 50A). 5. infrared photoelectric rotating speed sensor, 60000 RPM maximum test range. 6. Model aircraft lost track, search, search range > 80 meters. 7. Motor rotate speed, KV value test. 8. Model battery discharge characteristics, test of internal resistance, C value ,discharge current. 9. Model battery discharge voltage, current, temperature curve data storage, view and analysis. 10. Model battery discharge statistics. 11.GPS ....
Specifications:

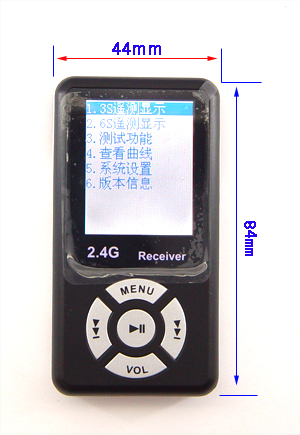

Hardware: 1. 2.4G receiving host, all the functions of information reception, processing, display. 2. 2.4G transmitter, model voltage, temperature collector, voltage test precision is 0.01V, error is 0.5%. 3. Model current collection sensor, test precision is 50mA, 1% error. 4． Infrared photoelectric speed sensor, the test error is 0.2%. 5. 2 temperature sensor, the test precison is 1 ℃, error about 1.5%.
Includes/Requires:
Includes: 1 x data receiving unit 1 x data transmitting unit 1 x GPS module 1 x RPM sensor 1 x current sensor 1 x temperature sensor (2 ways) 1 x AC power adaptor 1 x USB cable 1 x manual 1 x receiving unit battery
Hint: 1. Voice prompt only available in Chinese language currently. 2. The manual language is switchable between Chinese and English. 3. The GPS requires the power input should be no lower than 3S Lipo.
Customer Reviews:

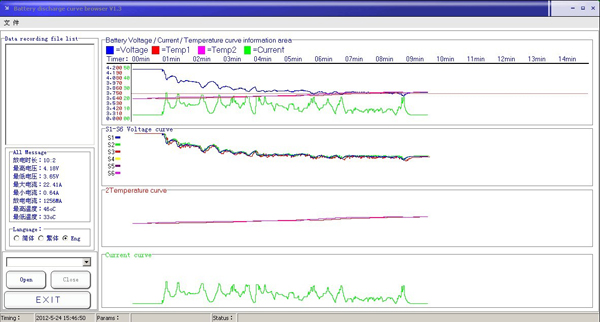

Average Customer Review: 3 customer review(s).[Write a review/question]
F****enheit-145
Grade: Next comment from my side:
About the Drivers for Downloading some Curves you should go there:
http://www.jcxjcx.com/ there you can find the USB>>>Serial Driver and the Model Curve Browser V1.3.
If you need the Driver for WIN7 you need follow Link:
https://s3.amazonaws.com/plugable/bin/PL2303_Prolific_DriverInstaller_v1.7.0.zip
This is the discription:
•Installer version v1.7.0; Build date: 2012-08-01
•Windows 2000/XP/Server2003 (32 October 17 2012 Was this review helpful to you? Yes [ 1 ]
No [ 0 ] [Reply this review]
Discussion of this review:
http://www.fahrenheit145.net/DIV/2.4GhzDatalogger/2.4ghz.html
for more Pictures about it...
Greeting
Peter -- Oct 23 2012 by F****enheit-145
One Tip more:
If you have LiFePo´s you need more than 3S(minimum4S!!)if you need the GPS-Data´s.The Voltage from LiFePo´s drop so much(some time lower than 2V/Cell!!)so the GPS-Reading and also the 2.4Ghz-Signal going LOST some time.If you want it only as a GPS take a small 3S LiPo(near 300mA/h is OK)and put it in your Model.
Peter -- Oct 23 2012 by F****enheit-145
F****enheit-145
Grade: We have tested it now 3 times in different Boats(only the Temperatur and the GPS NOT the RPM!!)and we are happy about it!!!The GPS is verry fast and exact,also the Voltage has no drop between my measurement.The distance is near 500m with Closed Boat.I can give 5 Stars October 04 2012 Was this review helpful to you? Yes [ 1 ]
No [ 0 ] [Reply this review]
F****enheit-145
Grade: To change the Language you must push ""menue""than ENTER,enter again,to last Point down and enter you have English now!!
Greeting from Vienna Austria
Peter September 17 2012 Was this review helpful to you? Yes [ 2 ]
No [ 0 ] [Reply this review]
Discussion of this review:
Sorry forgot the 1st Point:
switch on on right side
after this press MENUE
after this press vol 4 times>>ENTER
ENTER again>>down with "VOL" to the last point than ENTER
now he writes """reset"""
after this you are in Menue in English -- Sep 17 2012 by F****enheit-145
