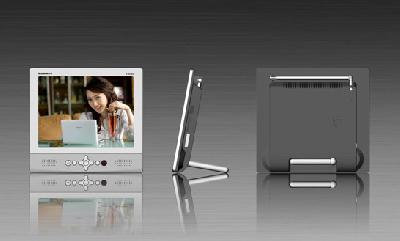

8 inch 800x600 Resolution TFT LCD TV (AV+TV+VGA 3-in-1)

- 8 inch TFT LCD panel, 800 x 600 resolutions
- Receive full-channel TV programs
- TV/Video/YPbPr/VGA automatic switchable & custom monitor mode
- Support VGA input to turn this TV into a computer monitor
- Full function IR remote control & Chinese/English OSD menu
- Timer to turn on/off (activated in standby mode)
- Horizontal or vertical picture reversal
- built-in speaker

Power input: DC 12V/ 400mA
Screen size: 8 inch, 4:3
TV video format: PAL + SECAM (this version does not support NTSC format)
Signal input:
Video input:1Vp-p CVBS , one-AV channel, YPbPr+ three_AV channel input
VGA input: 640x 480 60hz/ 800x 600 60Hz/ 1024 x 768 60Hz
Screen resolution: 800x 600
Visible area: 162（W）x 121.5（H）mm
Size: 192 x 182 x 27.3 mm
Weight: 450g

* There are two different colors, Silver and Black, we will send in random based on the stock availability.
* This monitor does NOT support NTSC TV format.
* The manual supplied with the product may not match the specific type of this product, it happens that the manufacturer may use a general version manual for many different version products, so in this case, you may find there are many discrepancies on the manual, please disregard those discrepancies in this case.

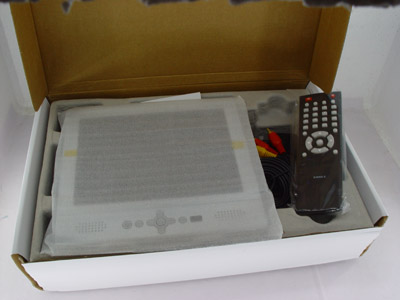

Includes:
1 x TV
1 x A/V input cable
1 x 240V AC adaptor (EU standard)
1 x remote controller

Average Customer Review: 5 stars

2 customer review(s). [Write a review/question]

AW2070

Grade:

Recieved the LCD TV unit in 5 day via Fed-Ex and would be using in the field for FPV. Tested the TV function - Works very well outdoors, indoors a little less sensitive with some channels not showing at all. No signal on the composite input will give blue screen however yet to test it out with the video receiver and the tx cam. overall very good, clear colors and stable picture. Am very pleased with the unit. Light and runs off the lead acid 12volt battery just fine for what i planned to use it for in the flying field

cheers Aylwin
August 13 2013 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

V****ciraptor
STD member

Question :
What about blue screen? Anyone has tested?
January 07 2013 Was this question helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this question]
