Features:

- Aluminum case, better heat emission.
- Compact size, Light weight, 16g only, suit for DJI Phantom series or similar size multicopters.
- No antenna protection: the module will not burned out when antenna is not connected (not like previous conventional TXs which may burn out the module when antenna is not properly installed)

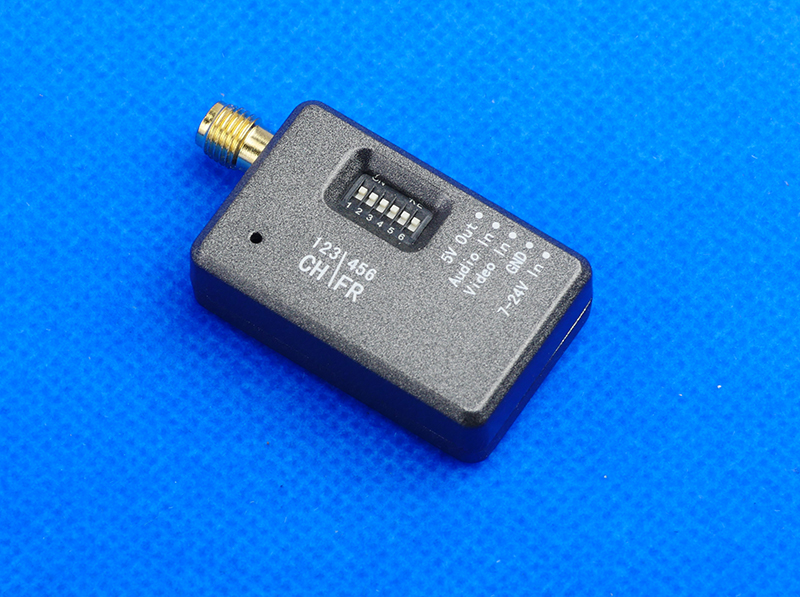

Aluminum Case 5.8G 600mW 32Ch A/V Mini Transmitting (TX) Module

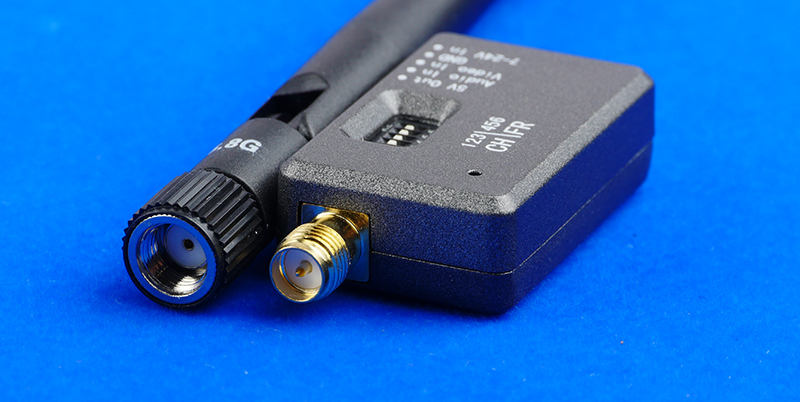

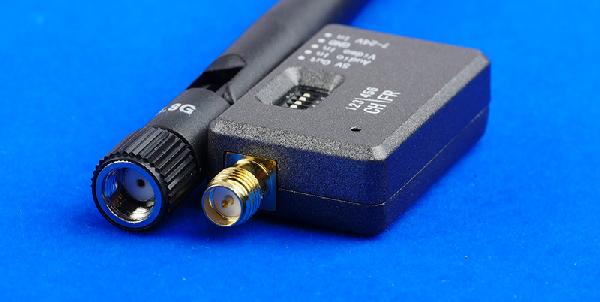

Antenna connection: RP-SMA, jack (module side ) See connector type diagram
Power input: 7-24V  (3S recommended)
Working current: 190mA (@12V) ;
Channel number: 32
Dimension: 36 x 23 x 11mm (excluding antenna)
Net weight: 16g (without antenna); 26g (with antenna)

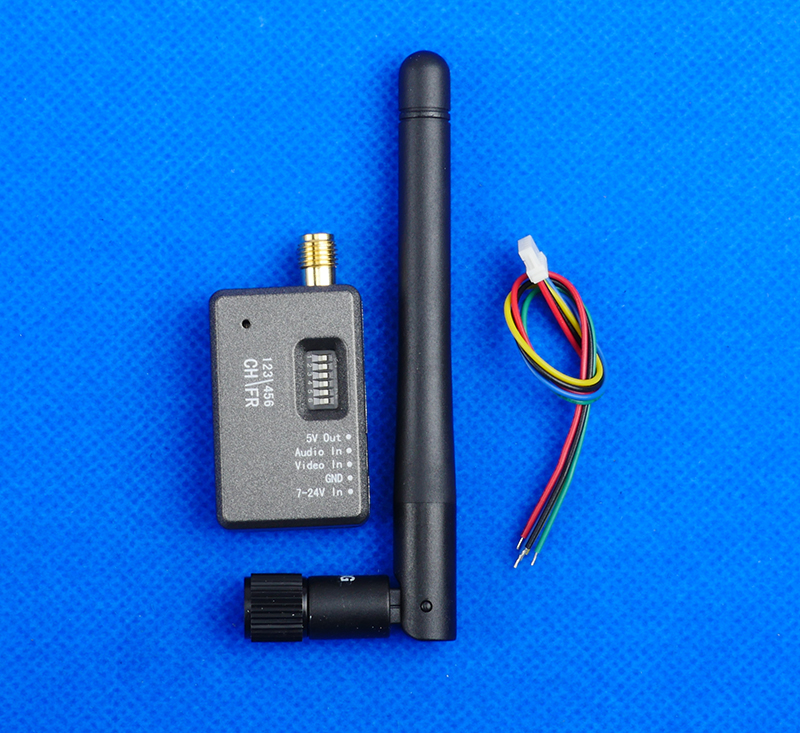

Includes:
1 x transmitting unit (TX)
1 x antenna
1 x wire


Requires:
1 x receiver (RX)
