   FPV/ Aerial Photography Gimbal/ Gimbal Controller etc. DJI Ronin-MX 3-AXIS STABILIZED HANDHELD GIMBAL Stabilizer
SKU:  DJI-RONINM
Spare/Optional Parts
Browse DJI

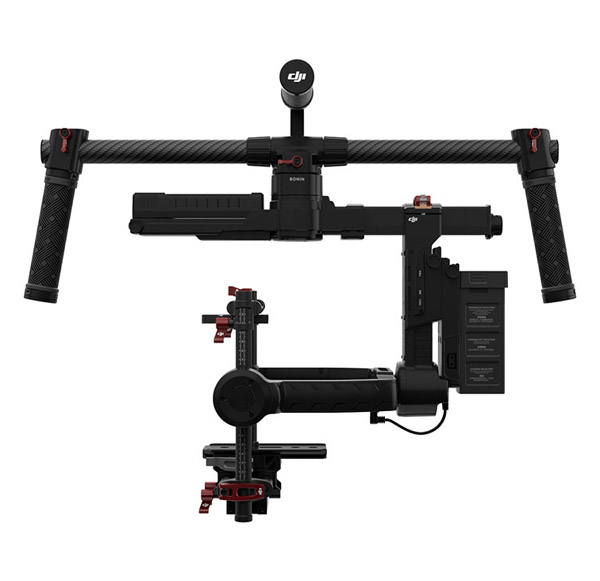

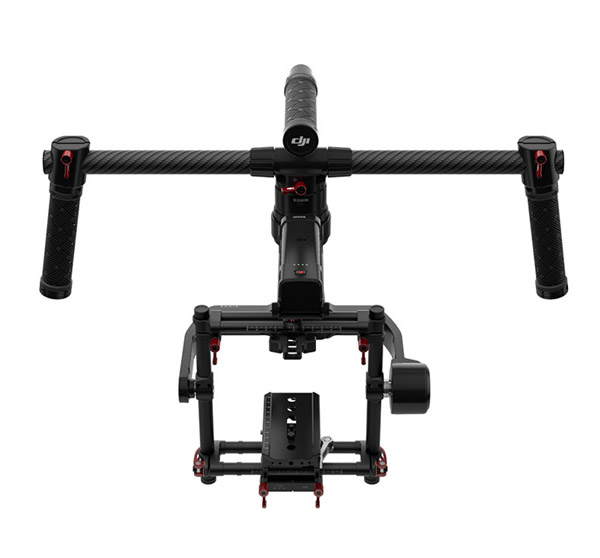

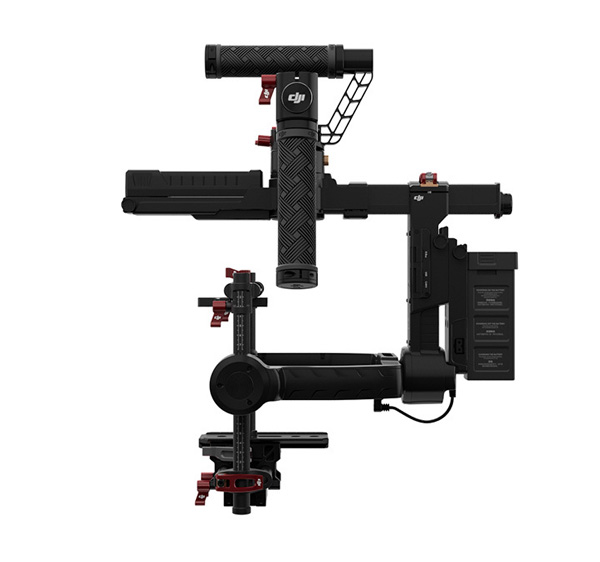

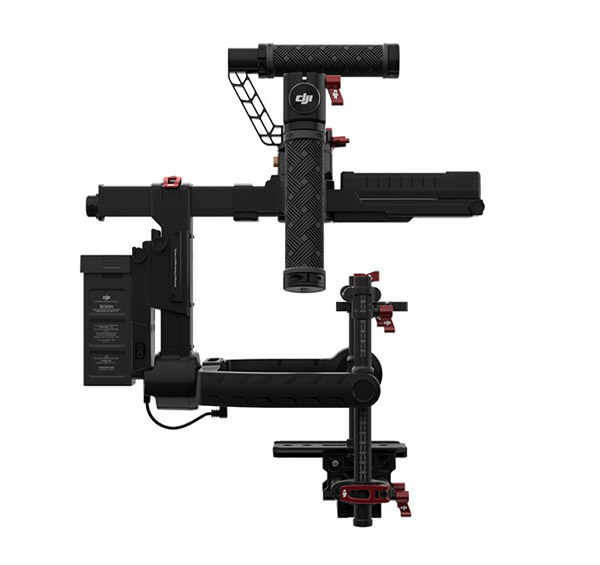

DJI Ronin-MX 3-AXIS STABILIZED HANDHELD GIMBAL Stabilizer
Customers rating.
Add To Wish List
Added:2016/07/16
Updated:2016/07/16
Follow Us on:


  Tags: DJI Ronin-MX 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM

Features:

DJI RONI-MX 3-Axis Camera Gimbal Stabilizer Handheld Steadycam System


PRODUCT FEATURES
Compatible with DJI M600


Supports RED EPIC, ARRI ALEXA Mini, BMCC and more cameras


Designed for stability in high G-force environment


5 minute set-up


Professional 3-axis handheld stabilization


3 modes of operation: Upright, Underslung, Briefcase


Auto Tune Stability (ATS) for rapid balancing


SmoothTrack™ movement smoothing


Note: When mounting the Ronin-MX to the M600, SRW-60G (coming soon) is needed for video transmission. Please purchase individually.


Specifications:

 DJI Ronin-MX 3-AXIS STABILIZED HANDHELD GIMBAL Stabilizer

GENERAL

Built-In Functions
  1. Operation Modes
    -Underslung Mode
    -Upright Mode
    -Briefcase Mode
    -Aerial Mode
    -Jib or Wirecam Mode
  2. Built-in, independent IMU module
  3. DJI Specialized Gimbal Drive Motors with Encoders
  4. Bluetooth Module
  5. USB Connection
  6. 2.4GHz Receiver
  7. Temperature Sensor
  8. DJI Advanced 32-Bit DSP Processor
  9. D-Bus Receiver Supported

MECHANICAL & ELECTRICAL CHARACTERISTICS

Working CurrentStatic current: 300mA (@16V)
Dynamic current: 600mA (@16V)
Locked motor current: Max 10A (@16V)
Operating Temperature5° F ~ 120° F (-15° C ~ 50° C)
WeightIncluding handle bar: 6.11 lb (2.77 kg)
Including vibration absorber: 4.74 lb (2.15 kg)
Gimbal DimensionsExcluding handle bar :
280 mm (W) x 370 mm (D)x 340 mm (H)
Including handle bar :
560 mm (W) x 370 mm (D) x 440 mm (H)

PERIPHERAL

Camera Tray DimensionsMaximum depth from the center of gravity on camera base plate: 120mm
Maximum height measured from top of camera base plate: 195mm
Maximum width: 160mm
Accessory Power Connections12V Regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power4S Ronin-M Battery
Connections2.4GHz Remote Controller, Bluetooth 4.0, USB 2.0
PC Assistant Software RequirementsWindows XP or above; Mac OS X 10.9 or above
Mobile Assistant Software RequirementsiOS 7.1 or above; Android 4.3 or above

WORKING PERFORMANCE

Load Weight (Reference Value)10 lb (4.5 kg)
Angular Vibration Range± 0.02°
Maximum Controlled Rotation SpeedPan axis: 200°/s
Tilt axis: 100°/s
Roll axis: 30°/s
Mechanical Endpoint RangePan axis control: 360°
Tilt axis control: +270° to -150°
Roll axis control: ± 110°
Controlled Rotation RangePan axis control: 360°
Tilt axis control: +45° to -135°
Roll axis control: ± 25°
Includes/Requires:
Includes:
1x  DJI Ronin-MX 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM
