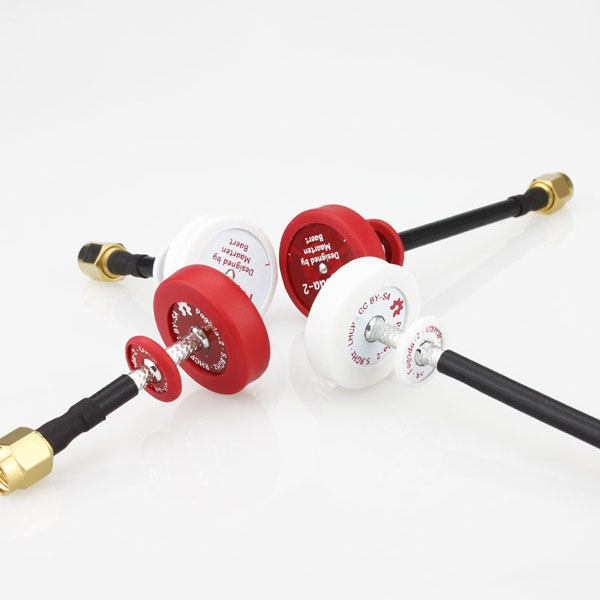

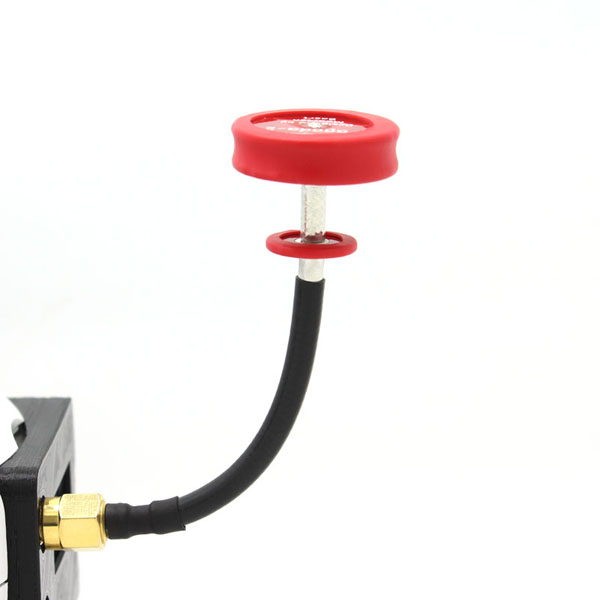

EMAX 5.8G Pagoda II RHCP FPV TX/RX Antennas SMA - 80mm
Customers rating.
Add To Wish List
Added:2018/03/07
Updated:2018/03/07
Follow Us on:


  Tags: EMAX 5.8G Pagoda II RHCP FPV TX/RX Antennas SMA

Specifications:

EMAX 5.8G Pagoda II RHCP  FPV TX/RX Antennas SMA - 80mm


Brand: Emax
Item Name: Pagoda 2 Antenna
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Gain : 2dBi
Radiation efficiency: 95%
Polarization: RHCP(Red)
Connector: SMA, Plug Refer to here for connector type diagram
Length: 80mm
Weight 8g

Includes/Requires:
Included :
2 X 80mm Pagoda 2 Antennas

(a pair of same length)
