   FPV/ Aerial Photography Video TX/RX & Accy. FPV 5.8G 200mW A/V Transmitting/receiving System | RP-SMA, jack
SKU:  FV5802
FPV 5.8G 200mW A/V Transmitting/receiving System | RP-SMA, jack
Customers rating.
Add To Wish List
Bookmark and Share
Added:2010/05/12
Updated:2013/04/07
Follow Us on:

8F1V67619798

PRICE(USD):
    $27.13   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: video recording system  FPV  telemetry system  RC305

Choose other components to build your saving combo:

Features:
FPV 5.8G 200mW A/V Transmitting/receiving System, a good choice for avoiding interference for customers using 2.4G radio system.

Specifications:
FPV 5.8G 200mW A/V Transmitting/receiving System
Transmitting unit weight: 34.5g
Power input: 12V ± 5%
Receiving current: 100mA
Transmitting current: 100mA
Transmitter Channel number: 8-ch
Receiver channel number: 4-ch
Antenna gain: 3db
Video signal resistance: 75Ω
Antenna connection:  RP-SMA  jack (both TX/RX modules, module side)   Refer to here for connector type diagram

Details of channel frequencies of the transmitter:
CH1: 5705 CH2:5685
CH3:5665 CH4:5645
CH5:5885 CH6:5905
CH7:5925 CH8:5945

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

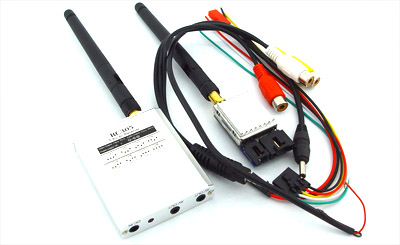

Includes/Requires:
Includes:
1 x transmitting unit

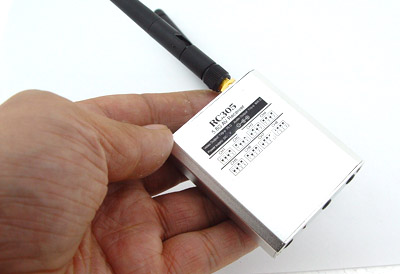

1 x receiving unit (RC305)

* No instruction manual supplied with this product.
Customer Reviews:
Average Customer Review: 4.5 stars   11 customer review(s).   [Write a review/question]

M****Aurel
Grade:
Buy or make CloverLeaf antennas, is best idea for this system, here is build video guide:
http://www.youtube.com/watch?v=FcAqiIKO2XI
November 28 2012     Was this review helpful to you?   Yes [ 1 ]   No [ 1 ]    [Reply this review]


b****seg
Grade:
ottimo kit
May 09 2012     Was this review helpful to you?   Yes [ 0 ]   No [ 1 ]    [Reply this review]


o****ier30900
Grade:
J'ai laissé tomber ce système, portée réduite à 400/500m maxi.
En 1.3GHz Range Vidéo j'ai mes km sans soucis.
March 11 2011     Was this review helpful to you?   Yes [ 0 ]   No [ 1 ]    [Reply this review]


b****
Grade:
Bonjour
pouvez vous m informer sur le model de lipo pour FPV 5.8G 200mW A/V Transmitting/receiving System

Merci bsbs
March 06 2011     Was this review helpful to you?   Yes [ 0 ]   No [ 1 ]    [Reply this review]


b****pson
Grade:
I have just finished an FPV flight up to 2Km from the launch-point using this system, with the addition of the 5dB antenna sold by HiModel for the receiver and the system worked extremely well. To see footage of the system in action check out my review video at: http://www.youtube.com/watch?v=rxaw6db0vvM which shows the system still working well at 1.7Kms from the launch point. Top product and top-service from HiModel.
February 21 2011     Was this review helpful to you?   Yes [ 2 ]   No [ 1 ]    [Reply this review]


a****ineor
Grade:
tres content de cette ensemble,une bonne portée pour un petit prix,la portée et d environ 800 a 1000 métres avec antenne normale,j ai pas essayé avec une patch....
l ensemble est vraiment de qualité
January 02 2011     Was this review helpful to you?   Yes [ 0 ]   No [ 1 ]    [Reply this review]
Discussion of this review:

Salut, tu utilises quelles lipo pour l'émetteur et le récepteur ? Merci !
-- Jan 20 2011 by f****lone


t****yesv
Grade:
Video tx-rx range with tuned GP antenna 2200m !!(not with original antenna!)and way no end, because the battery was low therefore had to go home.
Highly recommended and best price on the net!!
November 15 2010     Was this review helpful to you?   Yes [ 5 ]   No [ 1 ]    [Reply this review]


i****us
Grade:
I m not lucky, my TX doesn't work well, only 50m range and nothing can move. I have tryed all the possibles channels.. but nothing better.
A friend test his TX (the same than this one) on my receiver, and it works great.
So, now, i have to test the HI MODEL return service and hope to receive a good tx
September 18 2010     Was this review helpful to you?   Yes [ 2 ]   No [ 1 ]    [Reply this review]


b****y
Grade:
I found this combo works so great I ordered another one.
Less video drop outs that on 2,4ghz
Highly recommended and best price on the net!
July 19 2010     Was this review helpful to you?   Yes [ 3 ]   No [ 0 ]    [Reply this review]


b****y
Grade:
Good build quality, easy to operate.
Range with stock antenna 1000 meters
Adding a 8dbi panel antenna on the receiver end will double the distance.
June 25 2010     Was this review helpful to you?   Yes [ 5 ]   No [ 0 ]    [Reply this review]
Discussion of this review:

FPV footage using the 5.8ghz a/v combo.
http://youtu.be/vKom1KoPmVw

-- Nov 22 2010 by b****y
