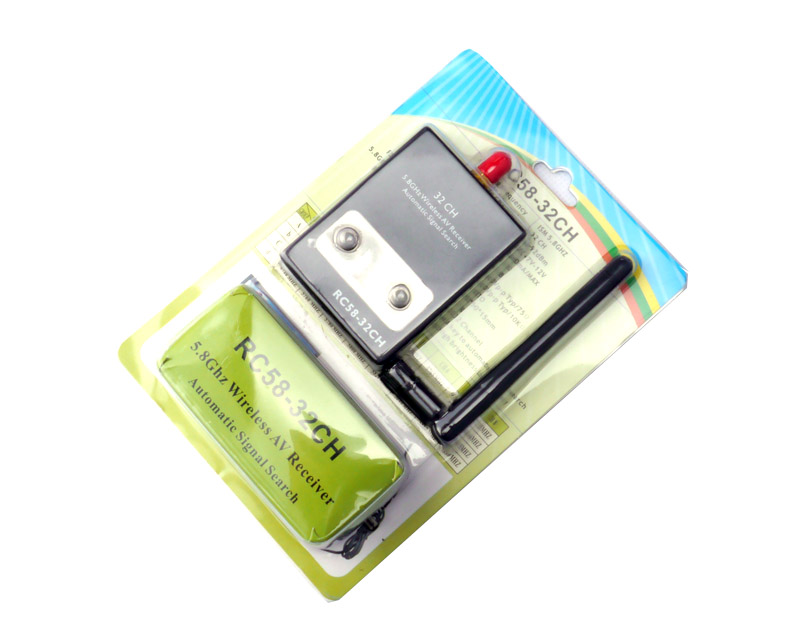

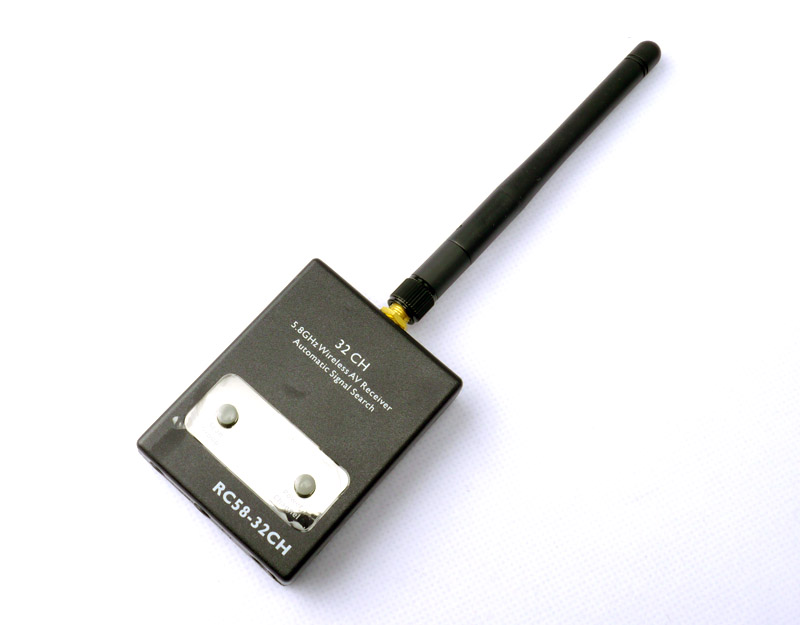

FPV 5.8G 32CH Auto-scan A/V Receiver (RX) RC58-32CH

FPV 5.8G 32CH Auto-scan A/V Receiver (RX) RC58-32CH - SMA, jack

Special Features:

Auto-scan by one touch, 32ch working channels.

FPV 5.8G 32CH Auto-scan A/V Receiver (RX) RC58-32CH - SMA, jack

Video format supported: NTSC/PAL/SECAM (Auto)
Antenna connection: SMA, jack (module side ) See connector type diagram
Power input: 12V / 200mA (3S Lipo suggested)
Video output: 75Ω/1Vpp
Audio output: 10KΩ/1Vpp
Dimension: 60 x 50 x 15mm

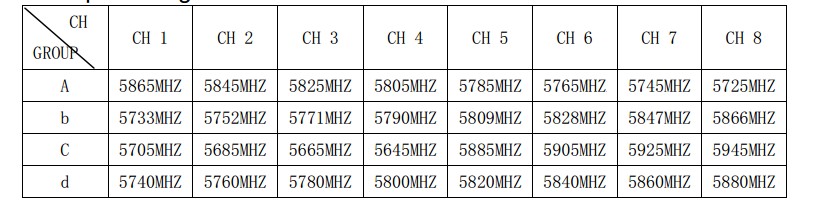

Working frequencies:

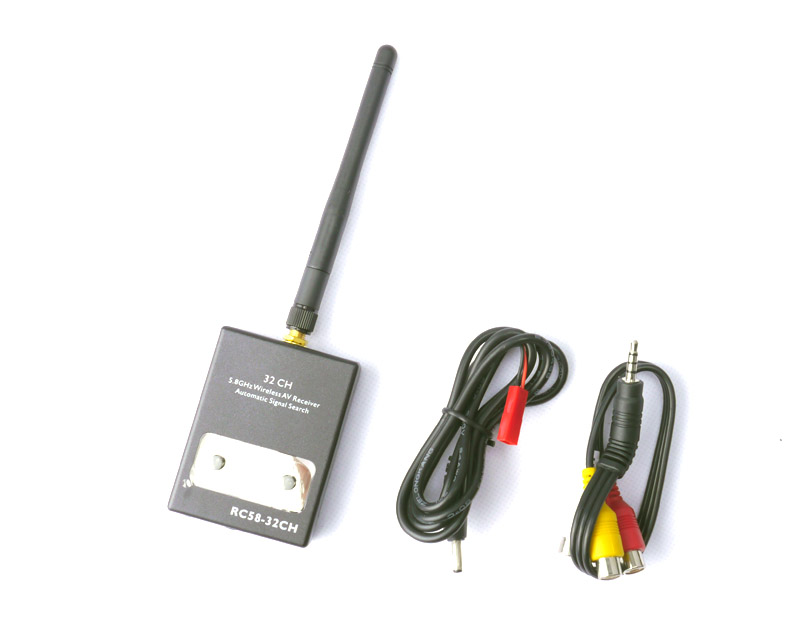

Includes:
1 x receiver (RX)
1 x antennas (2db)
1 x power wire

Requires:
1 x transmitter (TX)

Average Customer Review: 5 stars

1 customer review(s). [Write a review/question]

narpat00****oo.com
Silver member

Grade:

Excellent receiver, works very well with all the 5.8GHz video transmitters.
January 05 2014 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

Discussion of this review:

Don't be foolish dead product if no LED glows !
Hey you have to continuously press the power button (Right side button) for two seconds and then display come.

Switch on your 5.8GHZ video transmitter with camera connected and then at the receiver side press the left button continuous for 2-3 seconds until the display starts showing as if it is scanning various channels. The receiver will eventually
stop at some channel displaying on monitor connected, the video of the your 5.8GHz transmitter.

Cheers

NS Rana
-- Jan 05 2014 by narpat00****oo.com

Use 7.4V Lipo, the receiver will be very happily working ! Though you can hook a 11.1V Lipo as well.
-- Jan 05 2014 by narpat00****oo.com
