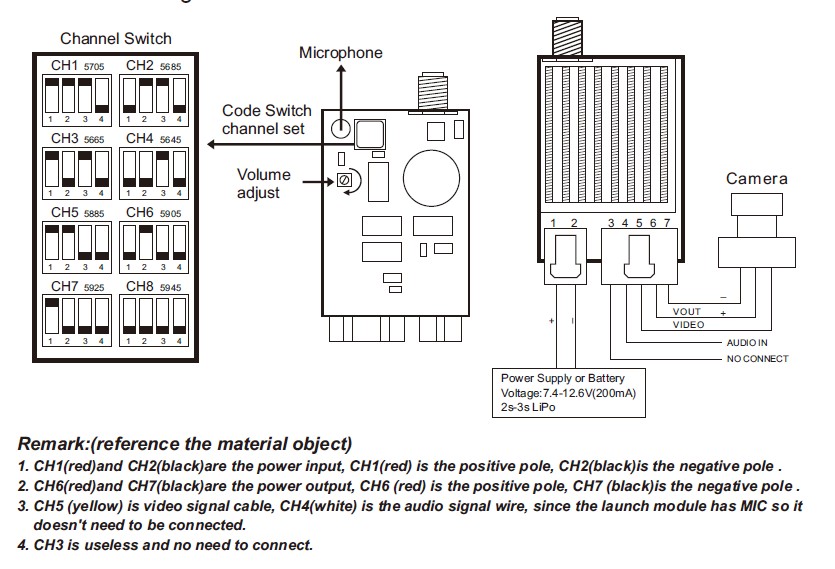

TX specs: Video Format: Pal/NTSC Output impedance: 50 Ohm Output power: 21-23 dBm Channels: 8 Transmitter operating voltage: 7.4-12.6 V DC/200mA Video bandwidth: 0-8.0 MHZ Audio input impedance: 10K/Ohm Audio input level: 0.5-2.0 Vp-p Audio frequency: 6.5 MHZ Antenna connector: RP-SMA, jack (TX side) See connector type diagram Video input level: 0.8-1.2 Vp-p Video input impedance: 75 Ohm Dimensions: 55x26x17 mm Weight: 25 g

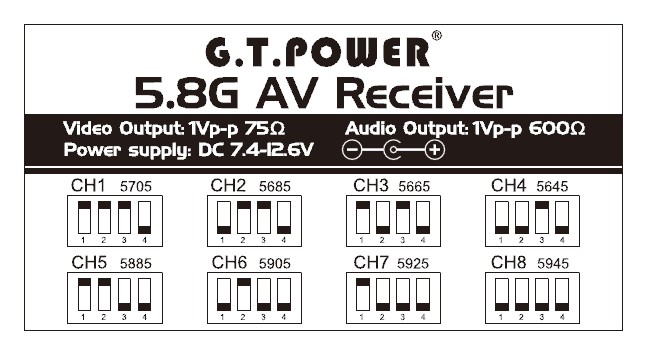

RX specs: Channels: 8 Operating temp: -10~85 ℃ Audio frequency: 6.5 MHz Video input impedance: 75 Ohm Audio input impedance: 10K/Ohm Antenna connector: RP-SMA jack (RX side) Channels 5.8G : 5705,5685,5665,5645,5885,5905,5925,5945 MHZ Receiver operating voltage: 7.4~12.6 V DC Video bandwidth: 0~8.0 MHz Video input level: 0.8~1.2 Vp-p Audio input level: 0.5~2.0 Vp-p Weight: 43 g Dimensions: 61x52x13 mm
Includes/Requires:

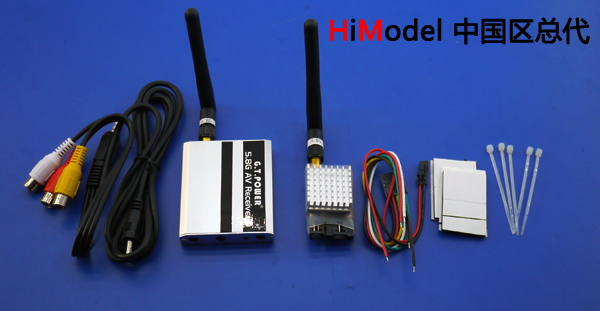

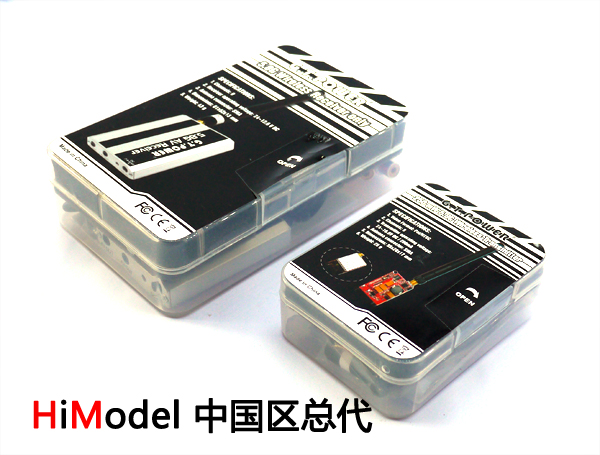

Includes: 1 x transmitting unit (TX) 1 x receiver (RX) 2 x antennas 1 x basic wires set 1 x hooking accessory bag (double-side adhensive tape, binding strips etc.)
Customer Reviews:
Average Customer Review: 1 customer review(s).[Write a review/question]
l****wings
Grade: I have just received this - appears to be a godo product, but be warned the antenna connector is RP-SMA NOT SMA.
This is a pain as ordered skew planars to go with it but they will not fit as the connection was incorrectly stated.
hence 3 stars as the description is wrong January 23 2013 Was this review helpful to you? Yes [ 6 ]
