   FPV/ Aerial Photography Telemetry/ Data logger Rlink 8-Channel Long Range UHF Receiver | New W/ SBUS Port
SKU:  RLINK8
Accessories Required
Rlink 8-Channel Long Range UHF Receiver | New W/ SBUS Port
Customers rating.
Add To Wish List
Bookmark and Share
Added:2013/12/20
Updated:2015/07/24
Follow Us on:

5R8100130036

PRICE(USD):
    $50.00   Out of Stock
Member PRICE:
    Sign in or Sign up for member price
 Notify Me When Available.     Freight Calculator
  Tags: Rlink  UHF

Specifications:

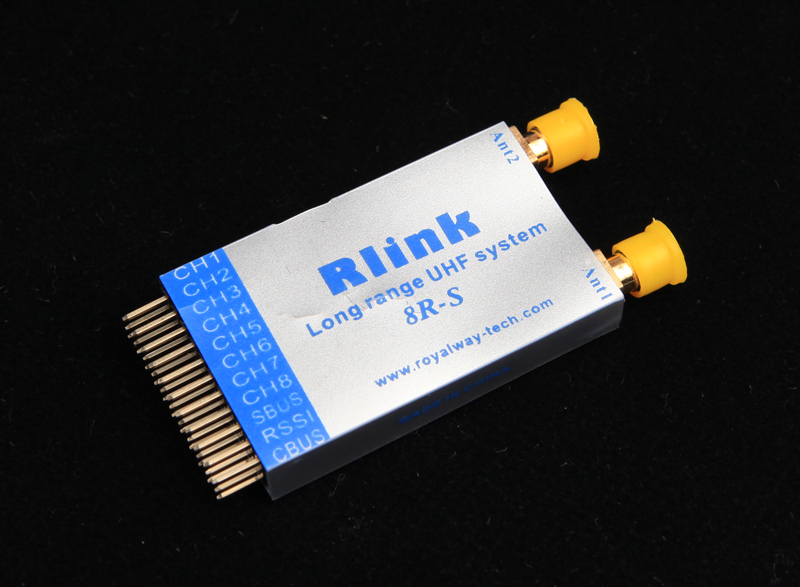

Rlink 8-Channel Long Range UHF Receiver

Size:45*30*6mm
Weight:28g (including two antennas)
Voltage:4-6v
Current:75ma@5v
Channel number: 8ch
Working frequency: UHF, 430Mhz
Parallel connection support: Yes (you can connect two receivers in parallel to make it 16-ch)
RSSI signal detect support:  Yes
Includes/Requires:
Includes:

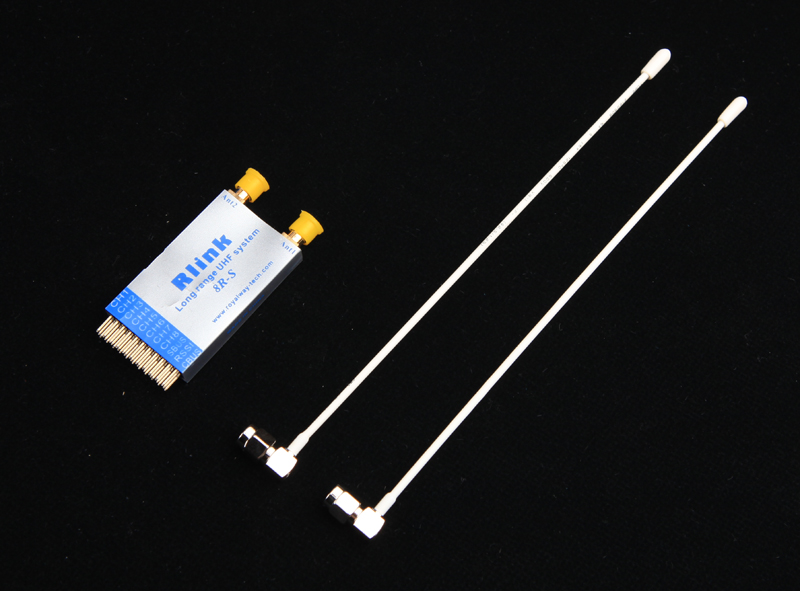

1 x RX
2 x RX antennas



Primary Additional Accessories for the completion of the Rlink 8-Channel Long Range UHF Receiver | New W/ SBUS Port
PictureStock NumberManufacturer & Product DescriptionPriceQTYSelectStock Status
Click for the detail!RLINK16MFDLink (Rlink) 16-Channel Long Range UHF System | New W/ SBUS Port $137.34Notify Me.Out of Stock
Click for the detail!UH400BKLong Antenna for Rlink UHF Receiver - SMA, plug$3.08Notify Me.Out of Stock
Click for the detail!UH400WTAntenna Set for Rlink UHF Receiver - SMA, plug (2pcs)$5.31Notify Me.Out of Stock
Customer Reviews:
Average Customer Review: 5 stars   5 customer review(s).   [Write a review/question]

B****builder
Grade:
The current manual does not cover the R8-S rx, there is no firmware on the manufacturers web site. Do not try and update this rx as you will wipe the firmware and brick it.
January 13 2015     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]
Discussion of this review:

Please supply the .bin and txt.txt files for this rx

-- Jan 13 2015 by B****builder


m****endel
Grade:
Tested distance up to 12km low and 18km high power.
Great product.

October 02 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


G****et-Geek
Grade:

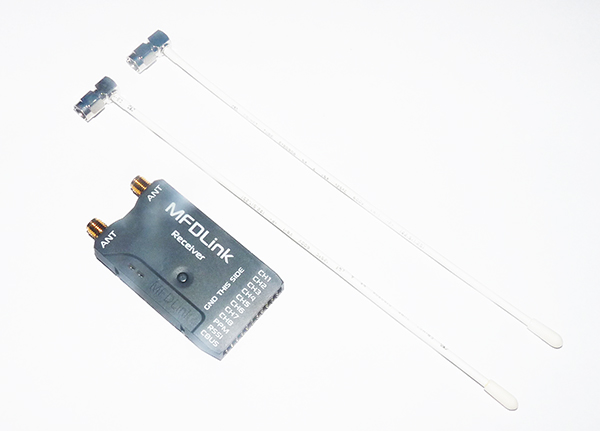

I would like to note, The antennas that come with these have a long cable now, Not like the ones in the picture. You may be able to contact them before ordering to request the shorter ones. I had no problems with the firmware but I did find out that if you use the one listed on the receivers webpage, It is older than what comes with it. You have to use the firmware that is listed for the receiver on the combo units page.
May 08 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


y****u
Grade:
Well made. Tested to a range of 5KM on low power.

DON'T even try to update firmware unless you have access to WIN XP. Simply connecting the TX or RX (with USB) to the computer will wipe out the onboard firmware - instantly without asking. You CANNOT restore the firmware unless you are running WIN XP (I tried VISTA / WIN 7 / 8 iOS). Aforesaid confirmed by manufacturer.
April 25 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


y****u
Grade:
y
April 25 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
