DJI full line products including drones, imaging products & enterprise products.
   DJI DJI Drones DJI Mavic Pro Platinum Quadcopter Drone - Standard (3-axis gimbal, 4K camera)
   Multi-rotors Kit & Frame
SKU:  DJIMAVIC-P
Browse DJI

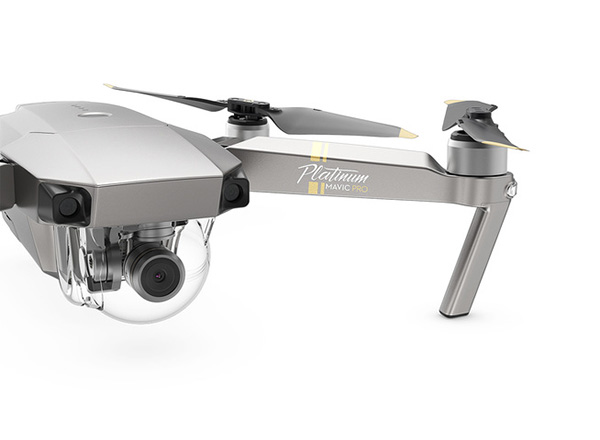

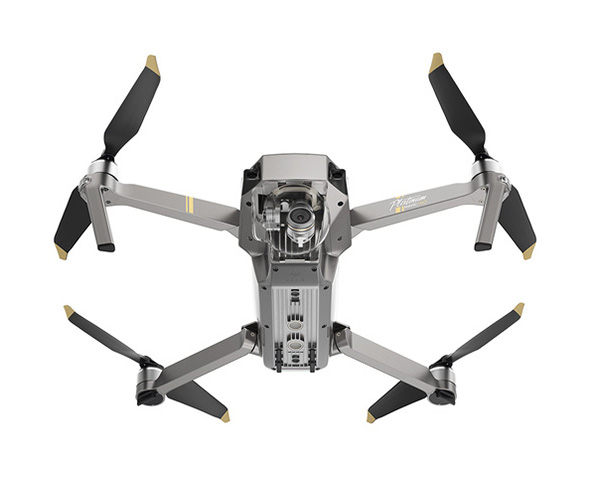

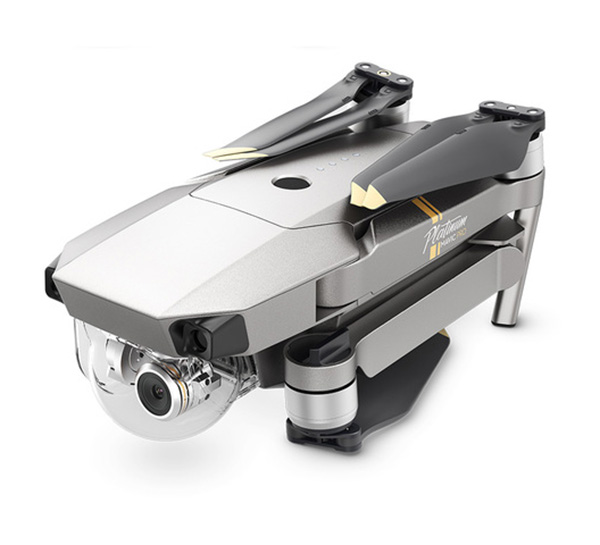

DJI Mavic Pro Platinum Quadcopter Drone - Standard (3-axis gimbal, 4K camera)
Customers rating.
Add To Wish List
Added:2017/12/18
Updated:2017/12/19
Follow Us on:


  Tags: DJI Mavic Pro Platinum Quadcopter Drone - Standard (3-axis gimbal  4K camera)

Features:
MAVICPROPLATINUM
The Mavic Pro Platinum features a sleek design and compact body that is both powerful and alluring. A new and improved 30-minute flight time coupled with 60% noise power reduction makes the Mavic Pro Platinum DJI’s best portable drone yet.

Enhanced Endurance,Quieter Flight

Aircraft noise has been reduced by up to 4dB* (60% noise power) and
extended flight time to 30 minutes with new FOC sinusoidal driver ESCs
and 8331 propellers for a quieter, more enjoyable flight experience.




With a brand-new aerodynamic design, the 8331 propellers give the Mavic Pro Platinum an impressive noise control performance,
and the new FOC ESC drivers offer sinusoidal current for increased stability.



Specifications:

DJI Mavic Pro Quadcopter Drone - Standard

AIRCRAFT

FoldedH83mm x W83mm x L198mm
Diagonal Size (Propellers Excluded)335 mm
Weight (Battery & Propellers Included)1.62 lbs (734 g) (exclude gimbal cover)
1.64 lbs (743 g) (include gimbal cover)
Max Ascent Speed16.4 ft/s (5 m/s) in Sport mode
Max Descent Speed9.8 ft/s (3 m/s)
Max Speed40 mph (65 kph) in Sport mode without wind
Max Service Ceiling Above Sea Level16404 feet (5000 m)
Max Flight Time30 minutes (no wind at a consistent 15.5 mph (25 kph))
Max Hovering Time27 minutes (no wind)
ESC(Electronic Speed Controller)FOC
Max Total Travel Distance (One Full Battery, No Wind)9.3 mi (15 km, no wind)
Operating Temperature Range32° to 104° F (0° to 40° C)
Satellite Positioning SystemsGPS / GLONASS
Hover Accuracy RangeVertical:
+/- 0.1 m (when Vision Positioning is active) or +/-0.5 m
Horizontal:
+/- 0.3 m (when Vision Positioning is active) or +/-1.5 m
Operating FrequencyFCC:
2.4-2.4835GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
CE:
2.4-2.4835GHz; 5.725-5.850 GHz
SRRC:
2.4-2.4835 GHz;5.725-5.850 GHz
Transmitter Power (EIRP)2.4GHz
FCC:<=26 dBm; CE: <=20 dBm; SRRC:<=20 dBm; MIC:<=18 dBm
5.2 GHz
FCC:<=23 dBm
5.8 GHz
FCC:<=23 dBm; CE <=13 dBm; SRRC: <=23 dBm; MIC: -

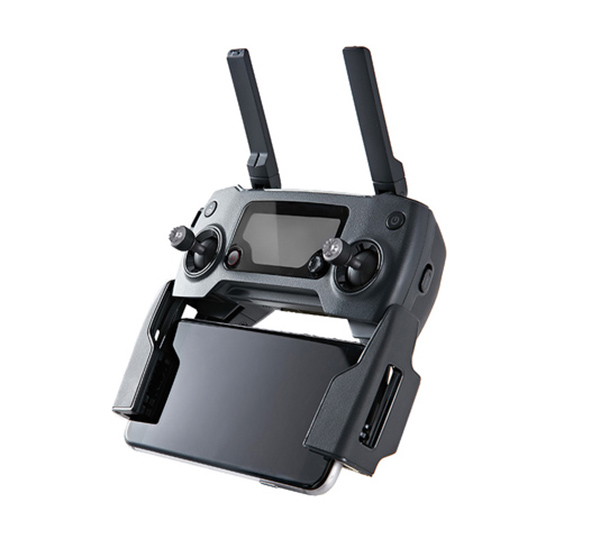

REMOTE CONTROLLER

Operating Frequency2.4 GHz to 2.483 GHz
Max Transmission DistanceFCC Compliant: 4.3 mi (7 km);
CE Compliant: 2.5 mi (4 km)
SRRC Compliant: 2.5mi (4 km)
MIC Compliant: 2.5 mi (4 km) (Unobstructed, free of interference)
Operating Temperature Range32° to 104° F ( 0° to 40° C )
Battery2970mAh
Transmitter Power (EIRP)FCC:<=26 dBm
CE:<=20 dBm
SRRC: <=20 dBm
MIC: <=18 dBm
Operating Current/Voltage950mA @ 3.7V
Supported Mobile Device SizeThickness Supported:6.5-8.5mm
Max length: 160mm
Supported USB port types: Lightning, Micro USB(Type-B),USB(Type-C)™

GIMBAL

Controllable RangePitch: -90° to +30°
Roll: 0° or 90° (Horizontally and vertically)
Stabilization3-axis (pitch, roll, yaw)

VISION SYSTEM

Vision SystemForward Vision System
Downward Vision System
Obstacle Sensory RangePrecision measurement range: 2 ft (0.7 m) to 49 ft (15 m) Detectable range: 49 ft (15 m) to 98 ft (30 m)
Operating EnvironmentSurface with clear pattern and adequate lighting (lux > 15)
Velocity Range≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground
Altitude Range1 - 43 feet (0.3 - 13 m)
Operating Range1 - 43 feet (0.3 - 13 m)

APP / LIVE VIEW

Mobile AppDJI GO 4
Live View Quality720p@30fps, 1080p@30fps(Remote Controller)
720p@30fps(Wi-Fi)
720p@60fps, 1080p@30fps(DJI Goggles)
Latency160-170ms (depending on conditions and mobile device)
Required Operating Systems
  • iOS 9.0 or later
  • Android 4.1.2 or later

Includes/Requires:
Included in the Package (Standard)
