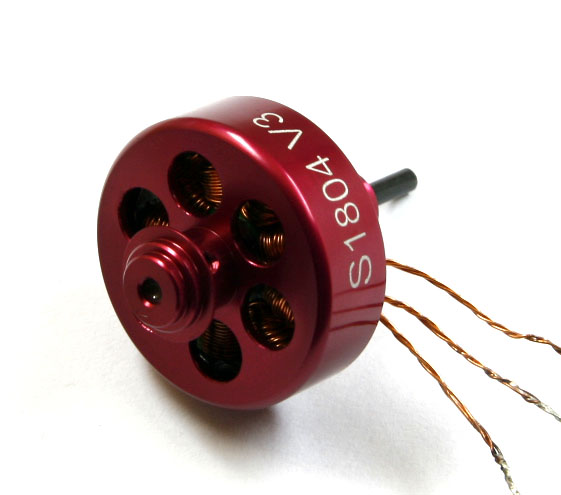

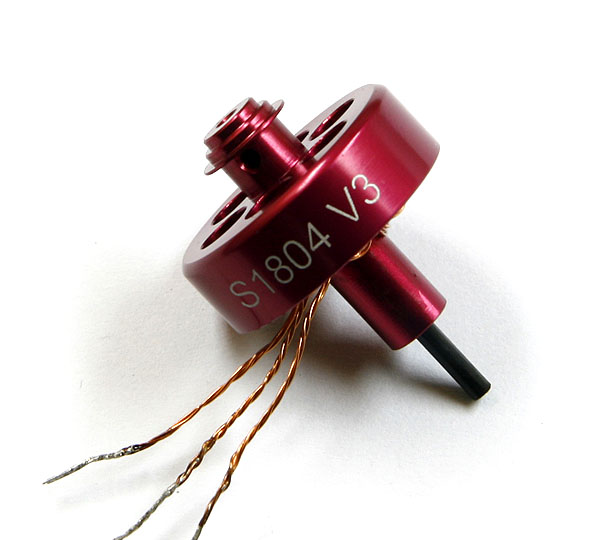

12g/ 280g Pull 2100KV S1804 V3 Competition Class Brushless Motor

12g in weight, yet can yield up to 280g thrust/pull, used by many champion of large scale competition.

* To gain the optimal performance, it is suggested to control the flight weight within 150g.

Model: S1804-V3
KV (rpm/v): 2100
Non-load current: 0.4a @ 7V
Internal resistance: 264mΩ
Lipo Battery (cell): 2S Li-poly
Weight: 12g
Shaft Diameter(mm): 2mm
Shaft length (mm): 30
Diameter x Length (mm): Φ23x23.8
suggested ESC: 10-12A
