   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner 2600KV HiModel Outrunner Brushless Motors W/ Prop adapter Type A2208/8
SKU:  220808
Browse HiModel

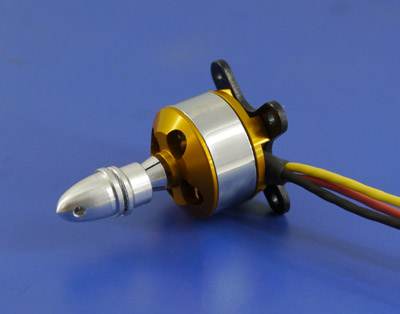

2600KV HiModel Outrunner Brushless Motors W/ Prop adapter Type A2208/8
Customers rating.
Add To Wish List
Added:2007/04/17
Updated:2012/06/13
Follow Us on:


  Tags: 2600KV  HiModel  Outrunner  Brushless  Motors  W  Prop  adapter  Type  A2208  8

Specifications:
Type: A2208/8
No. Of cells:2-3 Li-Poly, 6-8 Ni-Mh/Ni-Cd
RPM/V:2600 RMP/V
Max. efficiency:78%
Max. efficiency current:8-15A (>74%)
No load current / 10 V:1.3 A
Current capacity:20A/60 s
Internal Resistance: 62 mΩ
Dimensions:27.5x26 mm
Shaft diameter: 3.17 mm
Weight:36g /1.27 oz
Includes/Requires:
Includes:
1 x brushless motor
1 x cross type motor mount
1 x aluminum prop adapter
4 x countersunk screws
Comments:
HiModel Static Thrust Real Test Report
Voltage
Prop
Typical Current(A)
Peak Current(A)
Typical Thrust(g)
Max Thrust(g)
RPM/V
Internal Resistance(Ω)
11.1V
GWS 7x35 Direct Drive
16
21.3
690
865
1527
7.4V
GWS 7x3.5 Direct Drive
8.7
11
350
415
1914
a. The data only represent the results under our testing environment, we are not responsible for any inaccuracy.
b. HiModel copyright reserved, copying or reproducing are prohibited.
