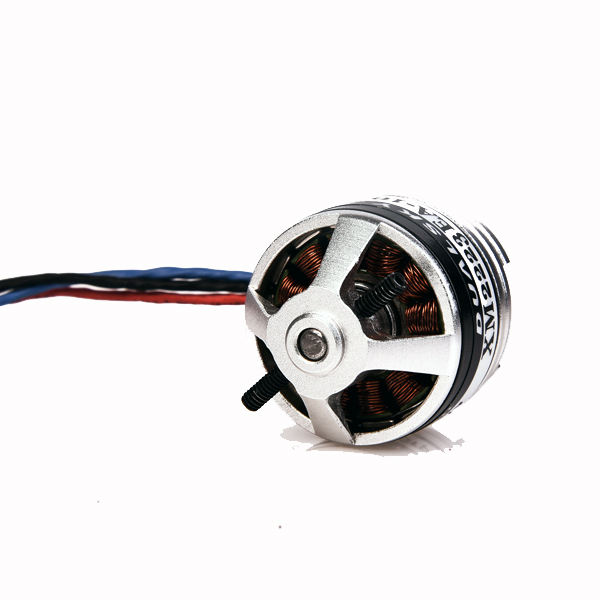

DUALSKY XM2223EA-17 1700KV Outrunner Brushless Motor for Airplane
Customers rating.
Add To Wish List
Added:2017/03/24
Updated:2019/01/16
Follow Us on:


  Tags: DUALSKY XM2223EA-17 1700KV Outrunner Brushless Motor for Airplane

Specifications:

DUALSKY XM2223EA-17 1700KV Outrunner Brushless Motor for Airplane



Type: XM2223EA-17
KV: 1700 RPM/ V
Stator diameter (Magnet length): 1706
Weight: 21g

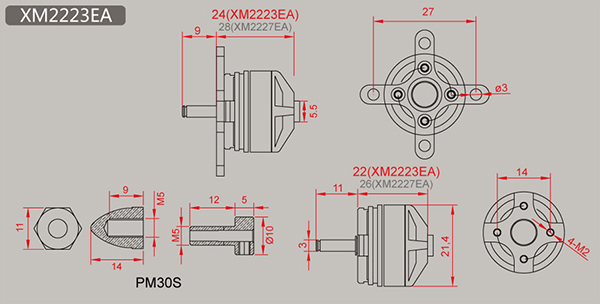

Diameter: 21.8mm
Length: 23mm
Shaft diameter: 3mm
Mounting hole spacing: 14/ 14mm
Slots, Poles #: 12, 14
Idle current (IO) @ 10V: 0.4A
Resistance: 286mOhm
Cruising power [8 mins]: 35.03W
Burst Current[15s]：5.7A
Peak Power[15s]:  63.7W

Recommended setting (not included):
ESC：6A
Setting 1 (Battery cell #, propeller size):  2S, 8x4.3SF
Setting 1 (Battery cell #, propeller size):  3S, 6x3HD
Max  weight of Sport models: 0.18kg
Max. weight of 3D models:  0.12kg




Includes/Requires:
Includes:
1 x motor
