   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis DYS 30A 2-4S Speed Controller (Simonk Firmware) for Multicopter | V2
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  DYS30M
Browse DYS

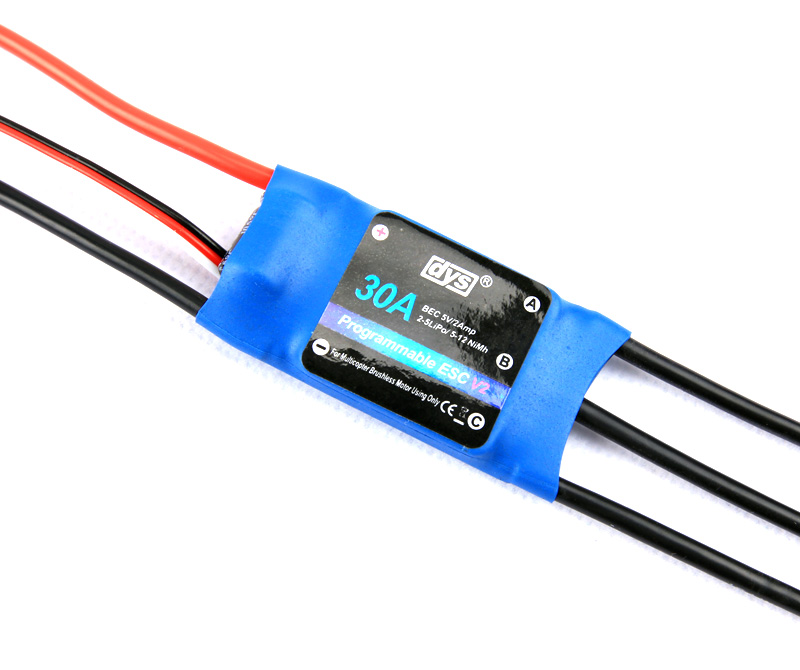

DYS 30A 2-4S Speed Controller (Simonk Firmware) for Multicopter | V2
Customers rating.
Add To Wish List
Bookmark and Share
Added:2014/04/17
Updated:2014/04/17
Follow Us on:

D41505593057

PRICE(USD):
    $10.93   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: DYS SinonK Simon K firmware multicopter ESC speed controll

Features:

Features

 l Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
2 The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
3 Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
4 Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
5 Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
6 Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.

Specifications:

DYS 30A 2-4S Speed Controller (Simonk Firmware) for Multicopter  | V2


1 Running current:30A(Output:  Continuous 30A, Burst 40A up to 10 Secs.)
2 Input Voltage: DC 6-16.8V(2-4S Lixx)
3 BEC: 5V  2amp.
4 Size: 46mm (L) * 26mm (W) * 11mm (H).
5 Weight: 23g
6 With SimonK updated firmware for multicopter


Includes/Requires:
Includes:
1 x ESC
Customer Reviews:
Average Customer Review: 5 stars   3 customer review(s).   [Write a review/question]

vtolman
Grade:
Same here LD 2216 800 with GF 11 x 4.7 carbon nylons.
Run smooth and not hot.
I always choose the ESC with a little higher Amp rating than the motor - for reliability cool running and less heat stress on components so it will never fail.
Good customer service and shipping with Himodel fo far.

April 20 2015     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]

TxRider
Question :
Can I connect the DYS 30A to a Naza-M Multirotor Autopilot V2 With GPS .....if so will I need to remove the red wire for it to work ??...im installing the DJI 2212 920KV Brushless motors.

Also will the black wire go to the top when plugging into the NAZA ??

Thanks !!
November 28 2014     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
Discussion of this question:

It will work with NAZA and you don't need to remove the red wire, you can but you don't need to, I have not removed mine and have been flying for more than a year
-- Mar 26 2016 by K****

logo13
Grade:
using 4 of these in a Vtail quad with LD power 800kv motors, run great and stay very cool.
May 13 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]
