   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis DYS SN Series 40A 2-6S SimonK Speed Controller for Multicopter SN40A (BLHeli compatible)
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  SN-40A
Browse DYS

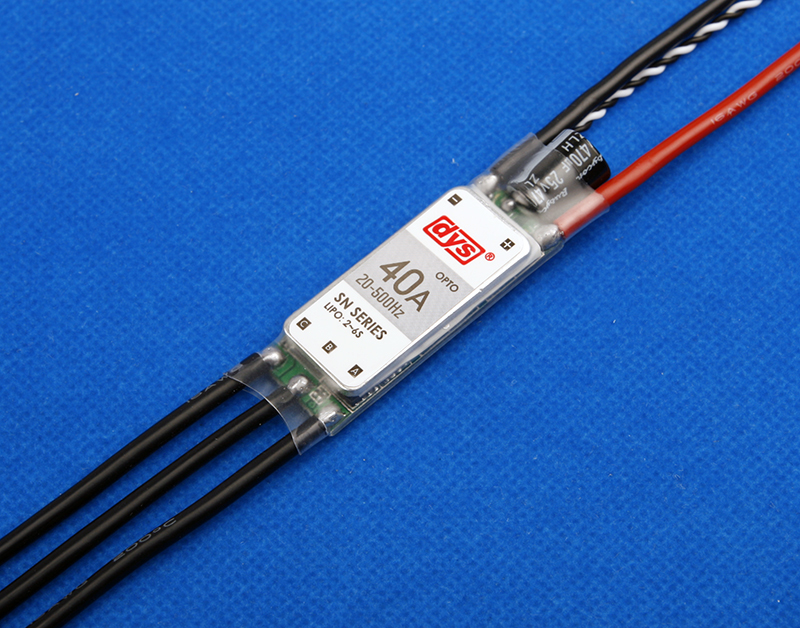

DYS SN Series 40A 2-6S SimonK Speed Controller for Multicopter SN40A (BLHeli compatible)
Customers rating.
Add To Wish List
Added:2015/07/16
Updated:2015/07/16
Follow Us on:


  Tags: DYS SinonK Simon K firmware multicopter ESC speed controll BLHeli

Features:

Feature:

◆ Specially for Multi-copter, throttle respond fast;

◆ Suit for throttle, which can compatible well with motor;

◆ Throttle signal is twisted pair cable, reduce the crosstalk while the signal transfer by the copper wire and flight more stable;

◆ The maximum refresh frequency up to 500Hz throttle signal, compatible with all flight controls;

◆ Use new process ultra-low resistance MOSFET with miniaturization, and all flashes are N MOS with high withstanding current;

◆ Minaturization design, SN16/20A with high performance capacitor fliter on the board, weight reduce to 2g, also already thicken the PCB copper specially and low heat for small aircraft.


Specifications:

DYS SN Series 40A 2-6S SimonK  Speed Controller for Multicopter SN40A (BLHeli compatible)

 Running current:  40A
 Input Voltage: 2-6S Lixx
 BEC: No
 Size: 60mm (L) x 17mm (W) x 7.2mm (H).
 Weight: 21.5g (including wires)
Signal frequency:20-500Hz
Outout PWM frequency:18KHz
Firmware compatibility: Compatible with SimonK & BLHeli
Includes/Requires:
Includes:
1 x ESC
