   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner EdgeRacing 2206 2380KV Competition/ Racing Class Brushless Motor CW
   Multi-rotors Motors
SKU:  EG2223CW

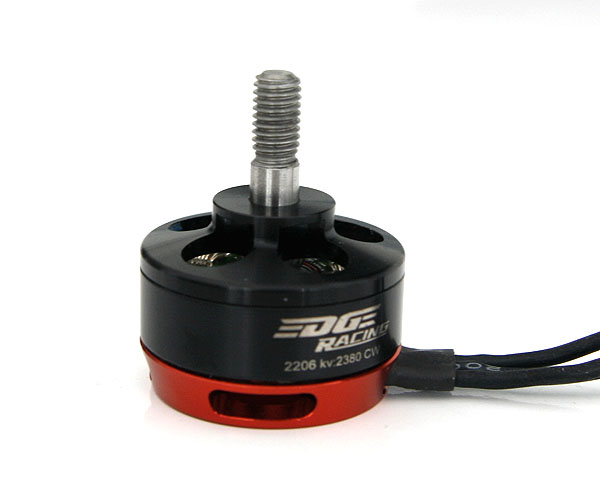

EdgeRacing 2206 2380KV Competition/ Racing Class Brushless Motor CW
Customers rating.
Add To Wish List
Added:2016/05/27
Updated:2016/07/08
Follow Us on:


  Tags: EdgeRacing Competition/ Racing Class Brushless Motor

Specifications:

EdgeRacing 2206 2380KV Competition/ Racing Class Brushless Motor CW

Stator Diameter22mm
Stator Thickness6mm
No.of Stator Arms12
No.of Stator Poles14
Motor Kv2380
NO-Load Current(A/10V)0.5
Motor Resistance46mΩ
Max Continuous Current27A/10S
Max Continuous Power400W
Weight32g
Outside Diameter27mm
Shaft Diameter5mm
Body Length20.3mm
Overall Shaft Length33.3mm
Max Lipo Cell3-4S
ESC30A-40A
Recommend Prop(inch)5040/ 5045/ 5030


PropVoltsAmps Thrust(g)Watts (W)Efficiency
(g/W)
Full throttle Temperature (environment temp. 25℃)
(inch)(V)(A)g/W
HQ503011.11.510016.656.006006006
2.515027.755.405405405
3.620039.965.005005005
4.725052.174.792026069
5.930065.494.580852038
7.135078.814.441060779
8.440093.244.29000429
10.1460112.114.10311301423℃
HQ503014.81.310019.245.197505198
215029.65.067567568
2.820041.444.826254826
3.725054.764.565376187
4.830071.044.222972973
5.935087.324.008245534
6.9400102.123.916960439
8450118.43.800675676
9.2500136.163.672150411
10.4550153.923.573284823
11.5600170.23.525264395
12.8650189.443.431165541
14.2700210.163.330795584
15.7760232.363.2707867130℃
HQ504011.11.610017.765.630630631
2.615028.865.197505198
3.720041.074.869734599
525055.54.504504505
6.230068.824.359197908
7.635084.364.148885728
940099.94.004004004
10.5450116.553.861003861
11.9500132.093.785297903
13.6550150.963.643349232
15590166.53.54354354426℃
HQ504014.81.310019.245.197505198
2.215032.564.606879607
3.120045.884.359197908
4.125060.684.119973632
5.230076.963.898128898
6.435094.723.695101351
7.7400113.963.51000351
8.9450131.723.416337686
10.1500149.483.344929088
11.4550168.723.259838786
12.7600187.963.192168546
14.1650208.683.114816945
15.5700229.43.051438535
17.2750254.562.946260214
18.8800278.242.875215641
20.4850301.922.815315315
22.7910335.962.70865579236℃
HQ504511.11.610017.765.630630631
2.615028.865.197505198
3.820042.184.741583689
525055.54.504504505
6.130067.714.430660168
7.735085.474.095004095
9.1400101.013.96000396
10.6450117.663.824579296
12500133.23.753753754
13.7550152.073.616755442
15.2600168.723.55618776726℃
HQ504514.81.210017.765.630630631
1.915028.125.33428165
2.920042.924.659832246
3.825056.244.445234708
4.930072.524.136789851
6.235091.763.814298169
7.3400108.043.702332469
8.5450125.83.577106518
105001483.378378378
11.1550164.283.347942537
12.4600183.523.269398431
14650207.23.137065637
15.4700227.923.071253071
17.1750253.082.963489806
18.8800278.242.875215641
20.4850301.922.815315315
23.6920349.282.63398992237℃
HQ604511.11.410015.546.435006435
2.215024.426.142506143
3.220035.525.630630631
4.325047.735.237795935
5.330058.835.099439062
6.835075.484.636989931
840088.84.504504505
9.2450102.124.406580494
11500122.14.095004095
12.2550135.424.061438488
13.6600150.963.974562798
15.7650174.273.729844494
17.5700194.253.603603604
19.3750214.233.500910237
21800233.13.432003432
23850255.33.329416373
24.8900275.283.269398431
26.8960297.483.22710770544℃

Includes/Requires:
Includes:
1 x  brushless motor
