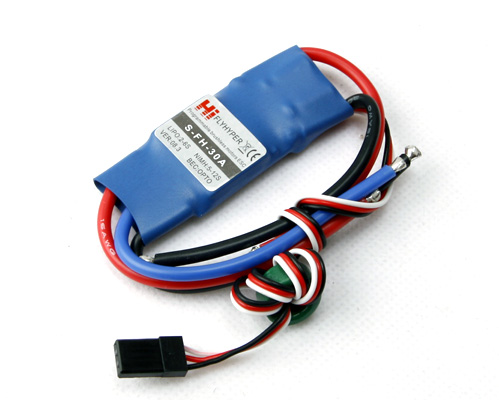

HiModel FlyHyper 2-6S 30A Electric Speed Control (ESC) S-FH-30A OPTO for Multicopter

Type: S-FH-30A
Weight: 25g
Size: 45x22x5.5 mm
Constant Current:30A
Max Current: 40A (for ten seconds)
BEC: No, OPTO
Input: 2 to 6 Li-Po, or 5 to 18 Ni-MH/Ni-Cd

Includes:
1 x ESC

No customer review yet. [Write a review/question]

a****mbh

Question :
Hi

Does anybody know which simonk firmware is suitable for this ESC ?

And what is pinout for usbasp ?

Thanks
December 13 2013 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]

Discussion of this question:

Hello! This is likely the same as the F-30A and regular FH-30A, which is bs_nfet.hex, but I am not sure. Maybe post a picture. :)
-- Dec 13 2013 by sim-

Hi im not 100% sure it's bs_nfet, afro n_fet is also possibile ...

https://dl.dropboxusercontent.com/u/51770885/Photo 10.12.2013 17 27 39.jpg

https://dl.dropboxusercontent.com/u/51770885/Photo 10.12.2013 17 27 49.jpg
click to view

-- Dec 15 2013 by a****mbh

More photos
click to view

-- Dec 15 2013 by a****mbh
