- Designed for LiPo, LiHv, LiFe, LiIon batteries, highly effectively manage your different batteries with just our BC-8s.
- Patent Automatic alarm function
Built-in four bright LED lights and two 85dB buzzer, with sound and light tracking signal, you will never lose contact with your UAV.



- All Status Display
3 kinds of working mode, Easy to switch as you wish

- Super Portability
You will not find a similar product like BC-8S with that mini size in the market.
- Voltage Display Function
Voltage recording function Histogram can tell you the voltage change during usage of battery. The upper part tells you the lowest voltage recorded during usage. The lower part shows you current voltage. For on-board measurement, it’s recommended to use this mode, after your flight by checking histogram, it can easily tell how well is your battery.

- Eng-Chi Menu
Support English&Chinese
- The input port supports the detection of up to 8s battery

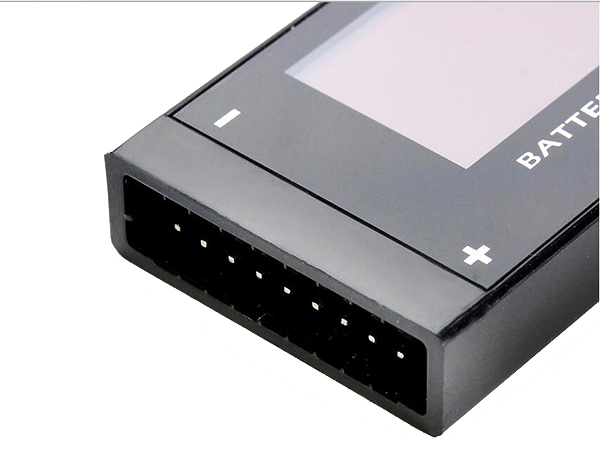

Support the detection of LiPo, LiHv, LiFe, LiIon batteries, suitable for batteries with JST XH 2.54 balance port, connect the balance port start from “BAT-“
- ARM 32bit Hi-speed CPU

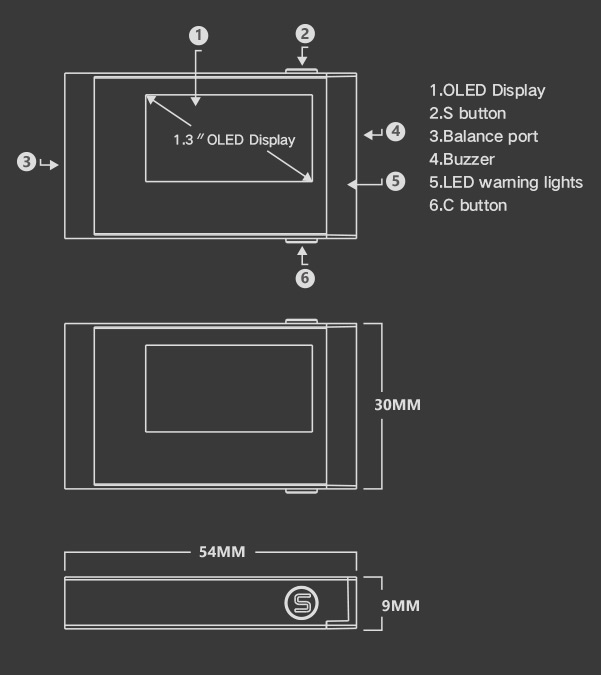

- Appearance&structure

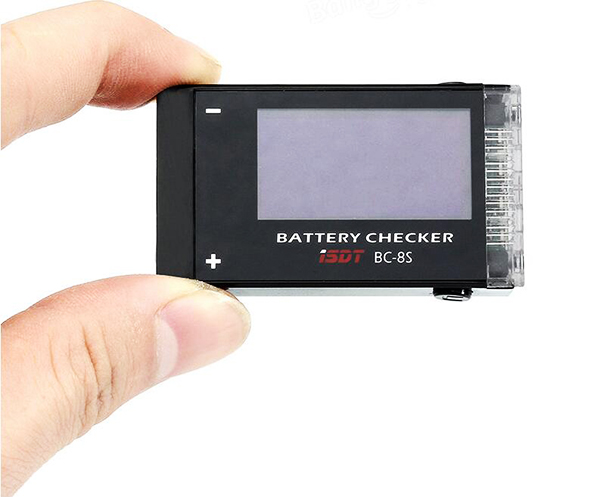

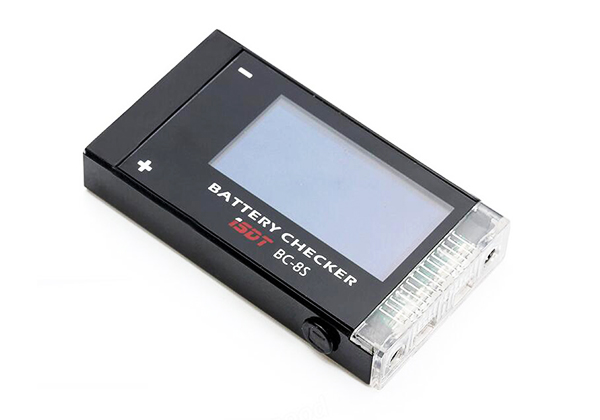

ISDT 1-8S Battery Checker BC-8S (support lost found function)

Dimension	54mm x 30mm x 9mm
Weight:	15g
Lowest function voltage	2.6V（1S battery）
Voltage measurement range	1.0~5.0V
Supported Batt. Type	LiPo, LiHv, LiFe, LiIon
Balance Cells	1~8S
Voltage measurement accuracy	+5mV
Intensity of Buzzer Sound	85dB

Includes:
1 x  ISDT 1-8S Battery Checker BC-8S
