LDPower LD2212M 750KV Outrunner Brushless Motor for Multi-rotor

SKU: LD2212K7

Browse LD-Power

LDPower LD2212M 750KV Outrunner Brushless Motor for Multi-rotor

Customers rating.

Add To Wish List

Added:2013/06/18
Updated:2013/06/18

Follow Us on:

Follow @HiModel

Tags: multi-rotor brushless motor LDPower

Specifications:

Model	LD2212M
Motor Diameter	28mm
Motor Length	30mm
Stator Diameter	22mm
Stator Length	12mm
Shaft	3.175mm
Weight	62.5
Batteries	3-4Cells
No Load Current	0.5A

Prop Test Data LD2212M KV750
Voltage(V)	Propeller (inch)	Throttle	Current (A)	Thrust(g)	RPM (RPM/Min)	Power(W)
11.1	APC1047	1	180	2905	11.1
		2	270	3694	22.2
		3	360	4245	33.3
		4	430	4645	44.4
		5	500	4980	55.5
		6	555	5228	66.6
		7	600	5451	77.7
		100%	8.2	680	5691	91.02
	APC1147	1	180	2590	11.1
		2	270	3180	22.2
		3	380	3660	33.3
		4	450	4038	44.4
		5	520	4294	55.5
		6	570	4534	66.6
		7	630	4700	77.7
		8	670	4868	88.8
		9	720	5014	99.9
		100%	9.6	740	5082	106.56
	APC1238	1	200	2417	11.1
		2	320	2948	22.2
		3	400	3350	33.3
		4	450	3635	44.4
		5	520	3874	55.5
		6	570	4062	66.6
		7	630	4208	77.7
		8	670	4337	88.8
		9	720	4495	99.9
		10	750	4568	111
		100%	10.6	765	4615	117.66
14.8	APC1047	1	180	3094	14.8
		2	300	3994	29.6
		3	410	4568	44.4
		4	490	5022	59.2
		5	570	5315	74
		6	630	5597	88.8
		7	700	5820	103.6
		8	750	6034	118.4
		9	790	6257	133.2
		10	840	6395	148
		100%	11.9	930	6795	176.12

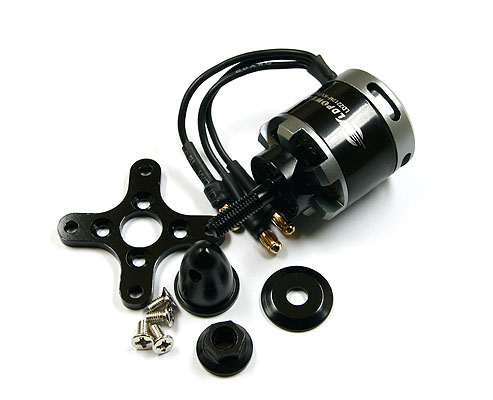

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x motor mount
4 x prop adaptor screws
