LEOPARD 4065/1800KV 4-Poles Inrunner Brushless Motor Red LBP4065/3Y

★new design,four-pole rotor,the overall efficiency of more than 90%;

★extremely low temperature without additional heat sink can meet the vast majority of applications;

★compared to competitive products,lighter weight,higher torque;

★use of high-quality materials:aluminum alloy shell fine,high-quality magnetic steel,high temperature wire,imported high-quality bearings;

★rotor using special materials reinforced,high-speed operation under the non-burst phenomenon;

★good heat dissipation ,high overload capacity；

★Low electromagnetic interference;

★minimum required electrical maintenance;

★long life

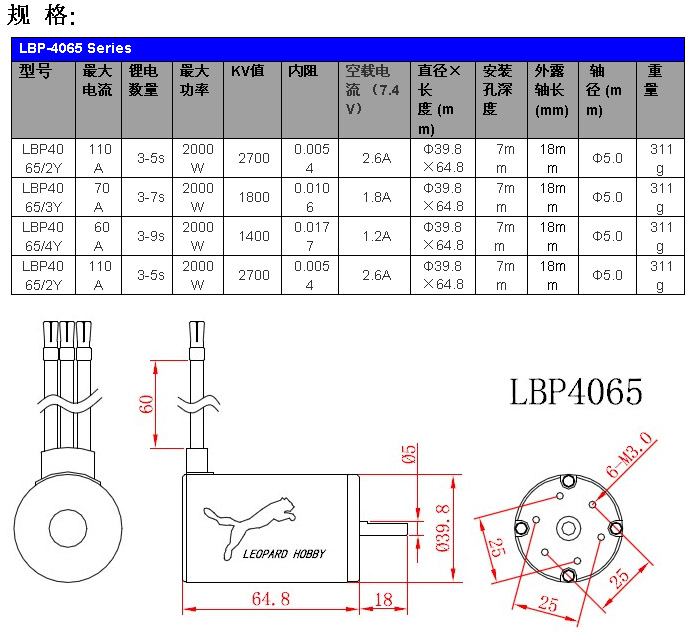

Model:LBP4065/3Y
Max Amps: 70A
Lipo Cell: 3-7s
Max Power: 2000W
KV(RPM/Volt): 1800
Resistance: 0.0106
No-load Current（7.4V） : 1.8A
Diameter×Length (mm): Φ39.8×64.8
Mounting hole depth: 7mm
Length of extend Shaft : 18mm
Shaft Diameter (mm): Φ5.0
Weight: 311g

Average Customer Review: 5 stars

1 customer review(s). [Write a review/question]

M****79

Grade:

very powerful motor...put in my 31" mono, it damaged the stuffing tube and doesn't even run it on the water
