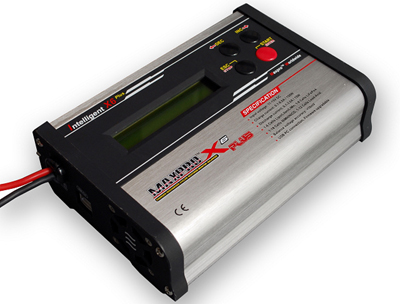

1. High power, high current, high-performance power conversion circuit. Maxpro X6-Plus uses advanced DC/DC
converter technology with high output conversion efficiency
2. The X6-Plus can be used with four types of Lithium batteries (Li-Po, Li-lon, Li-FePO4, Li-Mn) and has a build-in balancer.
3. Optimized the charging technique of NiMH/NiCd
4. Cooling FAN is controled automaticlly by internal temperature sensor and provides intelligent protection.

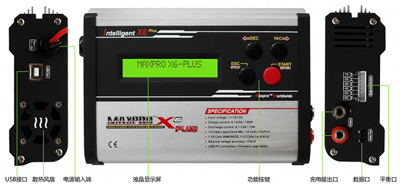

5. 16*2 backlit LCD that displays the active mode, battery voltage, charge current, pack temperature, capacity (mAH
added or removed) and charge/discharge times.
6. Programmable various charge settings.
Li** batteries: normal chargie, fast charge, balance, storage, discharge, charge/discharge cycle, and battery monitor.
NiMH/NiCd & Pb batteries: charge, discharge, charge/discharge cycle.
7. Perfect protection. The X6-Plus has protection for reversed polarity (input or output), low input voltage, battery
temperature, charging capacity and battery voltage overrun.
8. Battery interior resistance measurement with PC monitor software.
9. DC power supply mode can provide 3.0~30V adjustable DC to meet your requirement.
10. Build-in servo tester. Linear, Speed, Deadband of servos can be tested.
11. Firmware upgradable via USB port. The charge/discharge data can be recorded & analyzed by PC monitor software & Battery analyzer software.
Specifications:
Input power: 11~15V DC /15Amp (at maximum charge
Charge current: 0.1~8.0A (0.1A/step)
Discharge current: 0.1~3.0A (0.1A/step)
Max. charge power: 150Watt
Max. discharge power: 15Watt
Balance charge current: <400mA
Balance accuracy: <10mV
Voltage tolerance: 0.10%
Capacity display: 0~9999mAH
Supported batteries: 1~6 cells Li-Po, Li-Ion, Li-Mn (2~6 cells
1~8 cells LiFePO4 (2~6 cells in balance
1~18 cells NiMH, NiCd
1~12 cells(2~24V) Pb(SLA)
Temperature control: Automatically
PC connection: USB port
Additional functions: Servo test (Linear, Speed, Deadband)
DC power supply (3.0~30V DC output)
Weight: 450g
Size(LxWxD) 145x100x40mm (5.71"x3.94"x1.57")
Includes/Requires:

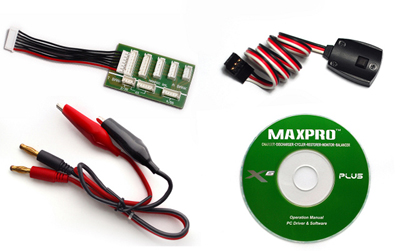

Includes:
1 x Maxpro X6-Plus charger with input cables & clips
1 x pair of output cables & alligator clips
1 x temperature sensor
1 x USB data cable
1 x CD (User's manual, PC monitor software, Battery Analyzer software inside)
1 x Multi-connector output cable
1 x Multi-Battery Charging Adapter (2S/3S)
