   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers RadioLink 1-6S 6A 8-port Balance Charger CB86-PLUS
SKU:  86PLUS

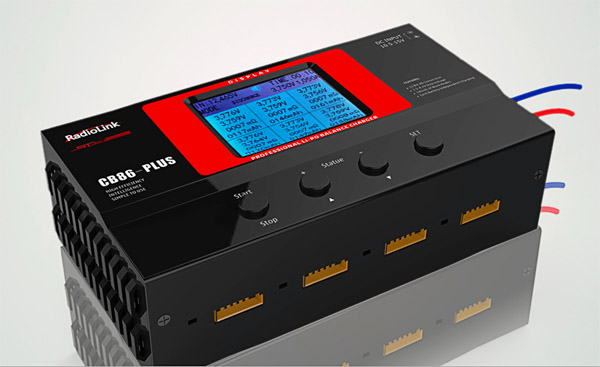

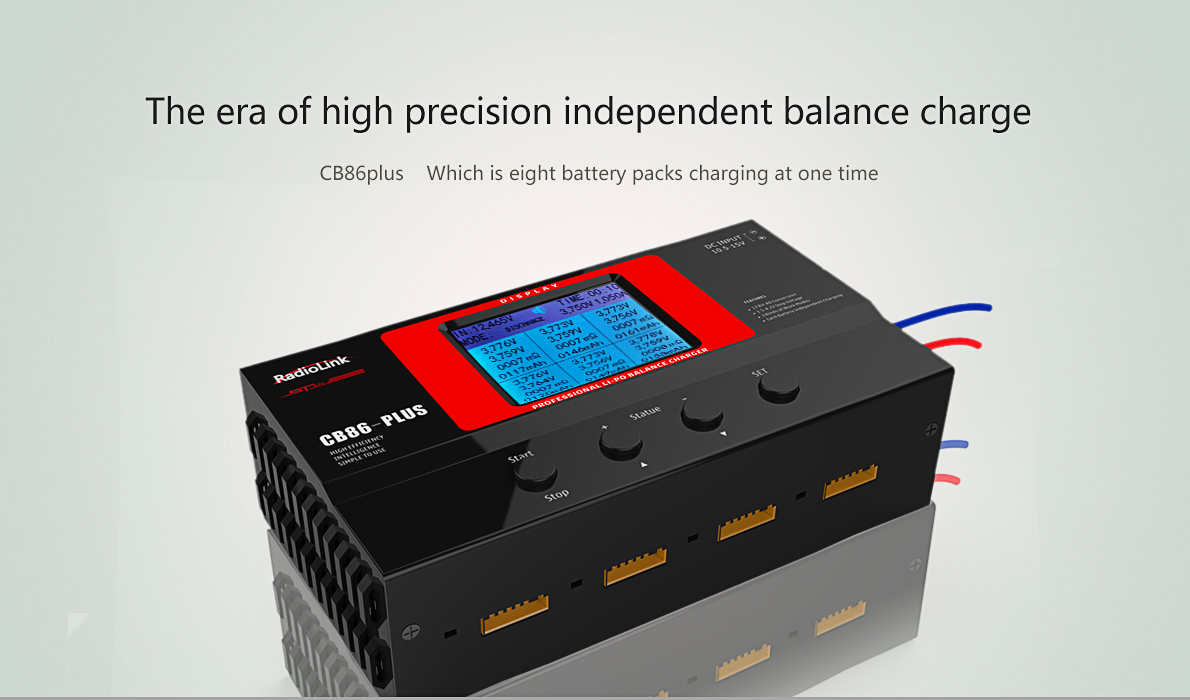

RadioLink 1-6S 6A 8-port Balance Charger CB86-PLUS
Customers rating.
Add To Wish List
Bookmark and Share
Added:2015/05/19
Updated:2015/06/08
Follow Us on:

584141527316

PRICE(USD):
    $87.12   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: RadioLink 1-6S 8-port Balance Charger CB86-PLUS

Features:










Specifications:

RadioLink 1-6S 6A 8-port Balance Charger CB86-PLUS


Operating voltage range: 11-15Volt DC

Circuit power: Max 216W (overall power, not per port)

Charge current range: 0.1- 6A

Current drain for balancing Li-Po: 6A

Current drain for discharging: 1A

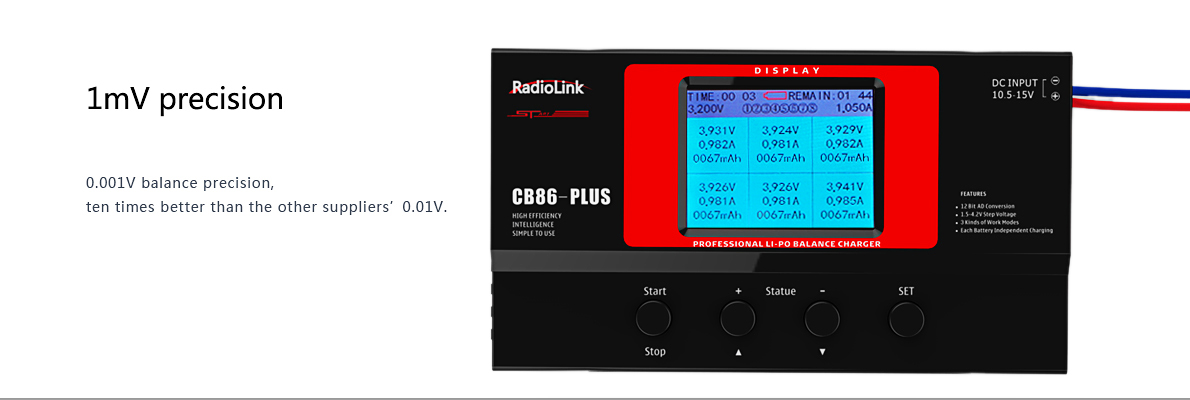

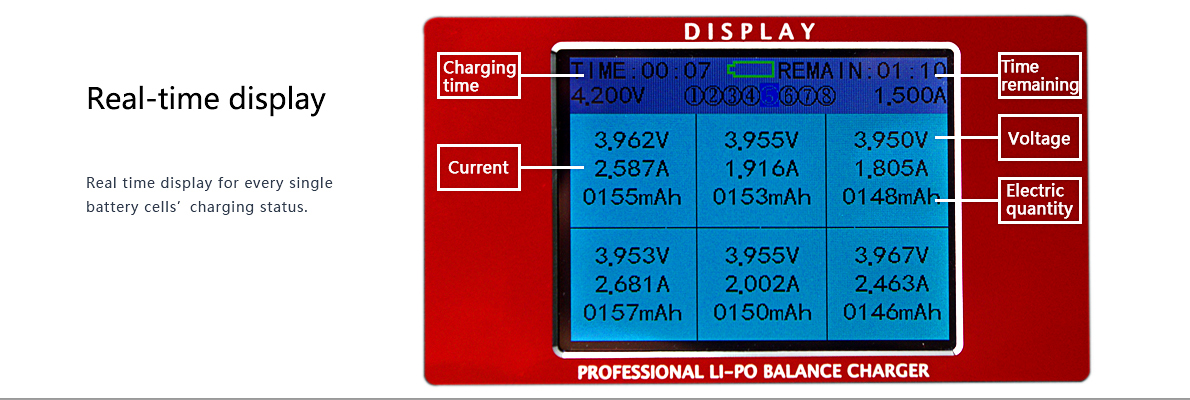

Display: 2.8" TFT ture color screen

Net weight: 800g

Dimensions: 188×104×57mm


Hint:
There are two charging modes:

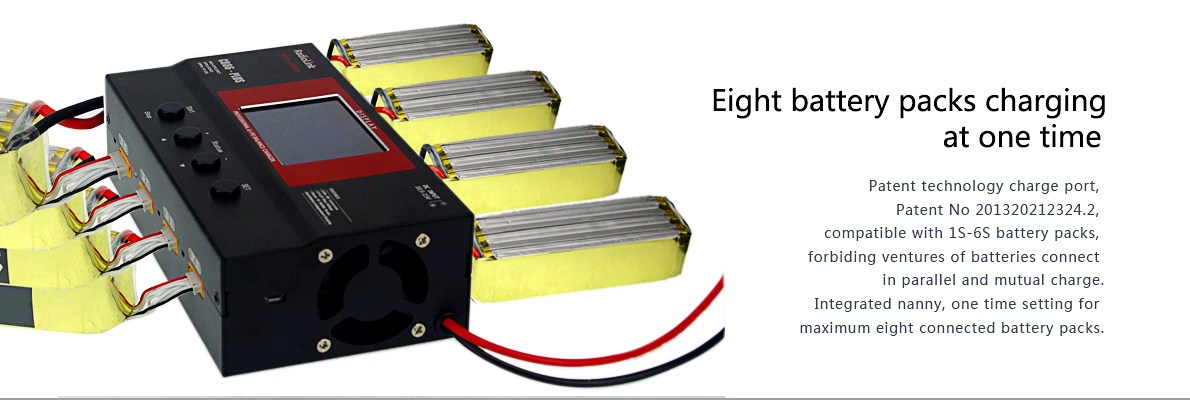

Mode 1: Charge each battery one at a time, it will cycle to the next battery once the current one is fully charged. Battery cell count and capacity can be vary in this mode.
Mode 2: Charging same cell count batteries (up to 6S, capacity can be vary), it will go through and charge each battery separately as in mode 1 until all the batteries have the same cell voltage, then starts simotanous charging till all packs fully charged.

Includes/Requires:
Includes:
1 x charger
1 x English manual
Customer Reviews:
Average Customer Review: 3 stars   4 customer review(s).   [Write a review/question]

d****onflycamera
Grade:
Totally a waste of money.Maybe if radiolink can do a software update to charge batteries at the same time, then it will worth the price.
June 10 2015     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


J****ootz
Grade:
Product IS NOT WORTH BUYING, only one charger inside but they make out like it is 8 separate charges

You get 2 choices on charging:

Option one
- charge each battery one at a time which it will cycle to the next battery once it is finishes fully charging a single battery, in other words will take for ever to charge all the batteries.

Option 2
- connect identical batteries (up to 6) , it will go through and charge each battery separately as in option 1 until all the batteries have the same cell voltage, then it will connect them all together and charge them in parallel. Not hard to see the problem with this especially if your batteries are not near the same age/health or voltage in each cell to begin with and of course the usual danger of charging packs in parallel (like with the dodgy $10 boards).....
June 02 2015     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


h****ly
Question :
Can charge each battery at 6amp max? So total 6x8=48amp??
May 22 2015     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]


O****hore
Question :
Is it 216w per battery? so can each port charge at 216w at the same time?
May 20 2015     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
