   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Boats Seaking-180A 2-6S Brushless ESC W/Water cooling for Boat V2
SKU:  SKG180
Other Items of Interest
Browse HOBBYWING

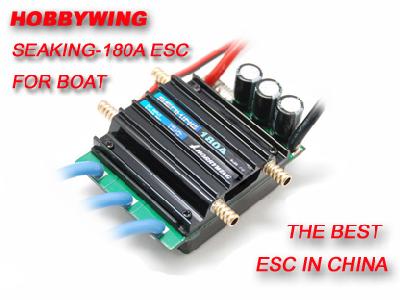

Seaking-180A 2-6S Brushless ESC W/Water cooling for Boat V2
Customers rating.
Add To Wish List
Bookmark and Share
Added:2009/06/30
Updated:2014/04/15
Follow Us on:

3S5K66138182

PRICE(USD):
    $93.31   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: Seaking-180A  2-6S  Brushless  ESC  W  Water  cooling  for  Boat  V2

Features:
● Use top quality electronic components to enhance the current endurance ability of the ESC.
● Special designed for RC boat, with excellent start-up, acceleration and linearity features.
● With water cooling system and the whole ESC is waterproof to get a longer life.
● With 2 running modes ("Forward" mode and "Forward/Backward" mode).
● Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection.
● With 8 steps of timing adjustment, compatible with all kinds of sensorless brushless motors.
● Swtching mode built-in BEC has a very powerful output even working with 6 cells lipo battery.
● User programmable and compatible with the pocket-sized Digital LED Program Card (Optional equipment) to set the ESC easily.

"SeaKing" series ESC is specially designed for boat, so it has the water-cooling system and the whole ESC is waterproof.
Specifications:
● Output: Continuous current 180A, burst current 360A.
● Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
● BEC Output: 5.8V@3A Switching mode built-in BEC.
● Suitable Motor: Sensorless Brushless Motor
● External diameter of the water cooling pipe: 5.0mm
● Size: 72mm(L) * 68mm(W) * 34mm(H).
● Weight: 165g

The italics texts in the following form are the default settings.
Note1: The parameters in this line is available for Normal Voltage ESC (2 to 6 cells lipo)
Note2: The parameters in this line is available for High Voltage ESC (5 to 12 cells lipo)
Includes/Requires:
Includes:
1 x ESC
1 x water colling system (pre-installed)
1 x Instruction manual (English)
Customers who bought the above may also need
PictureStock NumberManufacturer & Product DescriptionPriceQTYSelectStock Status
Click for the detail!SKGPRCHobbywing Digital LED Program Card for Airplane/ Boat/ Car ESCs$6.79Notify Me.Out of Stock
Customer Reviews:
Average Customer Review: 5 stars   2 customer review(s).   [Write a review/question]

i****7771
Grade:
great esc for the price!!!
October 25 2009     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]

b****as
Grade:
Ce controleur est absolument fantastique et pas cher. Etanche et refroidi par eau.
J'ai même rajouté un petit ventilateur de carte son d'ordinateur. En 6S 5350 mah avec un moteur roxxy sur le B28 de GRAUPNER il ne depasse pas les 40° C.
Super!!
August 17 2009     Was this review helpful to you?   Yes [ 1 ]   No [ 1 ]    [Reply this review]
Discussion of this review:

I wish I could read all of your French.
-- Aug 22 2009 by z****

Babble translation: This controller is absolutely fantastic and not expensive. Tight and cooled by water. J' even added a small ventilator of chart its d' computer. In 6S 5350 mah with an engine roxxy on B28 of GRAUPNER it does not exceed the 40° C. Super!!
-- Aug 22 2009 by z****
