► Compatible with all sensorless brushless motors and most of sensored brushless motors such as LRP,
SpeedPassion, Novak, etc.
► Seamlessly change to sensorless working mode when the sensor cable is broken.
► Excellent start-up, acceleration and linearity features.
► Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
► Firmware can be updated through an USB adapter on the advanced LCD Program Box (Optional equipment).
► User programmable. Easily programmed with the “SET” button on the ESC and also compatible with the 3
digital LEDs Program Card and the advanced professional LCD Program Box.
􀂐 3 running modes (Forward mode, Forward/Reverse mode, Rock Crawler mode)
􀂐 4 steps of maximum reverse force adjustment.
􀂐 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of
drag-brake force adjustment and 4 steps of initial brake force adjustment.
􀂐 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
􀂐 8 steps of timing adjustment to suitable for all brushless motors.
􀂐 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss
protection / Motor blocked

【SPECIFICATIONS】

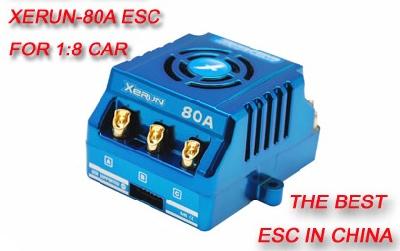

Model: XERUN-80A
Cont./ Burst Current: 80A / 380A
Resistance: 0.0006 ohm
Suitable Car: 1/8 on-road, off-road and monster RTR applications
Suitable motors: Sensored and sensorless Brushless Motors
≥6T, KV≤2400 (Works with 4S Lipo)
Battery: 6-12 cells NiMH or 2-4 cells Li-Po
BEC Output: 5.75V@3A Switch mode built-in BEC
Dimension: 58mm(L) * 46.5mm(W) * 35mm(H)
Weight: 105g (Wires not included)
Cooling Fan Working Voltage: 5V, maximum 8V. (The fan gets the power supply from the built-in BEC)

Includes:
1 x ESC
1 x ESC cooling fan (integrated)
3 x bullet connectors
1 x Instruction manual (English)
