HiModel Series Brushless Motor Electronic Speed Controllers are jointly launched by HiModel Co., Ltd and China most famous micro-electronic Institute, they are designed and manufactured to high standards for the discerning modelers. Designed for light-weight, high-efficiency, high-torque drive ability, convenient programming and durability, HiModel HM series ESCs are comparable with world famous products of this line.

HiModel ESC provides many programming options to ensure the best possible power and performance from your brushless motor systems, offered high power efficiency and combined with low weight and compact dimensions.

HiModel's ESC have some excellent features:

1.Small Size and Light Weight.

2.Wide Adaptability and Easy to use. The modeler don't need setting so much to suit your system in most conditions. You only need to connect your system then flying. Not as some other ESCs,you must setting too much before you fly, otherwise the motor reject start. Another exciting feature is that you never need  consider the connect wire sequence with motor, you can change the rotation by programming easily.

3.Powerful direct-drive ability (High-torque drive ability).

4.Never reverse at starting.

We design a new and advanced software about never start reverse. In the first 2 or 3 seconds the motor have a bit rough which can ensure the motor run forward only and never reverse at the start period. That is safe  (if the motor start reverse, maybe make the screw loose that is dangerous). When motor start rough, don't pull throttle up, stay here one or two second all will be ok. For this advantage feature, the motor's current and  beginning RPM higher than other brands ESC's.

5.Smooth Linearity of throttle: HiModel's ESC make the motor have a good linearity, you will fell good about it.

6.High-Speed acceptance: Suite for all brushless motor's currently available on the market, No brushless motors speed can exceed the HiModel's ESC unacceptable high-point.

7.Motor Jam Protect: When motor jam normally make the ESC broken, HiModel's powerful hardware and software design can protect the ESC not be hurt.

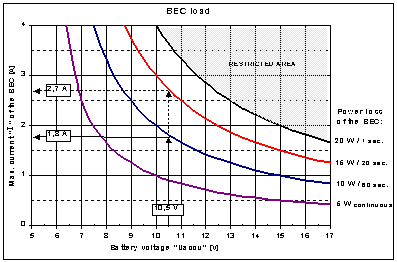

8.BEC: All HiModel Series ESCs are used 2 latest BEC chips L4941BDT ( Nearlly all the ESCs including world famous ESCs are with 1 No. BEC chip only), one BEC chip can support up to 1.5A BEC output in theory, it means two BEC chips can output up to 3A BEC theoretically, but this can only be possible when using much larger heat sink and use under restrict colling environment, this might be the reason why some manufacturers claim a 3A BEC output for their ESCs, but it is impossible for RC model use. 1A BEC output of HiModel series ESCs are responsible and guaranteed. HiModel Series ESCs BEC load curve is most like the chart shown below which is a brand ESC announced as  the BEC ability is 5V / max. 4.0 A .
