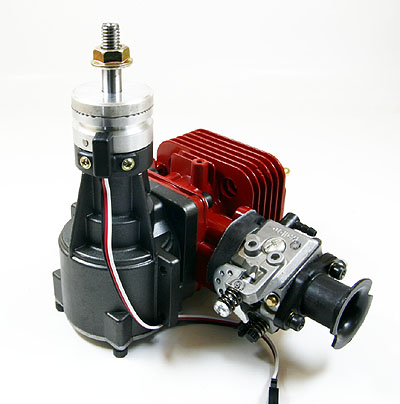

GF26i-V2 26cc Petrol Engine for Radio Control Aeroplane (Version 2)

This is the new V2 GF26i gasoline engine, lighter in weight.

Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane only
Displacement (cc) : 26cc
Bore x Stroke (mm): 34mm*28.6mm
Net Weight (kg) : 890g
Carburetor : Walbro(Diaphragm butterfly valve type)
Maximum Output : 2.42ps / 9000rmp
speed rang : 1800-9500rpm
Ignition : Auto advanced CDI
Ignition input: 4.8V
Oil mix: 30:1 for break-in and then 40:1 for normal running
Lubrication Oil : 2 cycle engine oil
Propeller : 16x8 16x10 17x8 17x10 (Two leafs prop)
Cooling System : Air Cooled

Average Customer Review: 5 stars

9 customer review(s). [Write a review/question]

d****

Grade:

Hello!
I want to use this engine in a helicopter 90 size.
What do you think is suitable?
June 18 2012 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

m****osfrs
STD member

Grade:

ÓTIMO MOTOR, LEVE, COM RESPOSTAS RAPIDAS, BASTANTE CONFIÁVEL EM VÔO E PARTIDA FÁCIAL. USANDO GASOLINA PÓDIUM E ÓLEO A 35:1.
February 23 2012 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

E****son Ferro
STD member

Grade:

tenho um desse, depois que amaciou ficou 10!!!!!!
ótimo motor muito forte.....
February 18 2012 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

j****thanking
STD member

Grade:

can i use a 6v battery pack on the ignition or is it strictly a 4.8v?
September 18 2011 Was this review helpful to you?

Yes [ 1 ]

No [ 1 ] [Reply this review]

w****nei

Grade:

Tenho um motor desse aqui no Brasil e muito bom
September 01 2011 Was this review helpful to you?

Yes [ 2 ]

No [ 0 ] [Reply this review]

Discussion of this review:

Amigo por favor, comprei esse motor, como amaciou ele? Qual gasolina usou e mistura? Desde já agradeço. Bruno.
-- Oct 18 2011 by m****nb

w****

Grade:

The size is about:
Height: 12cm (16cm including glow plug)
Length: 14cm
Width: 13.5cm
July 01 2010 Was this review helpful to you?

Yes [ 5 ]

No [ 0 ] [Reply this review]

T****mk

Grade:

Can it be installed Yak 55m for 3D flying?

wing span 1860mm
weight about 4kg-4.5kg

April 14 2010 Was this review helpful to you?

Yes [ 4 ]

No [ 0 ] [Reply this review]

Discussion of this review:

Yes it can, I have one in my 71" Yak54 and it prop hangs easaly.
It is a very smooth running motor and has very little vibration.
I give it 5 stars
VERY GOOD MOTOR.
-- Jul 06 2010 by D****ne1955

c****tiano_d_almeida
STD member

Grade:

I have a P-51 GS from The World Models. I'm looking for a gas engine instead of glow and 4-stroke. Is this engine a good option for this Model or needed higher, like 50/55cc?
Wing Span : 80.5 in / 2040 mm
Wing Area : 1155 sq in / 74.5 sq dm
Flying Weight : 15.0 lbs / 6800 g
Fuselage Length : 70.5 in / 1790 mm
Thanks

February 24 2010 Was this review helpful to you?

Yes [ 1 ]

No [ 4 ] [Reply this review]

Discussion of this review:

You could go with the CRRC pro 40cc or 50cc for that model. It's rated for a 1.6 glow a 26cc would fit into a .90 to 1.20 size model.
I would find a gasoline engine with a rear carb so you can fit into the cowel though.
-- Oct 24 2011 by b****lyousif

n****nkk

Grade:

Can it be installed in a Heli of .50 or .90 size?
December 16 2009 Was this review helpful to you?

Yes [ 0 ]

No [ 4 ] [Reply this review]

Please explain:
