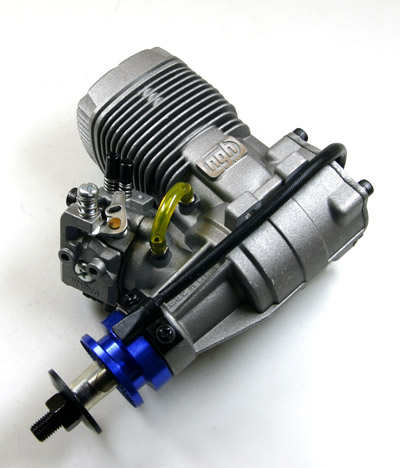

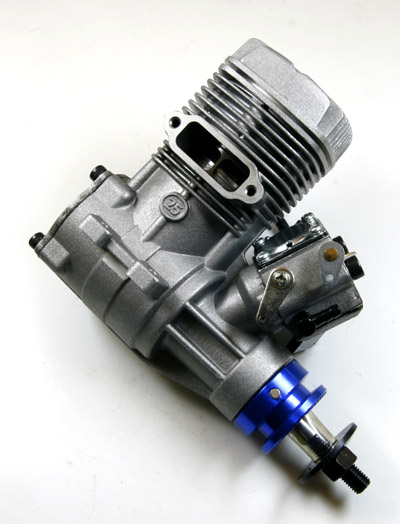

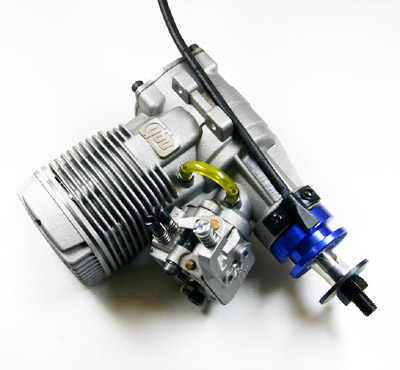

THIS IS THE UPGRADED VERSION OVER PREVIOUS GT25, BALL BEARING IS ADOPTED TO THE CRANKSHAFT CONNECTION ROD.
This is a new generation of small gas quality engine, it combines the advantages of both Nitro and gasoline engines, compact in size, light weight, fuel economy, reliable and powerful.
Specifications:
Specifications
Engine Type Gasoline Two-stroke, Air Cooled, Rotary Valve
Cylinder Type Precision Steel Sleeve
Cylinders Single
Crank Type-Forged Dual Ball Bearing Support
Mounting Type Beam or Rail Mount
Carburetor Type Walbro WT Series
Carburetor Mounting Front
Crankshaft Threads 5/16" X 24 TPI

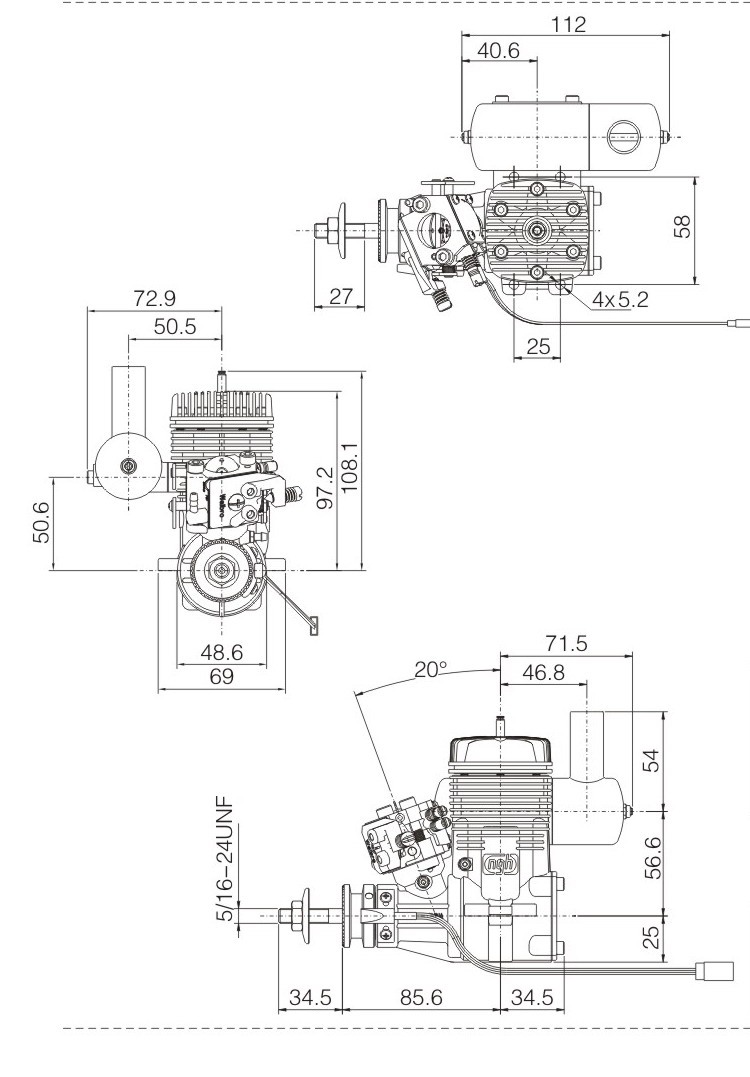

Mounting Dimensions Owners Manual or Website
Plug Type 1/4 X 32
Displacement 1.5 cu in.(25.1cc)
Bore 1.307 in. (33.2mm)
Stroke 1.142 in (29mm)
Engine (Only) Weight 830g
Ignition Weight 120g
Prop Range 16*8,16*10,17*8,17*10
RPM Range 1800-9000
Fuel Unleaded Gasoline With High-Quality 100% Synthese Oil, Pre- Mixed
compression ratio 10.5
Pre-Mix Oil Ratio and Type Break-in with 20:1, General 25:1, For Air Cooled Engines (Oil percentage can not less than 4%)
Performance
Prop RPM
JXF 15*8 9400
JXF 16*8 8400
JXF 17*8 7800
Includes/Requires:
Customer Reviews:
Average Customer Review: 5 customer review(s).[Write a review/question]
olddig
Question : CAN ANYONE TELL ME THE DISTANCE BETWEEN THE MUFFLER BOLT HOLES? EVERY OTHER DAMNED MEASUREMENT EXCEPT THE ONE USEFUL ONE! October 09 2013 Was this question helpful to you? Yes [ 0 ]
No [ 0 ] [Reply this question]
A****MODELonline
Grade: Olá pessoal
Tenho um NGH importado de europa e esta num ASM Sukhoi SU26M ARTF
ESTOU SATISFEITO mesmo no relanty .
o motor chega e sobra para o modelo demora um algum tempo a soltar
mas para mim esta in peck.
January 28 2013 Was this review helpful to you? Yes [ 0 ]
No [ 1 ] [Reply this review]
i****ue da silva
Grade: se vc tem amor pelo seu dinheiro nao compre motor ngk e a maior bonba que ja se fabricou em motores gasolina comprei um 25 cc e mais frouxo que motor velho ok December 14 2012 Was this review helpful to you? Yes [ 0 ]
No [ 1 ] [Reply this review]
i****ue da silva
Grade: alguem ja comprou esse motor comprei um e veio totalmente sem comprenssao totalmente froxo ou vei com defeito ou e ruim mesmo alguem tem uma resposta pra mim /? November 25 2012 Was this review helpful to you? Yes [ 1 ]
No [ 1 ] [Reply this review]
g****arqueiroz
Grade: Esse motor serve para aeromodelo de preferencia "treinador"
Spec:
Envergadura: 1.591 milímetros (62.6in)
Comprimento: 1.100 milímetros (43.3in)
Área da asa: 41.2sq.dm
Flying Peso: 1900 ~ 2350g December 09 2011 Was this review helpful to you? Yes [ 1 ]
No [ 1 ] [Reply this review]
Discussion of this review:
NO, minimo 2200mm para treinador. -- Jan 22 2012 by M****Daimon
