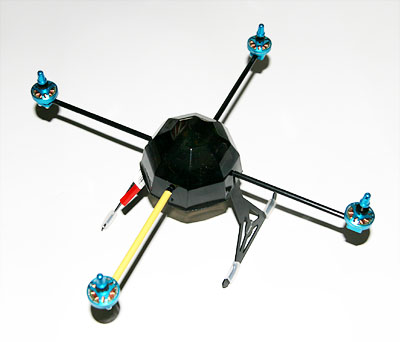

LOTUSRC T80 Quadcopter ARTF

Function and features
T80 quad-copter is a mini-type aircraft model designed for indoor and outdoor recreational flight. It is able to hang light PTZ camera, and take flight photography or do FPV fight.
1) Small dimension, light weight, taking off and landing vertically, low flying noise, fit for small acreage or space flying and landing.
2) Safe and easy to play, flight stable. Built in flight balance stable system. The operator do not need to replace the flight altitude frequently, stable hovering and aerial flight can be achieved.
3) Use four same designed direct drive brushless motors, being reasonable placed, have high power conversion and strong thrust.
4) Flexible flight entertainment and configurable applying ability, hanging reasonable weight camera equipment is allowed for taking flight photography, FPV, etc, all expandable apply activities.
5) All aircraft metal parts are processed by sophisticated CNC skill, reasonably structured, have strong impact resistance, and also are durable.
6) Only need 4 remote control proportion channels to fly. Property core system, it is compatible to all remote control equipments.
7) Dark grey transparent cover can do a help to observe aircraft working condition.

Technical parameter

*this sheet is only for reference, product configuration may have little alteration in different versions. Please subject to material object.

Efficient payload	Mini vidicon / camera	≤50grams	standard
Maximum lift force	Use850mAh standard battery	380grams	_
Maximum payload	Use 850mAh standard battery	≤80grams	_
Maximum takeoff weight	Use850mAh standard battery	280grams	Safety margin
Flight distance	Depend on remote control equipment and battery capacity	_	_
Flight time	2S850mAh 15C battery	12mins	Hovering while no wind
Wind resistance	≤4	class	_

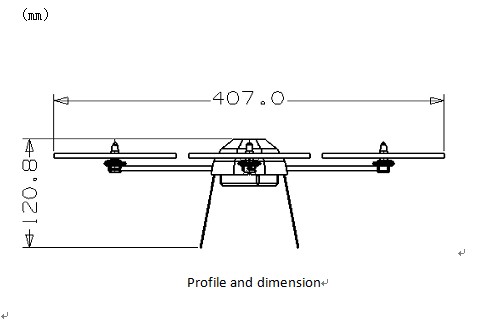

Aircraft size	298x298x243	mm	±3mm

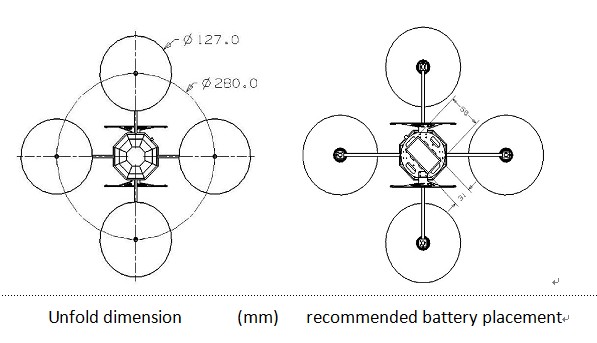

Maximum expandable size	475x475x128	mm	±3mm
Motor to motor	Diagonal distance between two motor centers	Mm	±3mm
Battery	liPo 2S 850MaH 15c	Standard configuration	1300mAh is usable
Unit ARF weight	No battery, receiver, applicable load	165grams	±5grams
Takeoff weight	2S 850mAh battery, receiver	230grams	Standard configuration

Includes:
1x Pre-installed aircraft main body, including brushless ESC, flight control panel, motor.
4x propellers (positive and negative)
