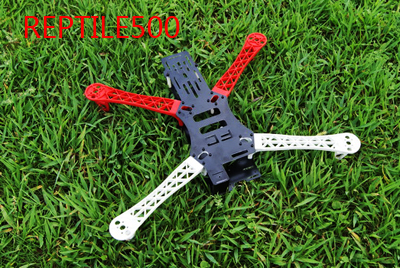

REPTILE500 4-axial/Xcopter DIY Frame

REPTILE500 4-axial/Xcopter DIY Frame - Standard Edition

Motor spacing(distance between motor axles, cross side): 500mm
Weight: 346g
Mode: 4-axial, X mode
Material: engineering plastics
Landing skid type: No
Motor mounting seat spacing: 16cm/ 19cm

Suggested setting (not included):
brushless motor: HL 3525 series or HiModel 2212-2217 series or AX 2810Q.
KV range: 3S Lipo 800-1100KV; 4S Lipo 600-700KV
Suitable camera: Gopro HD19 camera etc
Propeller size: 10-11inch 2-blade; 8-9 inch 3-blade

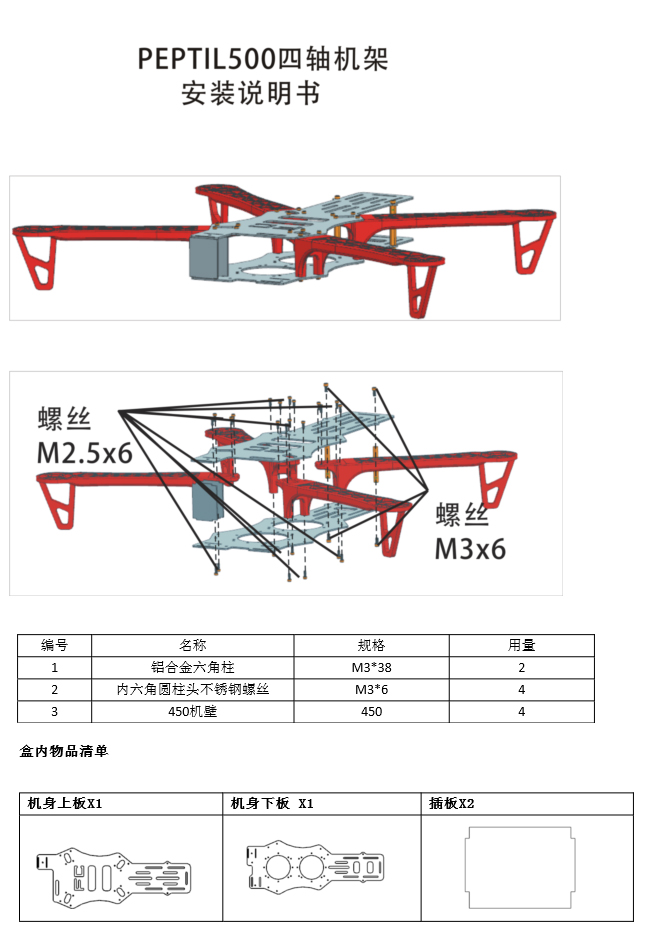

* Not assembled, camera mount/tilt sold separately.

Includes:
2 x central boards
4 x arms
1 x screw bag

Average Customer Review: 5 stars

3 customer review(s). [Write a review/question]

psiny

Grade:

this frame naza lite without gps ($55.15 himodel price) are good and stable.

real weight : upeer lower plate two fpv plate 4arms spacer bolts = 325g

more pic and weight of each plate : http://wapiduck.tistory.com/328
click to view

November 29 2014 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

R****mptioner
STD member

Question :
How stiff are the arms on these?
June 24 2013 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]

Discussion of this question:

I have used this quad and the arm is a bit softer compared to RCTimer ones.
-- Jun 28 2013 by e****aja

w****iano

Grade:

A very well constructed and good quality frame. The different colour arms and layout makes judging the orientation much easier. With a good flight controller and good balanced props and motors, this frame is an excellent aerial and FPV video platform

Highly recommended!
December 16 2012 Was this review helpful to you?

Yes [ 1 ]

No [ 0 ] [Reply this review]

Discussion of this review:

How stiff are the arms? there are 2 different types/sets of these around, one of them is useless due to the arms being too soft.
-- Jun 24 2013 by R****mptioner
