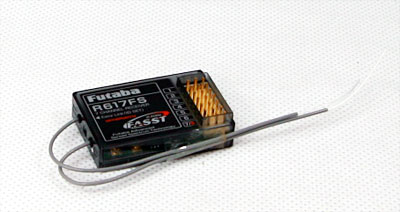

2.4G Futaba 7-Channle FASST Receiver R617FS

●High sensitivity receiver weighs only 9.8g without case yet is a full range system for all aircraft from giant scale to park flyer applications, no need to buy separate receiver for specific aircraft.
●Dual Antenna Diversity allows 2.4GHz FASST Futaba transmitter to select the best reception between the two receiver antennas with no signal loss.
●Rubber grommets installed where antennas exit to eliminate stress and fraying of the two antenna wires

Receiver: FASST Receiver R617FS 2.4G
Size: 41.6 x 27.5 x 9.2mm
Power Requirement: 4.8 - 6V
Current Drain: 80mA (at no signal)
Weight: 9.8g

	Modules
Transmitters	TM-7	TM-8	TM-10	TM-14
7U	Yes	Yes	.	.
8U	Yes	Yes	.	.
9C	Yes	Yes	.	.
9Z	Yes	Yes	.	.
T10C	Yes	Yes	Yes	.
12FG	.	.	.	Yes
12Z	.	.	.	Yes
14MZ	.	.	.	Yes

		Receivers
Transmitters		R603FF	R603FS	R604FS	R606FS	R616FFM	R607FS	R617FS	R608FS	R6014FS	Protocol Selection
3PM 2.4GHz		Yes	Yes	.	.	.	.	.	.	.	.
3PKS 2.4GHz		Yes	Yes	.	.	.	.	.	.	.	.
3VCS 2.4GHz		Yes	Yes	.	.	.	.	.	.	.	.
3GR 2.4GHz		Yes	Yes	.	.	.	.	.	.	.	.
4PK 2.4GHz	3ch Mode	Yes	Yes	.	.	.	.	.	.	.	Via Screen Selection
4PK 2.4GHz	4ch Mode	.	.	Yes	.	.	.	.	.	.	Via Screen Selection
6EX 2.4GHz		.	.	.	Yes	Yes	Yes	Yes	.	.	.
7C 2.4GHz		.	.	.	Yes	Yes	Yes	Yes	.	.	.
TM-7(*)		.	.	.	.	Yes	Yes	Yes	.	.	.
TM-8(**)	7ch Mode	.	.	.	.	Yes	Yes	Yes	.	.	Via Switch
TM-8(**)	8ch Mode	.	.	.	.	.	.	.	Yes	Yes	Via Switch
T10C 2.4GHz (with TM-10)	7ch Mode	.	.	.	Yes	Yes	Yes	Yes	.	.	Via Screen Selection
T10C 2.4GHz (with TM-10)	Multi-channel Mode	.	.	.	.	.	.	.	Yes	Yes	Via Screen Selection
TM-14	7ch Mode	.	.	.	Yes	Yes	Yes	Yes	.	.	Via Screen Selection
TM-14	Multi-channel Mode	.	.	.	.	.	.	.	Yes	Yes	Via Screen Selection

(*)(**) Set the transmitter's modulation as "PPM" to use the TM-7, TM-8.
(**) With selection of "7ch" or "8ch" mode via switch, the receivers above listed are available.
With R6014FS, available channel is limted as 8ch since the transmitter's limitation. With T7U, the R608FS and R6014FS are available with "8ch" mode but available channel is limited as 7ch since the transmitter's limitation.

Includes:
1 x FASST Receiver R617FS 2.4G
