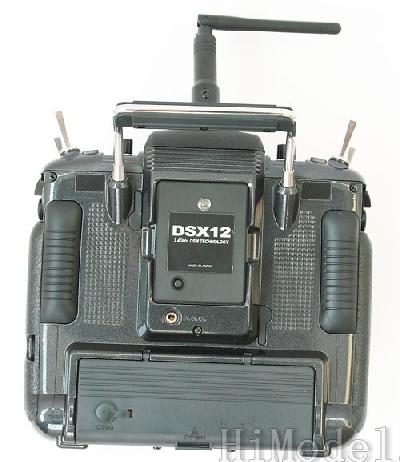

THIS IS THE LATEST INTEGRATED VERSION, THE OBVIOUS DIFFERENCE IS THAT THE ANTENNA IS ON TOP OF THE TRANSMITTER, INSTEAD OF BEHIND THE TRANSMITTER ON RF MODULE.
Transmitter:
*Backlit screen
*Ergonomic magnesium case
*Digital 3 +1 trims(3 digital + 1 analog [throttle]trim)
*Newly designed ball bearing gimbals
*The choice of a fully integrated 2.4GHz Spektrum system or Module-based system that allows the easy band switch from 2.4GHz Spektrum technology to 72MHz.
*The highest level of sophisticated programming for three model types: Airplane,Helicopter,Sailplane.
*Rolling selector input
* Flight mode naming
*50-model memory
*Patented Dualink Technology(2.4GHz system only)
*ModelMatch (2.4GHz system only)
*ServoSync
Receiver:
*12 channnels
*1 internal receiver
*3 remote receivers
*patented multilink technology.
*2 types fo failsafe: smartsafe and preprogrammed failsafe
*Instant quickconnect(w/brown-out detection) should a power interruption occur
*flight log compatible
Specifications:
Transmitter:
Model Number:(JRP1200 12X 2.4/JRP1210 12X MV)
Number of channels:12
Band:2.400-2.483GHz
Spectral capacity:40 simultraneous systems
Transmitter current: 180mA/DSM2;280mA/DSM1;200mA/PCM.
Resolution:2048
Receiver:
Number of channels:12
Modulation:DSM2
Band:2.400-2.483GHz
Dimensions(WxLxH):1.48 x 2.1 x 0.628 in
Weight:main 0.7 oz(20 g)Remote 3g/0.2oz each
Current:70mA
Voltage Range:3.5 to 10V
Resolution:2048
* Made in Japan.
* We only accept bank wire transfer (T/T) or western union money transfer for new customers for this product.
Includes/Requires:

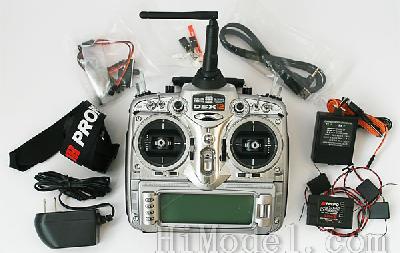

Includes:
1 x JR 12X W/ 2.4G DSM2 RF moduel Transmitter

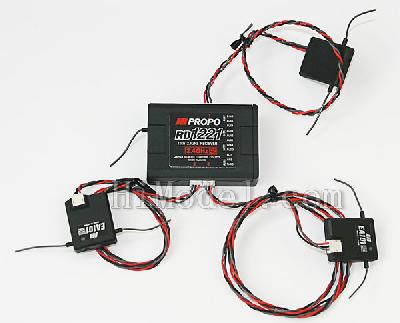

1 x JR RD1221 12-channel 2.4G receiver(w/3 remote receiver)
1 x 8H2000SC transmitter NiMh battery,9.6V/2000mAh
1 x JR RX & TX battery charger NEC-J12C, DC 15V input, 12V & 5.8V output
1 x wall charger adaptor NEC-J12A, input 100-240V, output DC 15V, two square pins
1 x instruction manual (English)

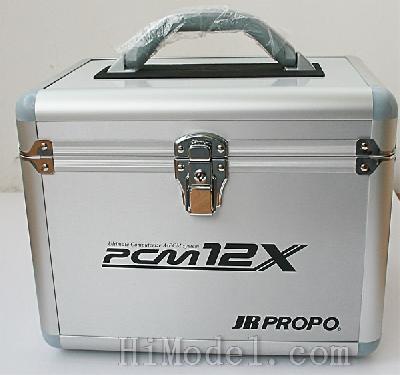

1 x aluminum case
1 x bind plug
1 x neck strap
1 x computer interlink wire
(*No RX battery, no servos)
