   Radios Servos & Accessories Digital Servo & Accessories BlueArrow 5.4g/0.6kg-cm Torque Ultra-micro Digital servo Metal Gear D0501MG
SKU:  0501MG
Browse Blue Arrow

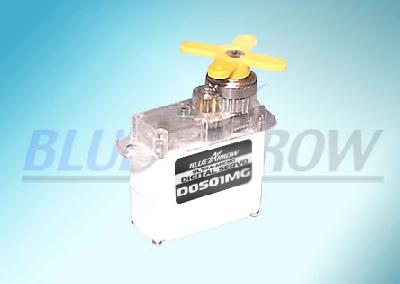

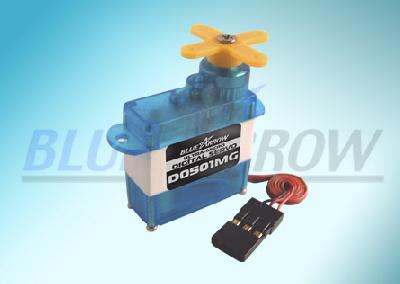

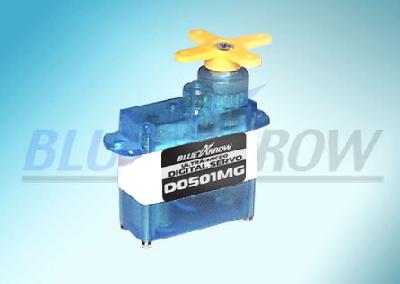

BlueArrow 5.4g/0.6kg-cm Torque Ultra-micro Digital servo Metal Gear D0501MG
Customers rating.
Add To Wish List
Bookmark and Share
Added:2008/12/27
Updated:2008/12/27
Follow Us on:

803555863452


PRICE(USD):
    $10.99   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: BlueArrow  5.4g/0.6kg-cm Torque  Ultra-micro  Metal gear  Digital servo  D0501MG

Features:
Features:
Amplifier type: Digital Pulse Width /Fet Driver
Potentiometer Type: PT6
Potentiometer Resistance: 10K Ω
Motor Type: 5F Coreless Motor

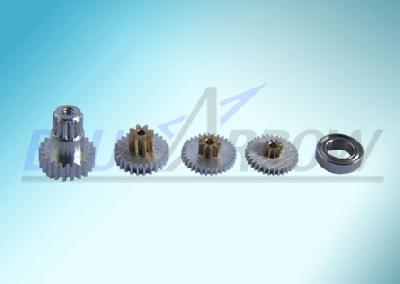

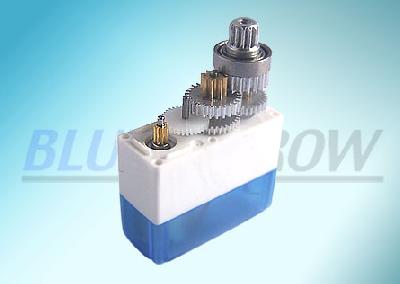

Gear Material: Metal Gear
Gear Series: 5
Gear Ratio: 1:400
Output gear diameter: Φ3.8 mm(Φ0.15 in)
Crust Material: Transparent PC
Crust Color: Blue
Splined Horns: 5 Class
Top Ball Bearing: MR 47 Ball Bearing
Plug Specification: JR
Connector Wire Length: 130mm (5.12 in)
Connector Wire SPEC: 0.08mm*20
Servo Weight: 4.7g(0.17oz)
5.4g(0.19oz)including wire)

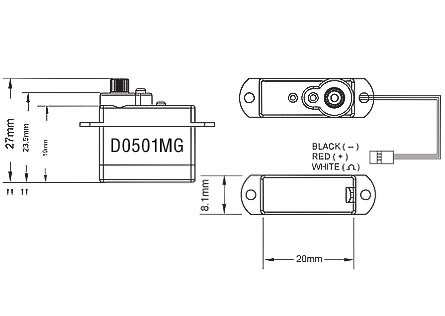

Size: 20mm*8.1mm*27 mm
(0.79in*0.32in*1.06 in)
Specifications:
Technical Data:
Control System: Pulse Width Control
Speed: 0.09sec/60°@4.8V
0.07sec/60°@6.0V
Test Voltage: 4.8V/6V
Idle Current: 4mA
Running Current: 150mA
Hold Current: 300 mA
Operating Angle: 45°/ 500µs
Pulse Width Scope: 1000µs-2000µs
Torque: 0.50kg•cm@4.8V
6.94oz•in @4.8V
0.60kg•cm@6.0V
8.33oz•in @6.0V

Includes/Requires:
Includes:
1 x digital servo with servo horns
Customer Reviews:
Average Customer Review: 3 stars   1 customer review(s).   [Write a review/question]

F****T.ORDER
Grade:
very good servo with hight speed and enought torque for EDF 64mm model at full throttle . Good metal gear quality and ball bearing give hight precision
October 07 2009     Was this review helpful to you?   Yes [ 3 ]   No [ 0 ]    [Reply this review]
