   Radios Radio Sets RF Module / Receivers & Accy CORONA 6-Channel 2.4G Spread Spectrum/FASST Compatible Receiver W/S.Bus R6FA-SB
   Radios Receivers & Accessories 5 - 6 Ch. Receivers
SKU:  R6FASB
Browse CORONA

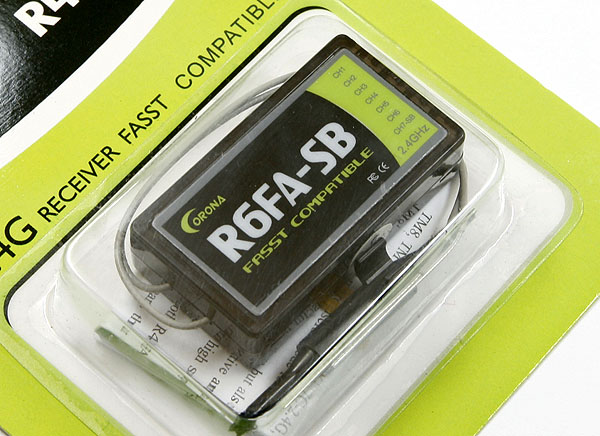

CORONA 6-Channel 2.4G Spread Spectrum/FASST Compatible Receiver W/S.Bus R6FA-SB
Customers rating.
Manual:
Add To Wish List
Added:2012/08/24
Updated:2013/04/10
Follow Us on:


  Tags: 2.4G  2.4Ghz  CORONA Receiver  FASST  Spread Spectrum

Features:
Compatibility:
The CORONA 2.4GHz Spread Spectrum FASST Compatible Receiver is designed for use with FUTABA’s FASST 2.4GHz transmitters; including the 3PM,3PKS,3VCS,3GR,4PK(S),TM7, TM8, TM10, TM14 and the T6EX-2.4G, 7C-2.4G, 8FG, 10CG, 12FG. The R4FA-SB and R6FA-SB receivers supply a more useful mode for users. Both the R4FA-SB and R6FA-SB support FUTABA’s FASST air system and surface system. The R4FA-SB supports 7-channel with continuous PPM (positive and negative) output ,RSSI output and S.BUS output, R6FA-SB supports 6 channel high speed PPM(HS) mode to optimize helicopter response control and S.BUS output.
Under S.BUS output mode, both R4FA-SB and R6FA-SB supply 12 proportional channels and 2 DG channels. Therefore, the R4FA-SB or R6FA-SB becomes 14-channel receivers when using S.BUS output.
Specifications:
Type: R6FA-SB

Channel number: 4ch
Operating Current: 50mA max
Operating Voltage: 3.6 ~10V
Latency: R4FA-SB’s description
14mS for independent 4 channel output and S.BUS output @ FASST multi-channel mode
21mS for Continuous PPM output and RSSI output@ FASST multi-channel mode
16mS for independent 4 channel output and S.BUS output @ FASST 7ch mode
24mS for Continuous PPM output and RSSI output@ FASST 7ch mode
14mS for independent 3 channel output@ FASST surface system C1 CODE mode
R6FA-SB’s description
7mS for independent 6 channel (HS) output@ FASST multi-channel mode
14mS for independent 7 channel (LS) output and S.BUS output @ FASST multi-channel mode
8ms for independent 6 channel (HS) output@ FASST 7ch mode
16mS for independent 7 channel (LS) output and S.BUS output @ FASST 7ch mode
14ms for independent 3 channel output@ FASST surface system C1 CODE mode

Sensitivity: about -100dBm
Operation temperature:
-10~80 deg C

channel number: 6
Includes/Requires:
Includes:
1 x 2.4G FASST receiver R6FA-SB
