   Radios Servos & Accessories Mini / Micro Servos Corona 4.2kg / 0.05sec / 32g Metal Gear High Voltage Digital Servo DS-319HV
SKU:  DS319HV
Browse CORONA

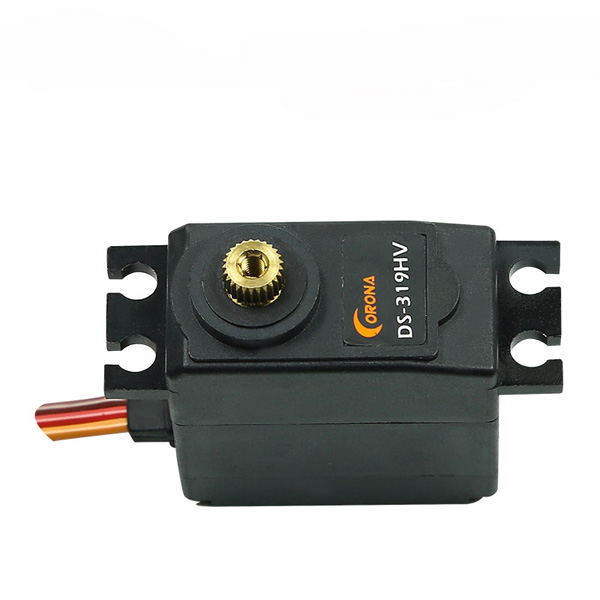

Corona 4.2kg / 0.05sec / 32g Metal Gear High Voltage Digital Servo DS-319HV
Customers rating.
Add To Wish List
Added:2020/10/09
Updated:2020/10/09
Follow Us on:



  Tags: Corona  4.2kg  0.05sec  32g  Metal  Gear  High  Voltage  Digital  Servo  DS-319HV

Specifications:

Corona 4.2kg / 0.05sec / 32g Metal Gear High Voltage Digital Servo DS-319HV


Item No DS319HV
Size 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight 32g
Operating Voltage 6.0V / 7.4V
Operating Current 320mA / 420mA
Operateing speed 0.06sec.60º/ 0.05sec.60º
Stall torque 3.5kg.cm / 4.2kg.cm
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃
Includes/Requires:
Includes:

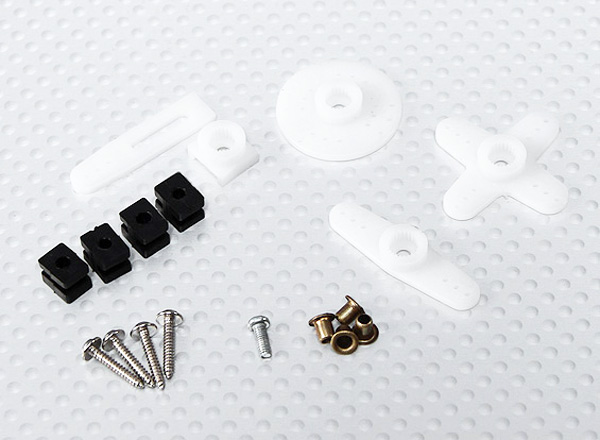

1 x servo with servo horns
