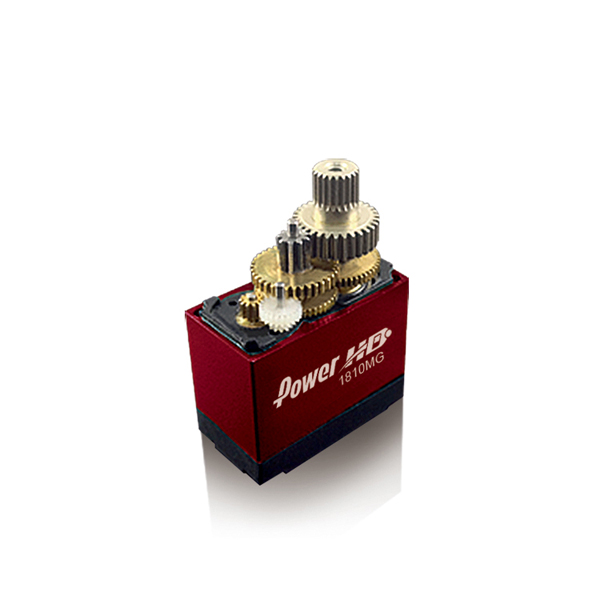

Power HD 15.8g/ 3.9Kg-cm Torque Half Metal Digital Servo HD-1810MG
Customers rating.
Add To Wish List
Added:2008/06/21
Updated:2021/03/06
Follow Us on:



  Tags: Power  HD  15.8g  3.9Kg-cm  Torque  Half  Metal  Digital  Servo  HD-1810MG

Features:

HD-1810MG

Torque(4.8V): 3.10 kg-cm (43.05 oz/in)
Torque(6.0V): 3.90 kg-cm (54.16 oz/in)
Speed: 0.16 sec (4.8V) │ 0.13 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 15.8 g (0.56 oz)
Bearing Type：Ball Bearing x 1
Motor Type：DC Motor
Gear Type：Coppe & Plastic
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 250hz
Size：22.8 x 12.0 x 29.4 mm ( 0.90 x 0.47 x 1.16 in)

Specifications:
Item Gear
Type		 Type Dimension(mm) Speed(sec/60°)@6.0 Voltage Torque(Kg-cm)
@6.0 Voltage		 Weight
(g)
1 Metal HD-9150MG 40.7*20*42.4 0.18 16.0 61.0
2 Metal HD-9110MG 40.7*20*39.4 0.19 10.5 49.0
3 Half Metal HD-7150MG 40.7*20*39.4 0.14 7.20 49.0
4 Plastic HD-5680BB 40.7*20*39.4 0.14 6.50 42.0
5 Plastic HD-4180BB 40.7*20*37.0 0.17 4.10 41.0
6 Half Metal HD-2213MG 22.8*12*29.4 0.16 4.60 15.8
7 Half Metal HD-1810MG 22.8*12*29.4 0.13 3.90 15.8
8 Half Metal HD-1581HB 22.8*12*25.4 0.16 2.60 12.3
9 Half Metal HD-2216MG 22.8*12*29.4 0.13 3.90 15.8
10 Half Metal HD-2216HB 22.8*12*25.4 0.09 1.60 13.6
11 Metal HD-9660MG 40.3*20*37.2 0.16 20.0 52.4
12 Plastic HD-3688HB 35.0*15*29.2 0.11 4.60 26.0
Includes/Requires:
Includes:

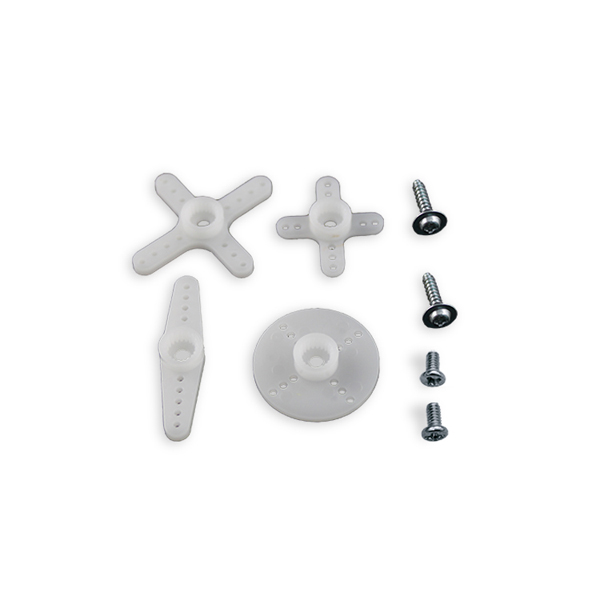

1 x digital servo with servo horns
