   Radios Radio Sets 2.4G Radio System RadioLink 2.4GHz 10-Channel Radio Set AT10 - Grey
   Radios Radio Sets 10 - 14+ Channel Radios
SKU:  AT10GR

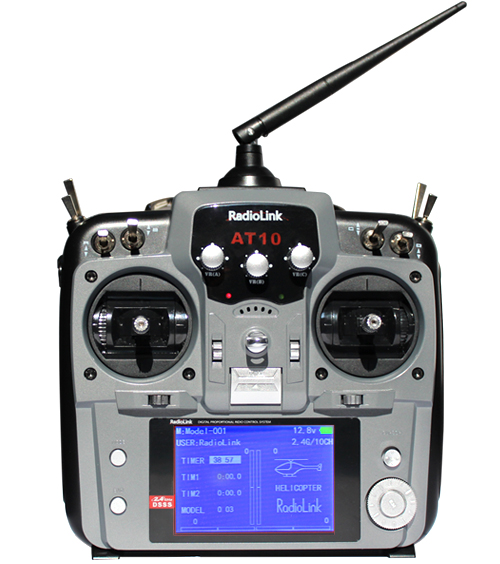

RadioLink 2.4GHz 10-Channel Radio Set AT10 - Grey
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2014/03/13
Updated:2016/06/11
Follow Us on:

A61108444215

PRICE(USD):
    $163.44   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: Radiolink 2.4g 10ch at10

Features:
Feature
1.Support English & Chinese Menu, Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
2. 3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
3. Make very setting clear and exactly output result.
4.Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
5.High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
6.Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
7.Unbelievable price,high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.
Specifications:

RadioLink 2.4GHz 10-Channel Radio Set  AT10

Specification
1.Dimension:18×9.5×22cm;
2.Weight:0.95kg;
3.Frequency:2.4GHz ISM band(2400MHz~2485MHz);
4.Modulation mode:QSPK;
5.Channel bandwidth:5.0MHz;
6.Spread spectrum:DSSS;
7.Adjacent channel rejection:>38dBM;
8.Transmitter power:<100mW(PCB testing),
                     <20dBm(3 meter air testing);
9.Operating Voltage:8.6~15V;
10.Operating Current:<105mA;
11.Control distance:800 meters ground;
12.Channel:10 Channel,8~10 channel are customizable;
13.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
14.Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
15.Screen:16 colorful screen,size 78×52mm,320*480 pixel.
Includes/Requires:
Includes:
1 x transmitter
1 x receiver R10D 10Ch

Requires:
8 x AA size batteries

Customer Reviews:
No customer review yet.   [Write a review/question]

H****zi
Question :
HI
WOULD YOU PLEASE TELL ME ABOUT SERVO CONNECTOR OF RECIVER. IS IT COMPATIBLE WITH JR/FUTABA OR...

June 20 2016     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
Discussion of this question:

The servo connector will be compatible with standard sizes of both JR and Futaba. Sometimes Servo connectors have an "extra" tab called a "key". This "key" can be removed with a razor blade, knife or side cutters to fit in standard non-keyed (JR) receivers or extensions.

-Lee
-- Aug 03 2017 by ldeese


narpat00****oo.com
Question :
Himodel technical staff to answer this;

1. Is the firmware open source ?

2. Is your transmitter cross compatible with other DSSS receivers of other brands ?

3. Is the receiver of this transmitter compatible with other brand DSSS transmitters ?

4. The receiver has four pin data port, what protocol it is ? How many sensors does the receiver support ?

5. Does your receiver has RSSI
March 25 2014     Was this question helpful to you?   Yes [ 3 ]   No [ 0 ]    [Reply this question]
