   Radios Radio Sets 2.4G Radio System RadioLink 2.4GHz 10-Channel Radio Set AT10 - Orange
   Radios Radio Sets 10 - 14+ Channel Radios
SKU:  RLAT10

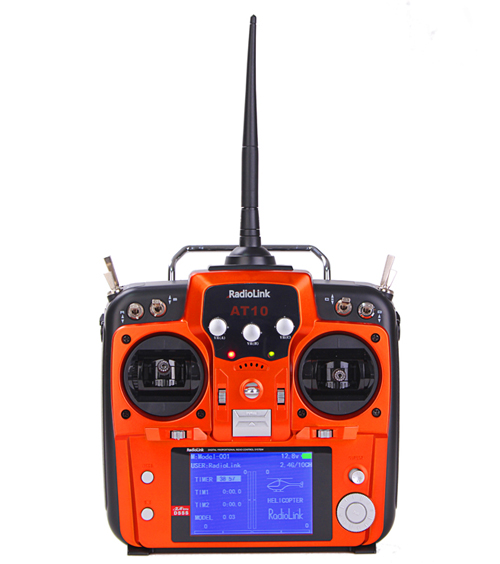

RadioLink 2.4GHz 10-Channel Radio Set AT10 - Orange
Customers rating.
Manual:
Add To Wish List
Bookmark and Share
Added:2014/03/13
Updated:2016/06/11
Follow Us on:

9R5140540470

PRICE(USD):
    $163.44   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: Radiolink 2.4g 10ch at10

Features:
Feature
1.Support English & Chinese Menu, Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
2. 3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
3. Make very setting clear and exactly output result.
4.Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
5.High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
6.Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
7.Unbelievable price,high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.
Specifications:

RadioLink 2.4GHz 10-Channel Radio Set  AT10

Specification
1.Dimension:18×9.5×22cm;
2.Weight:0.95kg;
3.Frequency:2.4GHz ISM band(2400MHz~2485MHz);
4.Modulation mode:QSPK;
5.Channel bandwidth:5.0MHz;
6.Spread spectrum:DSSS;
7.Adjacent channel rejection:>38dBM;
8.Transmitter power:<100mW(PCB testing),
                     <20dBm(3 meter air testing);
9.Operating Voltage:8.6~15V;
10.Operating Current:<105mA;
11.Control distance:800 meters ground;
12.Channel:10 Channel,8~10 channel are customizable;
13.Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
14.Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
15.Screen:16 colorful screen,size 78×52mm,320*480 pixel.
Includes/Requires:
Includes:
1 x transmitter
1 x receiver R10D 10Ch

Requires:
8 x AA size batteries

Customer Reviews:
Average Customer Review: 5 stars   1 customer review(s).   [Write a review/question]

ted1943
Question :
I love the AT10 Tx although the screen can be difficult to read in good daylight. However, the receiver I use is R9D which recently had a problem. After many flights totalling about 10 hours the Rx went into failsafe damaging the plane. The odd thing is it didn't recover from this failsafe condition until I eventually cycled the power on the plane. I knew the Tx was ok as I tried it with another model including a failsafe recovery. Has anyone else had this issue of the receiver completely locking up until its power is cycled? I've repaired the plane but can't chance using this radio if it could happen again. cheers, Ed
May 13 2016     Was this question helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this question]
