   FPV/ Aerial Photography Cameras/Video Recorder/Capture All-in-one 400mW 5.8G 32Ch Transmitter Integrated 1920 x 1080P HD Camera & Video Recorder SKY-HD01
   FPV/ Aerial Photography Video TX/RX & Accy.
SKU:  SKY-HD01
Browse BOSCAM

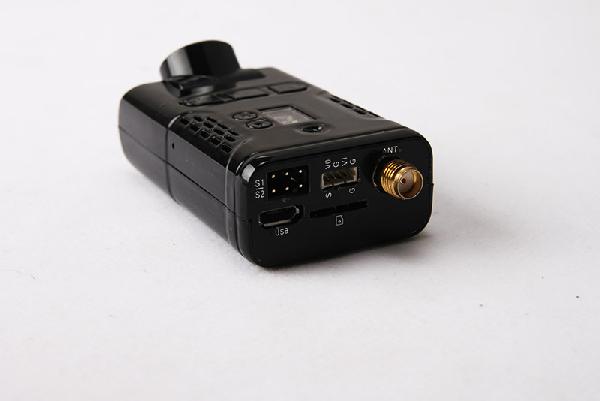

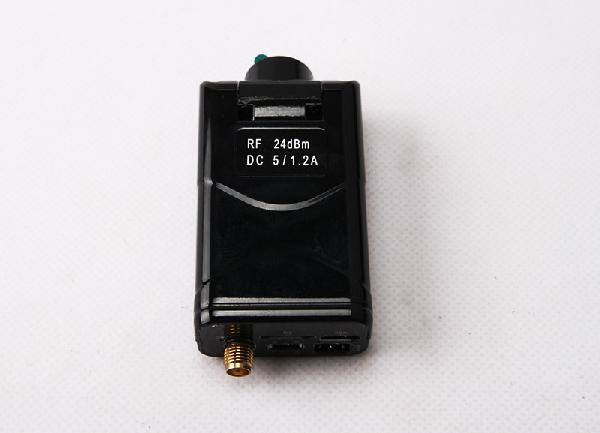

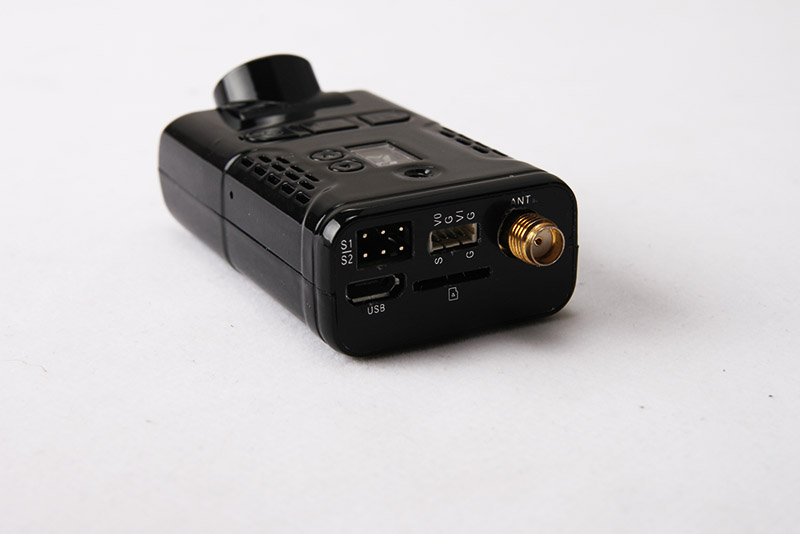

All-in-one 400mW 5.8G 32Ch Transmitter Integrated 1920 x 1080P HD Camera & Video Recorder SKY-HD01
Customers rating.
Add To Wish List
Added:2015/11/01
Updated:2018/03/23
Follow Us on:


  Tags: All-in-one 400mW 5.8G 32Ch Transmitter Integrated 1920 x 1080P HD Camera & Video Recorder SKY-HD01

Features:

Features:
1. Full HD 1080p 30fps
2. Built-in 4 Bands 32CH 5.8Ghz 400mw transmitter
3. LENS Rotation range: ±45 degrees
4. FOV angel: 150 degrees (Diagonal)
5. Support PWM remote control
6. Support OSD
Specifications:

Boscam All-in-one 200mW 5.8G Transmitter Integrated 1440 x 1080P HD Camera & Video Recorder








Camera

FOV

150 degrees (Diagonal)

LENS Rotation range

±45 degrees

Resolution

1920x1080p30,1280x720p60, 1280x720p30

Micro SD

Support to 32GB

Video Compression

h.264


JPEG

Record quality

High,Mid,Low

Microphone

Digital







Wireless Transmitter

ISM 5.8GHz 32 Channel, Transmitter.





Frequency

Band

CH 1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

A

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

B

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

E

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

F

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5880M

RF Output Power

24dBm±1dBm

RF Output Impedance

50ohm, SMA port

USB

  Micro USB 5Pin, High speed USB 2.0



Power Supply

DC IN

 DC 5 / 1.2A

Built-in Li-Ion battery

3.7V/ 500mAh

Dimensions

 65(L)X37(W)X20(H)mm (Not include prominent part)

Weight

    g

Operating Temperature

 0℃~+50


Includes/Requires:

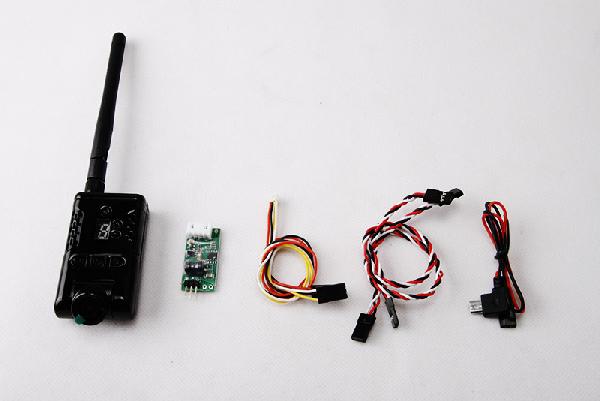

Includes:
1 x main body
1 x 2db antenna
1 x USB cable
1 x OSD cable
2 x TX wires
