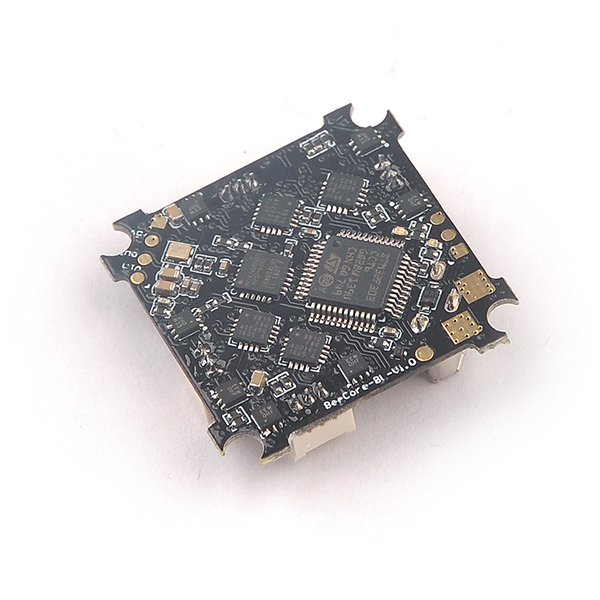

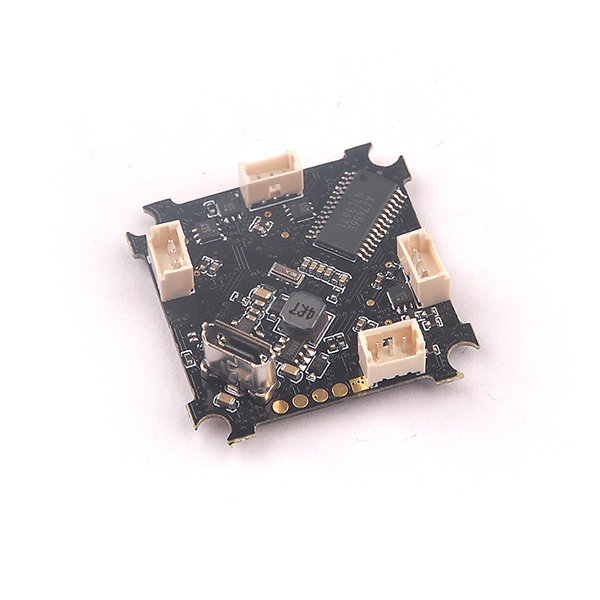

Beecore_BL F3 1S Brushless 4-in-1 Flight Controller Built-in OSD
Flight controller:
Firmware: betaflight_3.2.1_OMNIBUS
CPU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
Power supply: 1S Lipo / LIHV battery input (DC 3.6-4.35V)
BEC: Built-in 5V / 0.5A step-up circuit

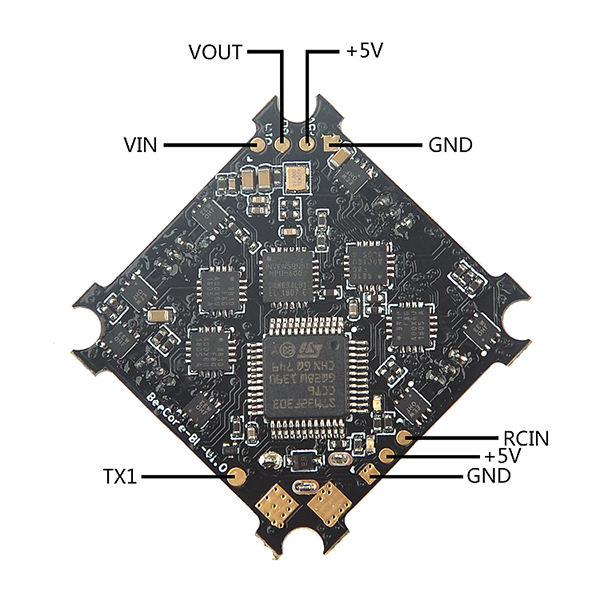

Compatible Receivers signal: PPM, SBUS, IBUS, Spektrum DSM2 / DSMX, 1024/2048.
Built-in OSD interface
Active buzzer interface
Dshot ESC ready
Blheli_S pass-through ready
Built-in voltage detection, alarm
Board size: 29MM * 29MM
Screw hole spacing: 36 * 36MM diameter 3.0MM
Board weight: 3.2 g

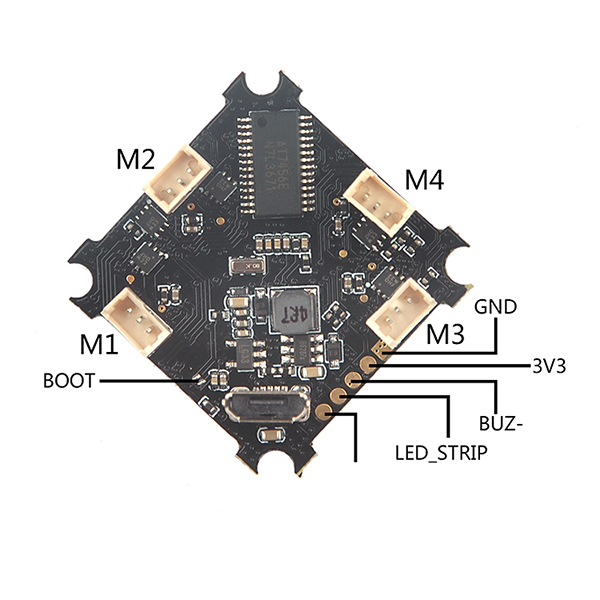

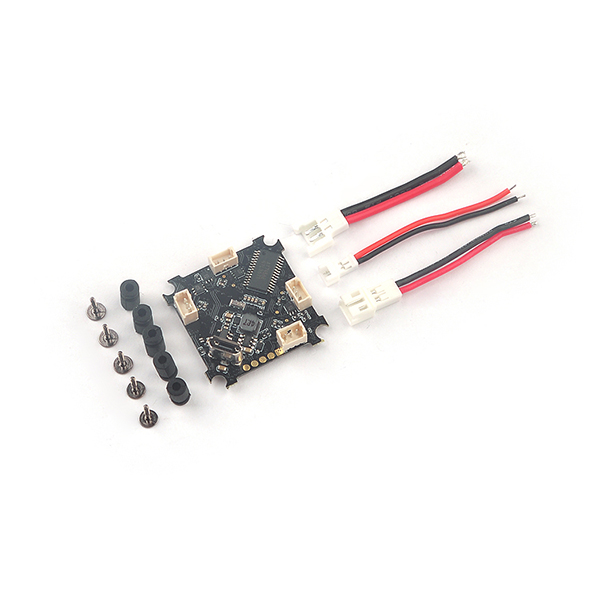

4x JST1.25mm 3pin plug soldered
ESC:
Power supply: 1S Lipo/LiHV battery
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
BLHELI_S Firmware target: O_L_5_REV16_6.HEX
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
