   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis HOBBYWING 60A / 80A 3-6S Electric Brushless Speed Controller (ESC) Type Platinum-60A V4 | New Professional V4 Edition
SKU:  PLT60A
Browse HOBBYWING

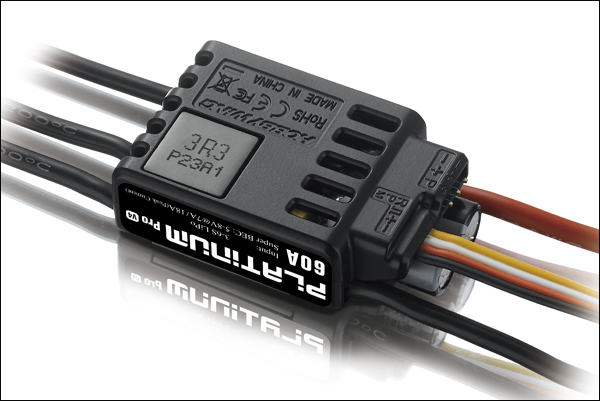

HOBBYWING 60A / 80A 3-6S Electric Brushless Speed Controller (ESC) Type Platinum-60A V4 | New Professional V4 Edition
Customers rating.
Manual:
Add To Wish List
Added:2016/01/09
Updated:2016/01/09
Follow Us on:



  Tags: Hobbywing  Electric speed controller  ESC  Platinum Serires

Features:
Specifications:

HOBBYWING 60A / 80A 3-6S Electric Brushless Speed Controller (ESC) Type Platinum-60A V4 | New Professional V4 Edition

Model Platinum 60A V4
Application 450-480 Class Heli (Propeller: 325-360mm
Input Voltage 3-6S LiPo
Cont./Peak Current (10s) 60A/80A
(Switch-mode) BEC 5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak
Separate Programming Port For connecting LCD Program Box/WIFI Express
Throttle Signal/BEC Output/RPM Signal Transmission Wire(s) White Throttle Signal Wire/Red & Black BEC Output Wires/Yellow RPM Signal Transmission Wire
Input/Output Wires 14AWG Input/Output Wires
Weight/Size 49g / 48x30x15.5mm





Includes/Requires:
Includes:
1 x ESC
