Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis Hobbywing 200A 6-14S HV Speed Control Platinum-200A-HV V4 (Professional, suit for 700/800 class Helicopter)
   Multi-rotors Electronic Speed Controller (ESC)
SKU:  PLTHV200
Browse HOBBYWING

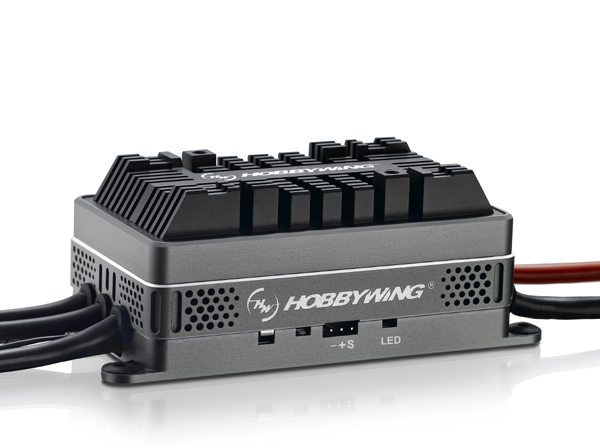

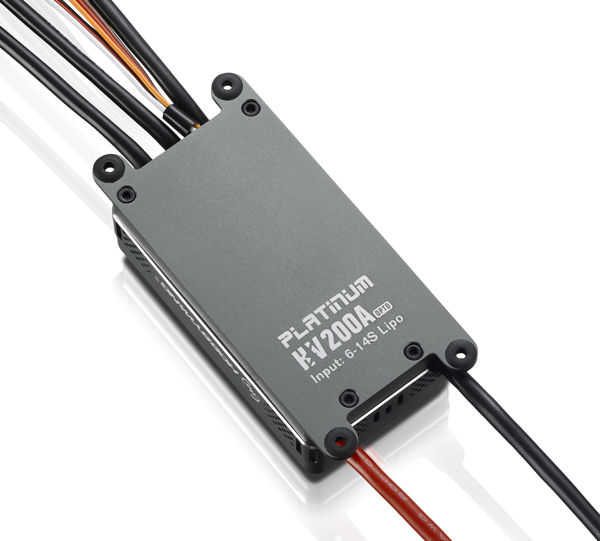

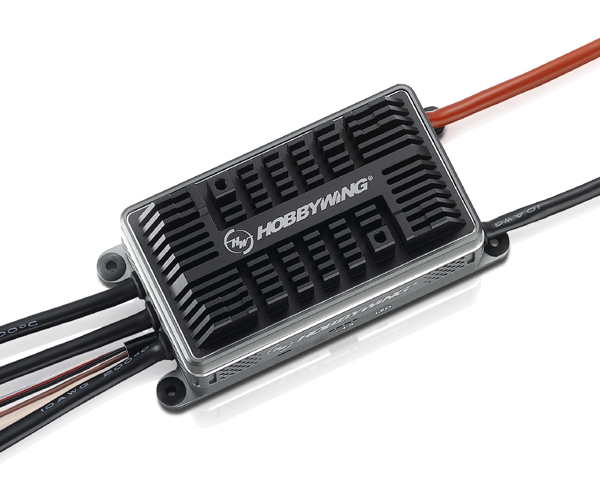

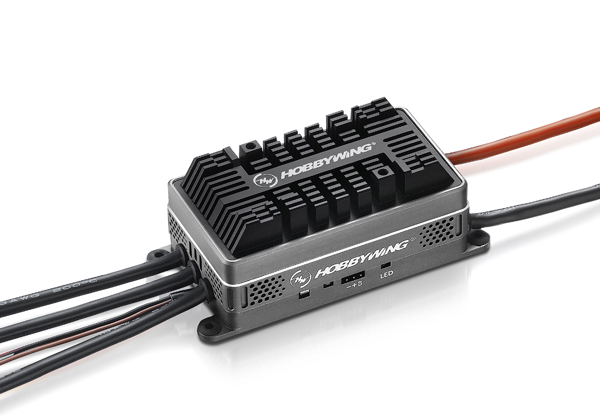

Hobbywing 200A 6-14S HV Speed Control Platinum-200A-HV V4 (Professional, suit for 700/800 class Helicopter)
Customers rating.
Manual:
Add To Wish List
Added:2015/11/01
Updated:2015/11/01
Follow Us on:



  Tags: Hobbywing 200A 6-14S HV Speed Control Platinum-200A-HV (Professional  suit for 700/800 class Helicopter)

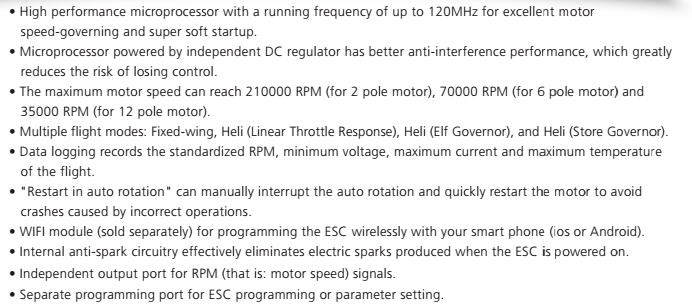

Features:


Specifications:

Hobbywing 200A 6-14S HV Speed Control Platinum-200A-HV V4 (Professional, suit for 700/800 class Helicopter)

Specification

Model

Platinum-200A-HV V4
Main Application 700-800 classes helicopter
Input 6-14S LiPo
Cont. / Burst Current Cont. 200A / Burst 250A (in 10 sec)
BEC 5-8V (0.1V increment)
BEC current (cont./bust) NO
Separate Programming Port Used to connect LCD programming card or WIFI module, also can power the cooling fan
Throttle Signal and RPM signal Throttle & RPM signals are transferred via optical coupler
Input / output Wires Input:10AWG / Output:10AWG
Weight/Size 305g (including wires) / 106 x 50 x 40mm
Includes/Requires:
Includes:
1 x HV ESC
