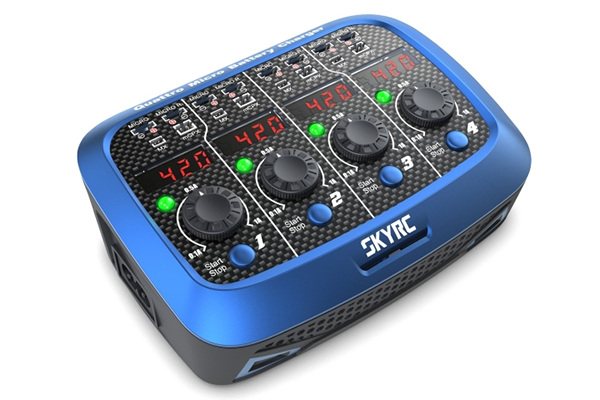

SKYRC 100-240V AC 4x 1 Cell Quattro Micro Lipo Charger (Compatible with Micro, Micro R, MX, mCPX plugs)

Quattro Micro Battery Charger employs the circuit that features four totally independent but identical power outputs which are powered 4W each. It is designed for charging single cell LiPo.Insert the lead to the right connector in each port,the charger will charge 4 batteries at the same time. And the charging current can be adjusted from 0.1-1A by dial,the charging capacity and cell voltage can be displayed in each 4-digital LED Indicators.

Four totally independent but identical power outputs which are powered 4W each are capable of charging four 1S LiPo packs at the same time and fully independently.


	3 connectors for Multiple 1S Micro Heli/Airplane Lipo batteries utilized by E-Flite, LOSI Micro.


	Charging Capacity(mAh)		Battery Voltage(V)

	Charging Current(A) (0.10-1.00A)		Status: Charging process finish.

Worldwide operation: need not any alternative switcher, worldwide safe operation, convenient to use at home or at the track.

Maximum protection: short circuit protection; over current protection; battery reverse polarity protection and DC input voltage protection.

SKYRC 100-240V AC 4x 1 Cell Quattro Micro Lipo Charger (Compatible with Micro, Micro R, MX, mCPX plugs)

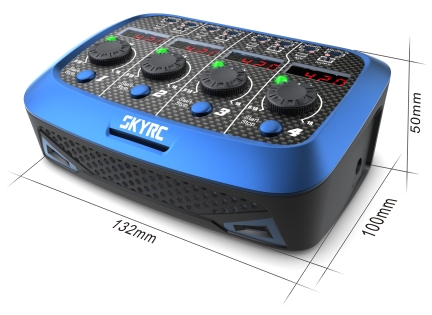

	Dimension

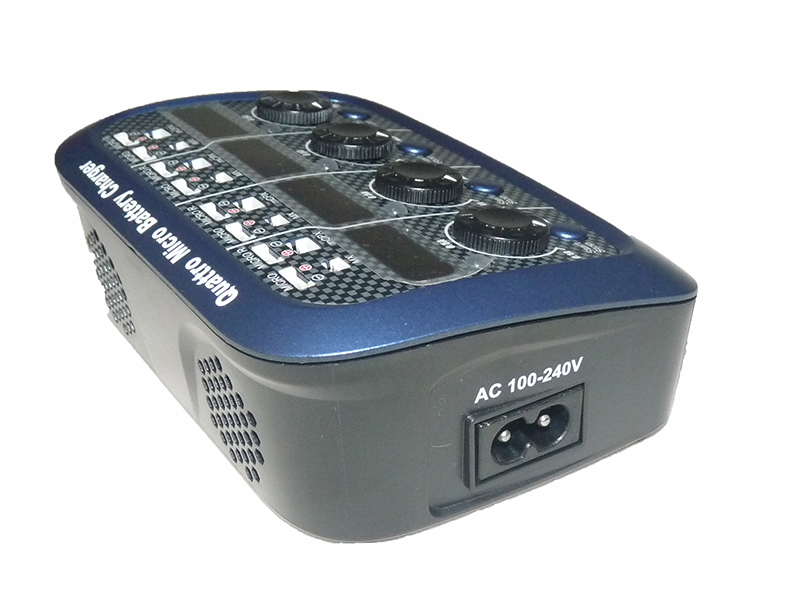

	AC Input		100-240V

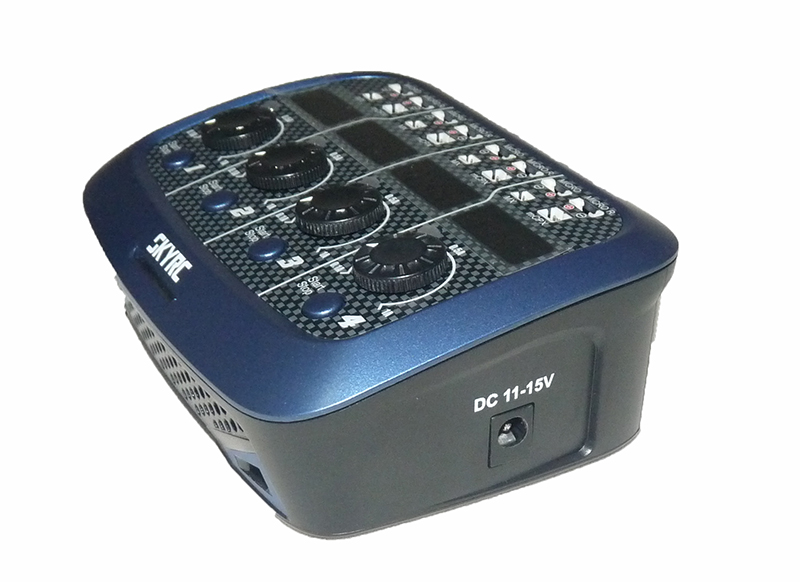

	DC Input		11-15V
	Charge circuit power		4X4W±10%
	Charge current range		0.1-1.0A±10%
	Battery type		4X1 cell LiPo
	Battery connector type		LOSI Micro/Walkera/MX/mCPX
	Working temperature		0-50℃
	Net weight		280g

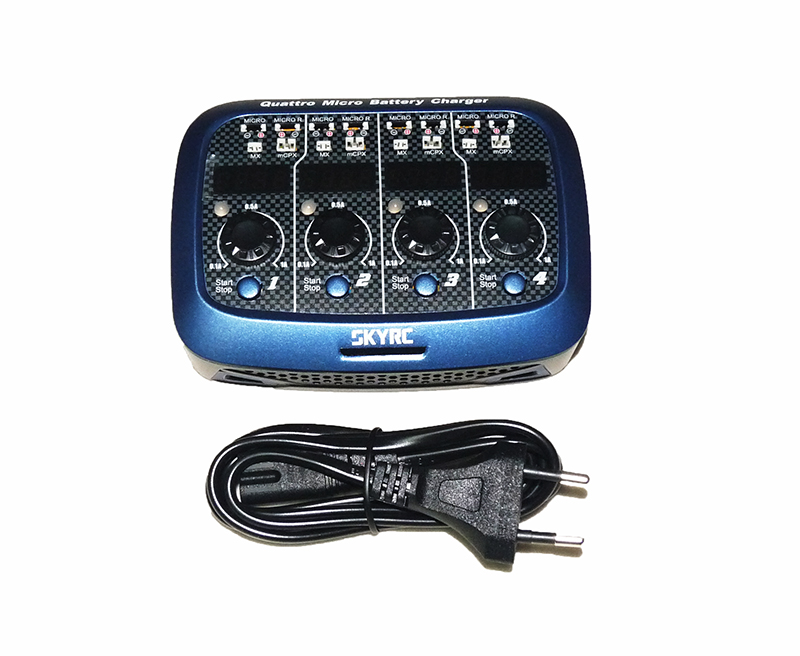

Includes:
1 x charger
