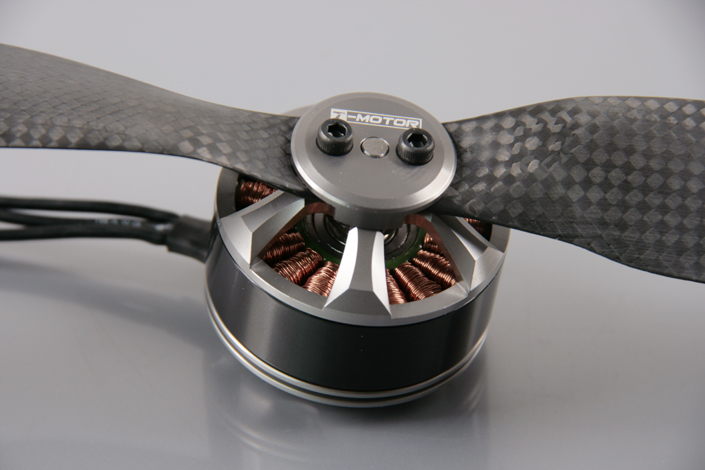

T-Motor Navigator Series MN3508 580KV Outrunner Brushless Motor for Multi-copter (3-4S)
Customers rating.
Add To Wish List
Added:2013/11/07
Updated:2013/11/07
Follow Us on:


  Tags: multi-rotor  brushless motor  T-motor

Features:
\
\
\
\

\
\
\
\
\
\



\

Specifications:

T-Motor Navigator Series MN3508 580KV Outrunner Brushless Motor  for  Multi-copter  (3-6S)



Specifications:
KV.............................................................................................................580
Configu ration................................................................................12N14P
Stator Diameter................................................................................35mm
Stator Length.......................................................................................8mm
Shaft Diameter....................................................................................4mm

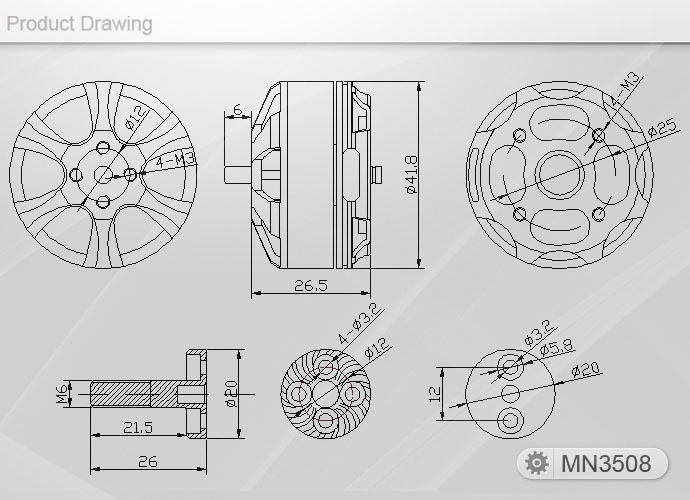

Motor Dimensions (Dia.*Len).......................................Φ41.8×26.5mm
Weight (g)...............................................................................................82g
ldle current(10)@10v(A)......................................................................0.4A
No.of Cells(Lipo)..................................................................................3-4S
Max Continuous current(A)180S.........................................................18A
Max Continuous Power(W)180S.....................................................400W
Max. efficiency current..............................................................(3-9A)>82%
internal resistance...........................................................................110mΩ


\



















Includes/Requires:

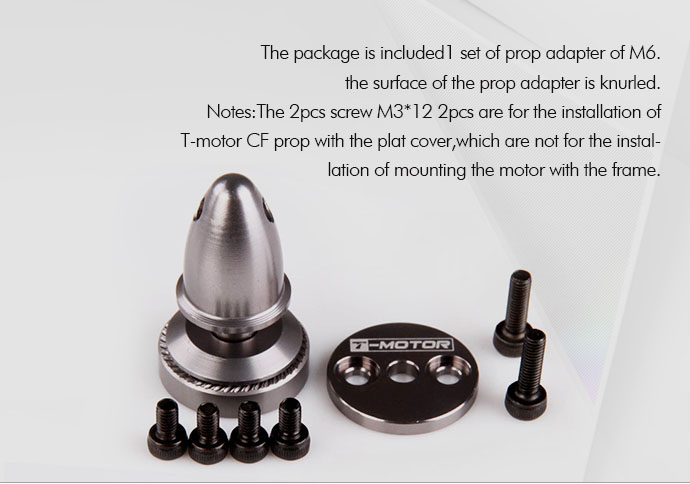

Includes:
1 x motor

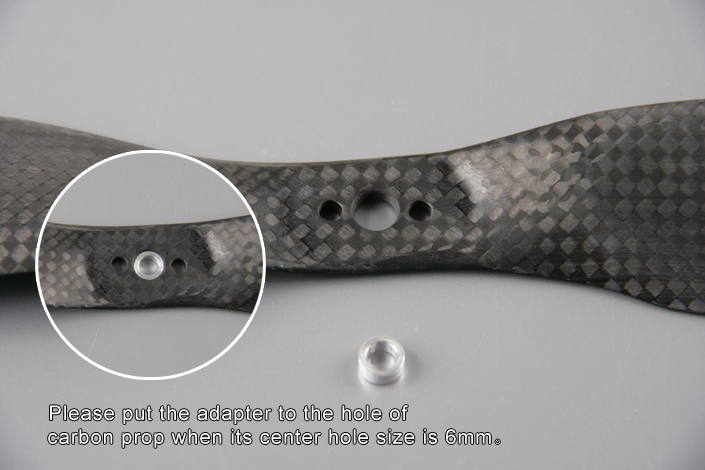

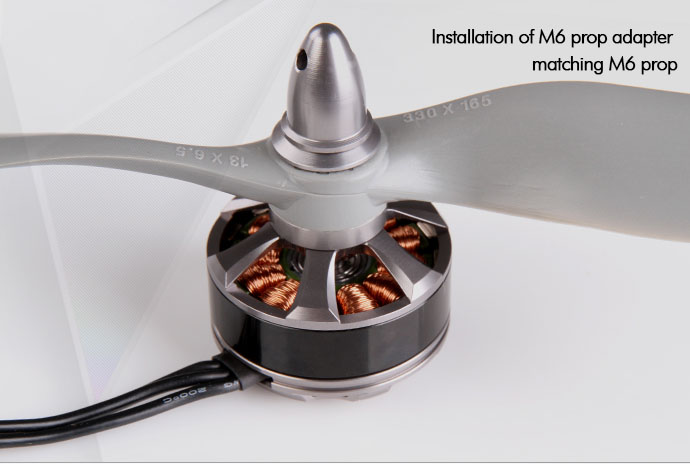

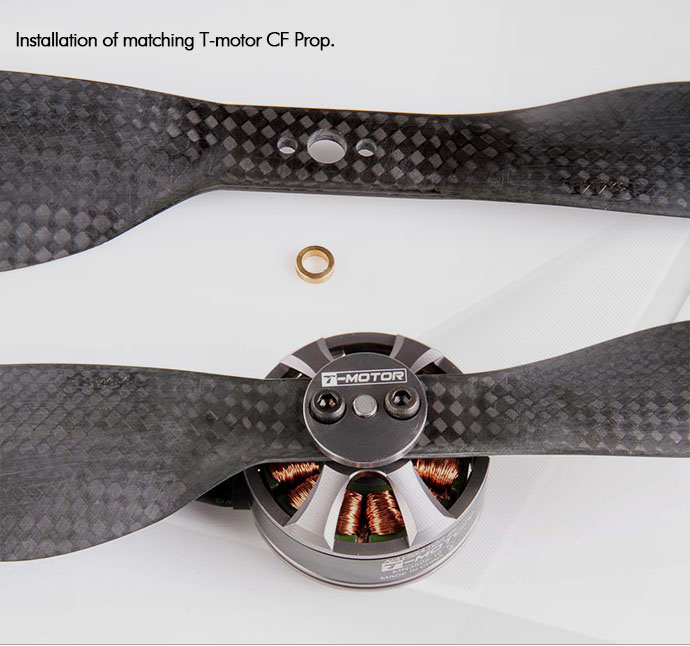

1 x prop adaptor
1 x prop holding down plate for direct mounting
1 x screws bag
