Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Cars eZRun-18A-SL Brushless ESC + 18T/2030 (5200KV) Motor + Pro-card Combo for 1/18 Car Sportful
SKU:  EZ18CB18
Browse HOBBYWING

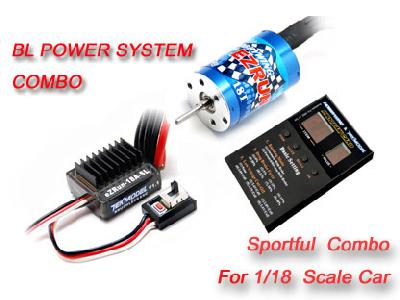

eZRun-18A-SL Brushless ESC + 18T/2030 (5200KV) Motor + Pro-card Combo for 1/18 Car Sportful
Customers rating.
Add To Wish List
Added:2009/02/09
Updated:2018/07/12
Follow Us on:


  Tags: eZRun-18A-SL  Brushless ESC  18T (5200KV) Motor  Pro-card  1/18   Sportful car  power system

Features:
3 Features
3.1 Compatible with all sonsorless brushless motor.
3.2 Use top quality electronic components to enhance the current endurance ability of the ESC.
3.3 Excellent start-up, acceleration and linearity features.
3.4 With 2 running modes (Racing mode and Forward/Backward mode).
3.5 With 4 steps of maximum reverse force adjustment.
3.6 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
3.7 With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".
3.8 Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
3.9 With 8 steps of timing adjustment to get the best compatibility with various of motors.
3.10
Easily program with only one button and compatible with pocket-sized program card.
3.11 Motor uses top quality materials:
● Aluminium shell (case)
● High quality magnets
● Copper wires of high temperature endurance
● Good quality bearings.
3.12 Dustproof design for the motor.

3 Programmable Items

Specifications:
1 Specification of The ESC
1.1 Output:
● eZRun-18A-SL: Continuous current 18A, burst current 50A.

1.2 Input: 4-9 cells NiMH/NiCd or 2-3 cells LiPo.
1.3 BEC Output:
● eZRun-18A-SL: 6V/1A
1.4 Resistance:
● eZRun-18A-SL: 0.01 Ohm
1.5 Motor Supported: Sensorless Brushless motor
1.6 Suitable Brushless Motor: >=12T (Size: 2030)
1.7 Suitable Car: 1/18 scale car for portful race
1.8 Size:
● eZRun-18A-SL: 31.5mm(L) * 24mm(W) * 15mm(H)
1.9 Weight: (Without wires)
● eZRun-18A-SL: 19g

Motor Specs:
Top quality materials:
Aluminium shell (case)
High quality magnets
Copper wires of high temperature endurance
Good quality bearings
Dustproof design.
Low price but good quality.
Model:18T/SL
KV : 5200
Diameter(mm) : 20.0
Length(mm Without Shaft):30
Shaft(mm):2.0
Shaft Length(mm):10
Includes/Requires:
Includes:
1 x ESC
1 x 18T 5200KV brushless motor
1 x program card for ESC
1 x Instruction manual (English)

* The speed controller and program card in the combo are V2 since 29/06/2009.
