| SKU | EMAX-50HZ |
|---|---|
| Brand | EMAX |
| Added | 2018/03/07 |
| Updated | 2018/03/07 |
Specifications:

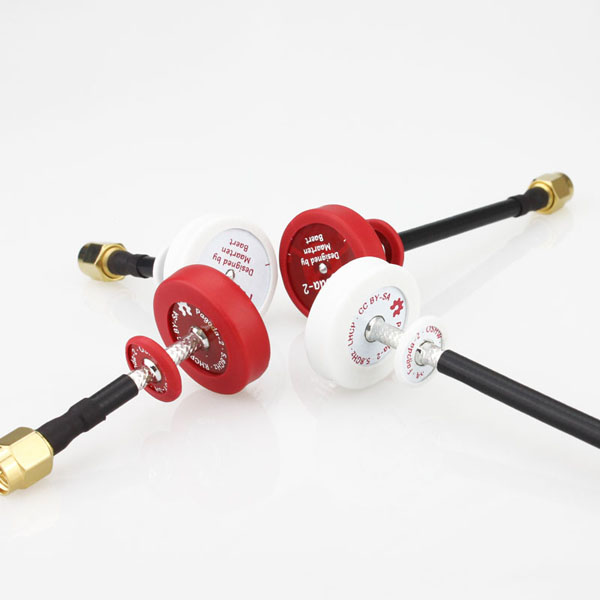

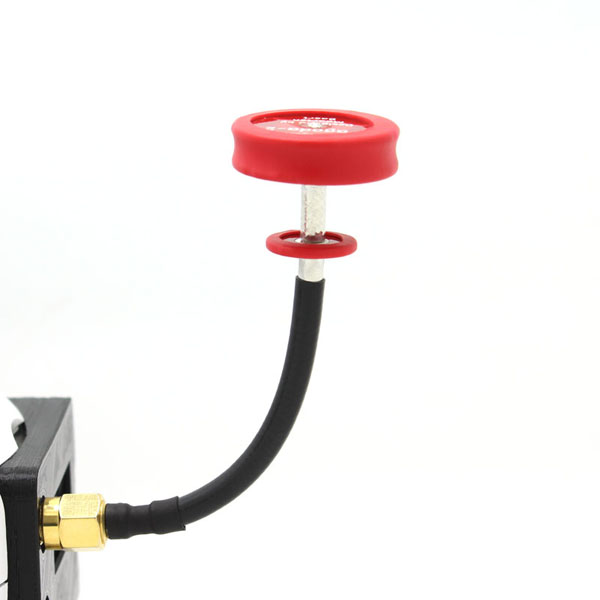

EMAX 5.8G Pagoda II RHCP FPV TX/RX Antennas SMA - 50mm
Brand: Emax
Item Name: Pagoda 2 Antenna
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Gain : 2dBi
Radiation efficiency: 95%
Polarization: RHCP(Red)
Connector: SMA, Plug Refer to here for connector type diagram
Length: 50mm
Weight 8g
Includes/Requires:
Included :2 X 50mm Pagoda 2 Antennas
(a pair of same length)
