| SKU | P4-ADV |
|---|---|
| Brand | DJI |
| Added | 2017/04/24 |
| Updated | 2017/04/24 |
Features:
Specifications:

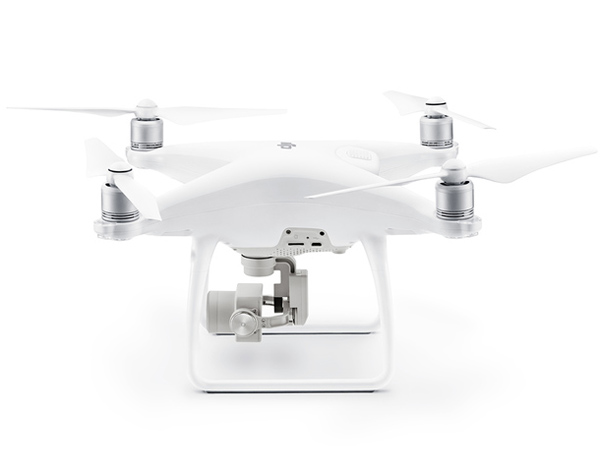

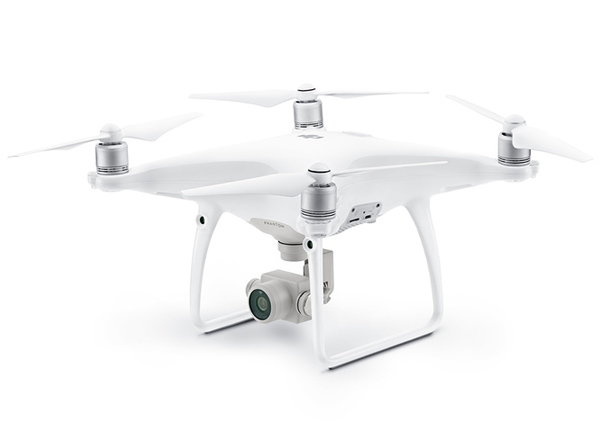

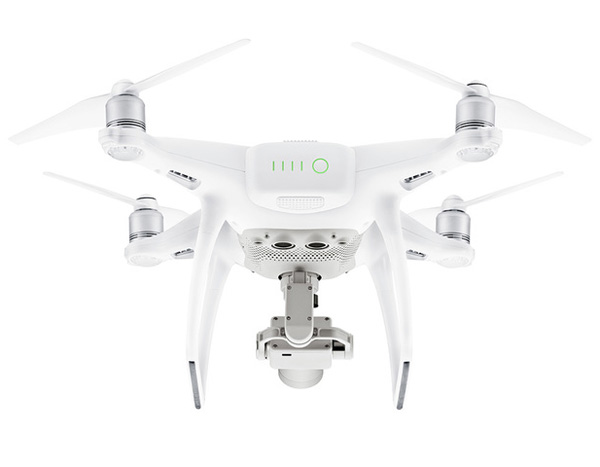

DJI Phantom 4 Advanced Quadcopter Drone
AIRCRAFT
| Weight (Battery & Propellers Included) | 1368 g |
|---|---|
| Diagonal Size (Propellers Excluded) | 350 mm |
| Max Ascent Speed | S-mode: 6 m/s P-mode:5 m/s |
| Max Descent Speed | S-mode:4 m/s P-mode:3 m/s |
| Max Speed | S-mode: 45 mph (72 kph) A-mode: 36 mph (58 kph) P-mode: 31 mph (50 kph) |
| Max Tilt Angle | S-mode:42° A-mode:35° P-mode:25° |
| Max Angular Speed | S-mode: 250°/s A-mode: 150°/s |
| Max Service Ceiling Above Sea Level | 19685 feet (6000 m) |
| Max Wind Speed Resistance | 10 m/s |
| Max Flight Time | Approx. 30 minutes |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Satellite Positioning Systems | GPS/GLONASS |
| Hover Accuracy Range | Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS Positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS Positioning) |
VISION SYSTEM
| Vision System | Forward Vision System Downward Vision System |
|---|---|
| Velocity Range | ≤31 mph (50 kph) at 6.6 ft (2 m) above ground |
| Altitude Range | 0 - 33 feet (0 - 10 m) |
| Operating Range | 0 - 33 feet (0 - 10 m) |
| Obstacle Sensory Range | 2 - 98 feet (0.7 - 30 m) |
| FOV | Forward: 60°(Horizontal), ±27°(Vertical) Downward: 70°(Front and Rear), 50°(Left and Right) |
| Measuring Frequency | Forward: 10 Hz Downward: 20 Hz |
| Operating Environment | Surface with clear pattern and adequate lighting (lux>15) |

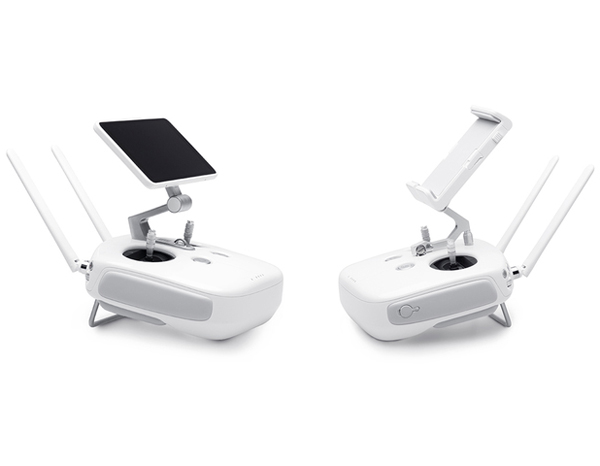

REMOTE CONTROLLER
| Operating Frequency | 2.400 - 2.483 GHz |
|---|---|
| Max Transmission Distance | 2.400 - 2.483 GHz (Unobstructed, free of interference) FCC: 4.3 mi (7 km) CE: 2.2 mi (3.5 km) SRRC: 2.5 mi (4 km) |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Battery | 6000 mAh LiPo 2S |
| Transmitter Power (EIRP) | 2.400 - 2.483 GHz FCC: 26 dBm CE: 17 dBm SRRC: 20 dBm |
| Operating Current/Voltage | 1.2 A@7.4 V |
| Video Output Port | GL300E: HDMI GL300C: USB |
| Mobile Device Holder | GL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM) GL300C: Tablets and smart phones |
INTELLIGENT FLIGHT BATTERY
| Capacity | 5870 mAh |
|---|---|
| Voltage | 15.2 V |
| Battery Type | LiPo 4S |
| Energy | 89.2 Wh |
| Net Weight | 468 g |
| Charging Temperature Range | 41° to 104°F (5° to 40°C) |
| Max Charging Power | 100 W |
GIMBAL
| Stabilization | 3-axis (pitch, roll, yaw) |
|---|---|
| Controllable Range | Pitch: -90° to +30° |
| Max Controllable Angular Speed | Pitch: 90°/s |
| Angular Control Accuracy | ±0.02° |
CAMERA
| Sensor | 1’’ CMOS Effective pixels: 20M |
|---|---|
| Lens | FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞ |
| ISO Range | Video: 100 - 3200 (Auto) 100 - 6400 (Manual) Photo: 100 - 3200 (Auto) 100- 12800 (Manual) |
| Mechanical Shutter Speed | 8 - 1/2000 s |
| Electronic Shutter Speed | 8 - 1/8000 s |
| Image Size | 3:2 Aspect Ratio: 5472 × 3648 4:3 Aspect Ratio: 4864 × 3648 16:9 Aspect Ratio: 5472 × 3078 |
| PIV Image Size | 4096×2160(4096×2160 24/25/30/48/50p) 3840×2160(3840×2160 24/25/30/48/50/60p) 2720×1530(2720×1530 24/25/30/48/50/60p) 1920×1080(1920×1080 24/25/30/48/50/60/120p) 1280×720(1280×720 24/25/30/48/50/60/120p) |
| Still Photography Modes | Single Shot Burst Shooting: 3/5/7/10/14 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias Interval: 2/3/5/7/10/15/20/30/60 s |
| Video Recording Modes | H.265 C4K:4096×2160 24/25/30p @100Mbps 4K:3840×2160 24/25/30p @100Mbps 2.7K:2720×1530 24/25/30p @65Mbps 2.7K:2720×1530 48/50/60p @80Mbps FHD:1920×1080 24/25/30p @50Mbps FHD:1920×1080 48/50/60p @65Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @25Mbps HD:1280×720 48/50/60p @35Mbps HD:1280×720 120p @60Mbps H.264 C4K:4096×2160 24/25/30/48/50/60p @100Mbps 4K:3840×2160 24/25/30/48/50/60p @100Mbps 2.7K:2720×1530 24/25/30p @80Mbps 2.7K:2720×1530 48/50/60p @100Mbps FHD:1920×1080 24/25/30p @60Mbps FHD:1920×1080 48/50/60 @80Mbps FHD:1920×1080 120p @100Mbps HD:1280×720 24/25/30p @30Mbps HD:1280×720 48/50/60p @45Mbps HD:1280×720 120p @80Mbps |
| Max Video Bitrate | 100 Mbps |
| Supported File Systems | FAT32 (≤32 GB); exFAT (>32 GB) |
| Photo | JPEG, DNG (RAW), JPEG + DNG |
| Video | MP4/MOV (AVC/H.264; HEVC/H.265) |
| Supported SD Cards | Micro SD Max Capacity: 128GB Write speed ≥15MB/s, Class 10 or UHS-1 rating required |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
CHARGER
| Voltage | 17.5V |
|---|---|
| Rated Power | 100 W |
APP / LIVE VIEW
| Mobile App | DJI GO 4 |
|---|---|
| Live View Working Frequency | 2.4 GHz ISM |
| Live View Quality | 720P @ 30fps |
| Latency | Phantom 4 Advanced: 220 ms (depending on conditions and mobile device) Phantom 4 Advanced +：160 - 180 ms |
| Required Operating Systems | iOS 9.0 or later Android 4.4.0 or later |
| Recommended Devices | iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung S7 edge, Samsung S7, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Samsung tabs 705c, Ascend Mate 9, Ascend Mate 7, Huawei Honor 8, Huawei P8 Max, Vivo X7, Xiaomi 5, MI 3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, LG V20, Sony Xperia Z3, Smartisan T1. *Support for additional devices available as testing and development continues. |
Includes/Requires:
