Electric Speed Control (ESC) Brushless Speed Control (BL ESC) - Air/ Helis
    Electronic Speed Controller (ESC)

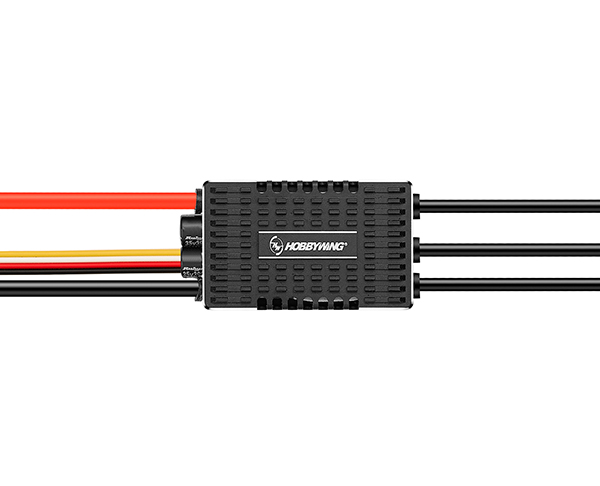

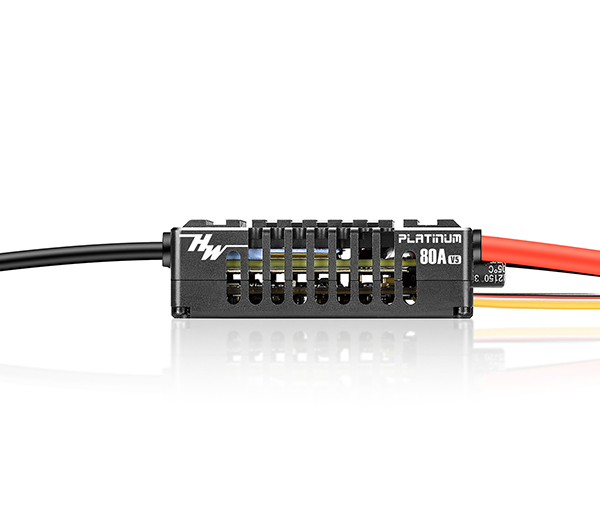

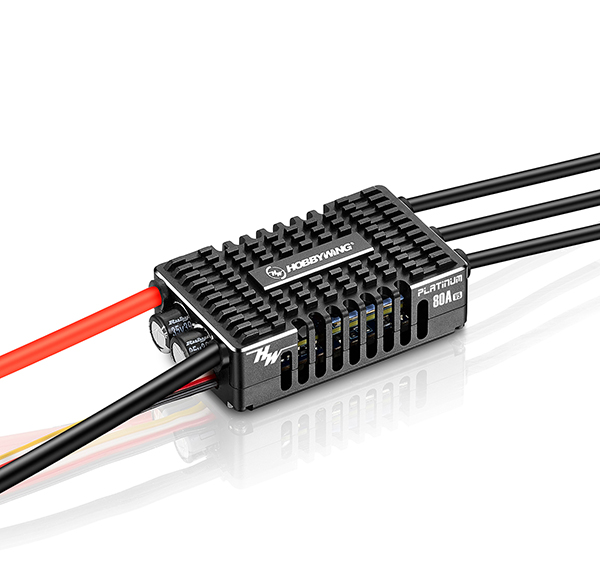

    Hobbywing Platinum 80A Speed Control V5
    0P0105070500
    Price(USD):$60.17     In stock
    Price(USD):Member Price:$60.17     In stock Sign in for member price
    Price(USD):Buy:$60.17     In stock
    Add To Cart     Add To Wish List
    SKU PLT80AV5
    SKUBrand PLT80AV5HOBBYWING
    SKUAdded PLT80AV52024/08/06
    SKUUpdated PLT80AV52024/08/06
    SKU
    SKU

    Tags: Hobbywing_Platinum_80A_Speed_Control_V5

    Features:


    Specifications:

    Hobbywing Platinum 80A Speed Control V5


    Specifications
    Cont./Peak Current80A/120A
    Input Voltage3-8S Lipo
    BEC OutputSwitch Mode：5-12V & Cont. 8A，Peak 20A
    Wires & Connectors
    Input WiresRed-12AWG-100mm*1/Black-12AWG-100mm*1
    Output WiresBlack-14AWG-100mm*3
    Input ConnectorsNo
    Output Connecotors3.5mm Gold Connectors (Female)
    ESC Programing via
    TransmitterNot Support
    LED Program CardNot Support
    LED Program BoxNot Support
    LCD Program BoxSupported
    OTA ProgrammerSupported
    Program PortSeparate Program Port
    Firmware
    Firmware UpgradeSupported
    Telemetry Function
     Mikado VBar；Futaba S.Bus2；etc.
    Size & Weight
    Size60.5*33*17.6mm (without fan)
    Weight77.5g (with wires, no fan)
    Application scope
     325-420 class electric helicopter (main blade length 325-420mm),or fixed-wing

    Includes/Requires:

    Includes:
    1 x  Hobbywing Platinum 80A Speed Control V5 ESC
