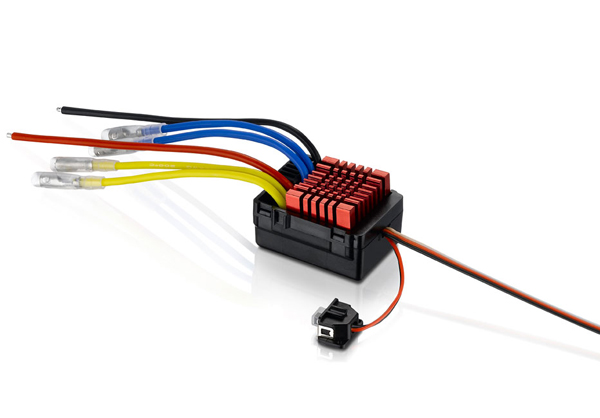

Hobbywing QuicRun 0880-Dual-Brushed 60A Waterproofing ESC for Cars

SKU	QR-0880
Brand	HOBBYWING
Added	2021/10/23
Updated	2021/10/23

Features:

Specifications:

Hobbywing QuicRun 0880-Dual-Brushed 60A Waterproofing ESC for Cars

Product Name

QuicRun WP 880 Dual Brushed

Product Number

30120301

Type

Scale

1/10th&1/8th

Brushed/Brushless

Brushed

Sensored/Sensorless

Waterproof

Specifications

Cont./Peak Current

80A/400A

Input Voltage

2-4S LiPo/5-12 Cell NiMH

BEC Output

6V@4A (Switch-mode)

Wires & Connectors

Input Wires

Red-16AWG-150mmx1 / Black-16AWG-150mmx1

Output Wires

Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2

Input Connectors

Output Connectors

4.0 Bullet Connectors (Female)

(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

SET Button on ESC

Not Supported

LED Program Box

Supported

LCD Program Box

Not Supported

WiFi Module

Not Supported

OTA Programmer

Not Supported

Program Port

Separate Port

Firmware

Firmware Upgrade

Not Supported

Size & Weight

Size

45.9X34.7X26.5mm

Weight

75g

Applications

Motors

Brushed Motor（540/550/775 size motors）

Vehicles

Various 1/10th & 1/8th Vehicles

KV Rating/T Count

Brushed Motor Limit with 2S LiPo/6S NiMH: ≥12T or RPM<30000@7.4V (540/550 size motors)
Brushed Motor Limit with 3S LiPo/9S NiMH: ≥18T or RPM<20000@7.4V (540/550 size motors)
Brushed Motor Limit with 4S LiPo/12S NiMH: ≥24T or RPM<15000@7.4V (540/550 size motors)

Includes/Requires:

Includes:
1 x ESC QuicRun WP 880 Dual Brushed
