Electric Speed Control (ESC) Brushed Speed Control (ESC)
    Hobbywing QuicRun WP-1060-Brushed-SBEC 60A Waterproofing ESC for Cars
    SKU QR-1060
    Brand HOBBYWING
    Added 2021/10/23
    Updated 2021/10/23

    Tags: Hobbywing_QuicRun_WP-1060-Brushed-SBEC_60A_Waterproofing_ESC_for_Cars

    Features:


    Specifications:

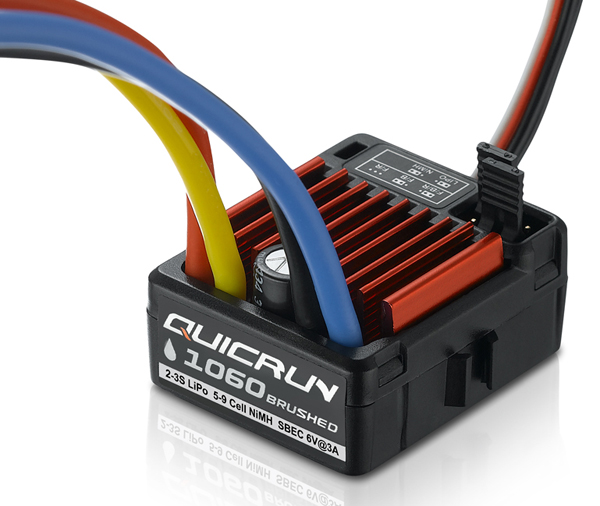

    Hobbywing QuicRun WP-1060-Brushed-SBEC 60A Waterproofing ESC for Cars


    Product Name

    QuicRun WP 1060 Brushed

    Product Number

    30120200

    Type

    Scale

    1/10th

    Brushed/Brushless

    Brushed

    Sensored/Sensorless

    -

    Waterproof

    WP

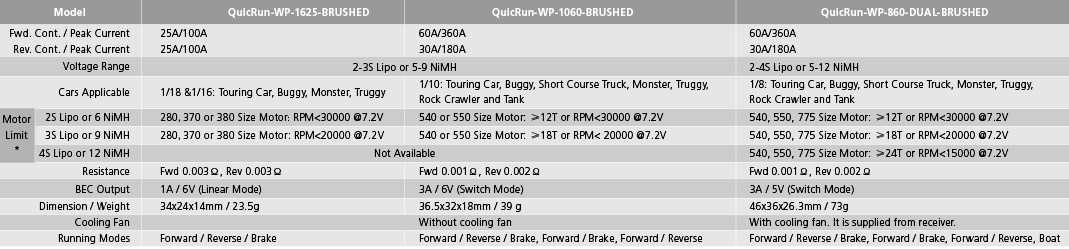

    Specifications

    Cont./Peak Current

    60A/360A

    Input

    2-3S LiPo/6-9 Cells NiMH

    BEC Output

    Switch Mode:6V/3A

    Wires & Connectors

    Input Wires

    Red-16AWG-100mm*1/Black-16AWG-100mm*1

    Output Wires

    B lue-16AWG-100mm*1/Yellow-16AWG-100mm*1

    Input Connectors

    Big-sized TAMIYA Connector

    Output Connecotors

    4.0 Bullet Connectors (Female)

    (Note: All the wire length above is the original length not the length you see from the outside.)

    Fan

    Size

    No

    Voltage Range

    No

    Powered by

    No

    ESC Programing via

    SET Button on ESC

    Not Supported

    LED Program Box

    Not Supported

    LCD Program Box

    Not Supported

    WiFi Module

    Not Supported

    OTA Programmer

    Not Supported

    Program Port

    Jumper Cap

    Firmware

    Firmware Upgrade

    Not Supported

    Size & Weight

    Size

    36.5x32.0x18.0mm

    Weight

    39g

    Applications

    Motors

    Brushed Motors

    Vehicles

    1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

    KV Rating/T Count

    2S LiPo: T≥12T
    3S LiPo: T≥18T
    (540/550 Size Motors)

    Programmable Items

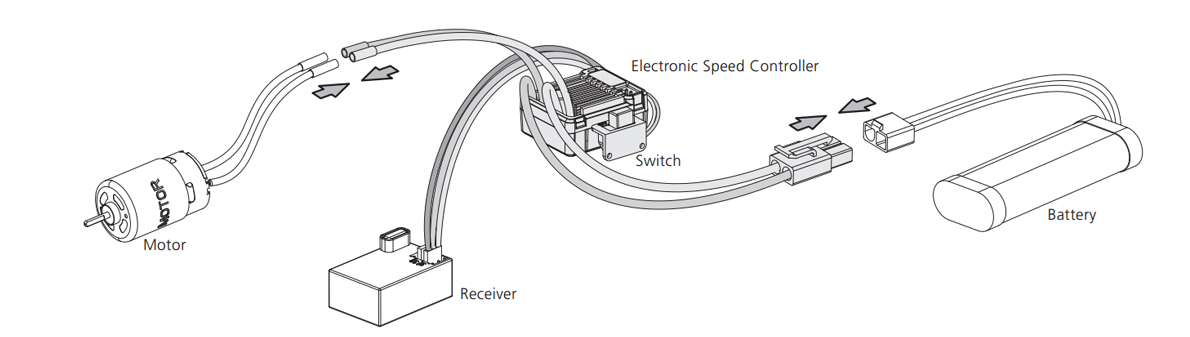

    Installation & Connection



    Includes/Requires:

    Includes:
    1 x ESC QuicRun WP 1625 Brushed
