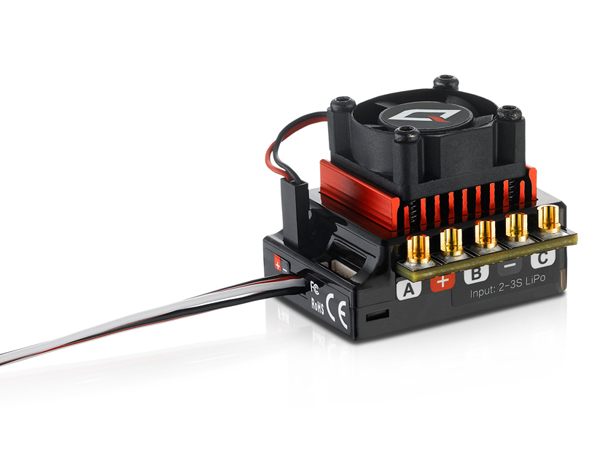

Hobbywing QuicRun WP-10BL60-SENSORED 60A Waterproofing Brushless ESC for Cars
    SKU QR10BL60
    Brand HOBBYWING
    Added 2021/10/23
    Updated 2021/10/23

    Tags: Hobbywing_QuicRun_WP-10BL60-SENSORED_60A_Waterproofing_Brushless_ESC_for_Cars

    Features:


    Specifications:

    Hobbywing QuicRun WP-10BL60-SENSORED 60A Waterproofing Brushless ESC for Cars


    Specifications

    Product Name



    QuicRun 10BL60 Sensored

    QuicRun 10BL120 Sensored

    Product Number



    30108000

    30125000

    Type

    Scale

    1/10th

    1/10th

    Brushed/Brushless

    BL

    BL

    Sensored/Sensorless

    SD

    SD

    Waterproof

    No

    No

    Specifications

    Cont./Peak Current

    60A/380A

    120A/760A

    Input

    2-3S LiPo/6-9 Cell NiMH

    2-3S Lipo/5-9 Cell NiMH

    BEC Output

    Linear Mode:6V/2A

    Linear Mode:6V@3A

    Wires & Connectors

    Input Wires

    Red-12AWG-200mm*1/Black-12AWG-200mm*1

    Red-12AWG-200mm*1/Black-12AWG-200mm*1

    Output Wires

    Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1

    Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1

    Input Connectors

    No

    No

    Output Connecotors

    No

    No

    (Note: All the wire length above is the original length not the length you see from the outside.)

    Fan

    Size

    25.0x25.0x10.0mm

    25x25x10mm

    Voltage Range

    5-8.4V

    5-8.4V

    Powered by

    Powered by BEC

    (Powered by the Battery)

    ESC Programing via

    SET Button on ESC

    Supported

    Supported

    LED Program Box

    Supported

    Supported

    LCD Program Box

    Not Supported

    Not Supported

    WiFi Module

    Not Supported

    Not Supported

    OTA Programmer

    Not Supported

    Not Supported

    Program Port

    Program/Throttle Wire

    Program/Throttle Wire

    Firmware

    Firmware Upgrade

    Not Supported

    Not Supported

    Size & Weight

    Size

    33x28x31.5mm (w/ Fan)

    33x28x31.5mm (w/ Fan)

    Weight

    59g

    105g105g (w/ Wires)

    Applications

    Motors

    SL BL Motors/SD BL Motors

    SL BL Motors/SD BL Motors

    Vehicles

    1/10thTouring Cars/Buggies/Drift Cars/F1

    1/10thTouring Cars/Buggies/Drift Cars/F1

    KV Rating/T Count

    22S LiPo: 1/10th Touring Cars≥8.5T, 1/10th Buggies≥13.5T 3S LiPo: 1/10th Touring Cars≥13.5T, 1/10th Buggies≥17.5T (3650 Motors)

    2SLipo: 1/10thTouring Cars≥4.5T;1/10thBuggies≥5.5T
    3SLipo: 1/10thTouring Cars≥10.5T;1/10thBuggies≥13.5T

    Programmable Items


    Installation & Connection




    Includes/Requires:

    Includes:
    1 x ESC  QuicRun WP-10BL60-SENSORED
